                                        Spring 2024 Volume 70 Number 1

FROM the EDITOR

This issue of Plant Science Bulletin is our second special issue highlighting the

relationship between science and art. There was such a great response to the

initial call for papers on this topic that it could not be constrained to only one

issue. I am once again delighted to thank the team of guest editors, Patricia Chan,

Rosemary Glos, Ashley Hamersma, Kasey Pham, and Nicolette Sipperly, who put

this fantastic series together and the talented contributors who shared their work.

In this issue you will also find important news from the Publications Team. I will

be stepping down as Editor-in-Chief of Plant Science Bulletin at the end of 2024

when my term ends, and we are in the middle of a search for the next editor.  In the

meantime, I’m excited about the features we have lined up for 2024.

Sincerely,

background image

PSB 70 (1) 2024

3

3

TABLE OF CONTENTS

SPECIAL SECTION:  Art in the Botanical Sciences:  Past, Present, and Future

 ................5

Wunderkammer: Boundaryless Plants

 ...........................................................................................................6

Scientific Knowledge, Artistic Creativity and Pedagogical Reform:

            The Botanical Wall Chart ......................................................................................................................11

Illuminations: Past, Present, and Future of Fern Research .............................................................15

The Four Noble Ones: Significant Cultural Elements Bridging Chinese Painting

           and Botanical Sciences ..........................................................................................................................21

Art Is Not Only About Flowers: Ferns as a Source of Inspiration for Artists .........................29

The Artist-Scientist Symbiosis: A Dialogue .............................................................................................32

Attempts at Convergence of Science and Art That Blossomed Amidst Korea’s

           Tragic History ..............................................................................................................................................38

How Scientific Illustration Impacts Presentation and Understanding of

           Plant Adaptations at Multiple Scales  ............................................................................................44

An Abstract Scientist: Embracing Art as a Tool for Science Education ..................................50

Three Plants, Three Practices:

Botanical Allies and the Creative Process ................................................................................................52

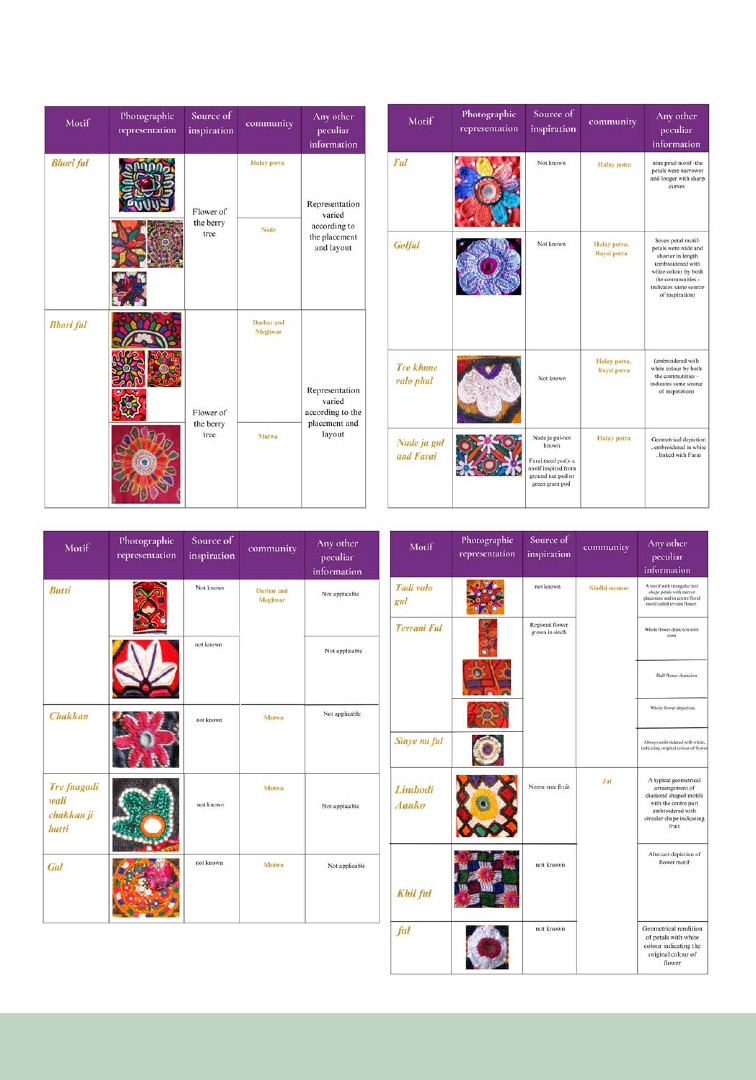

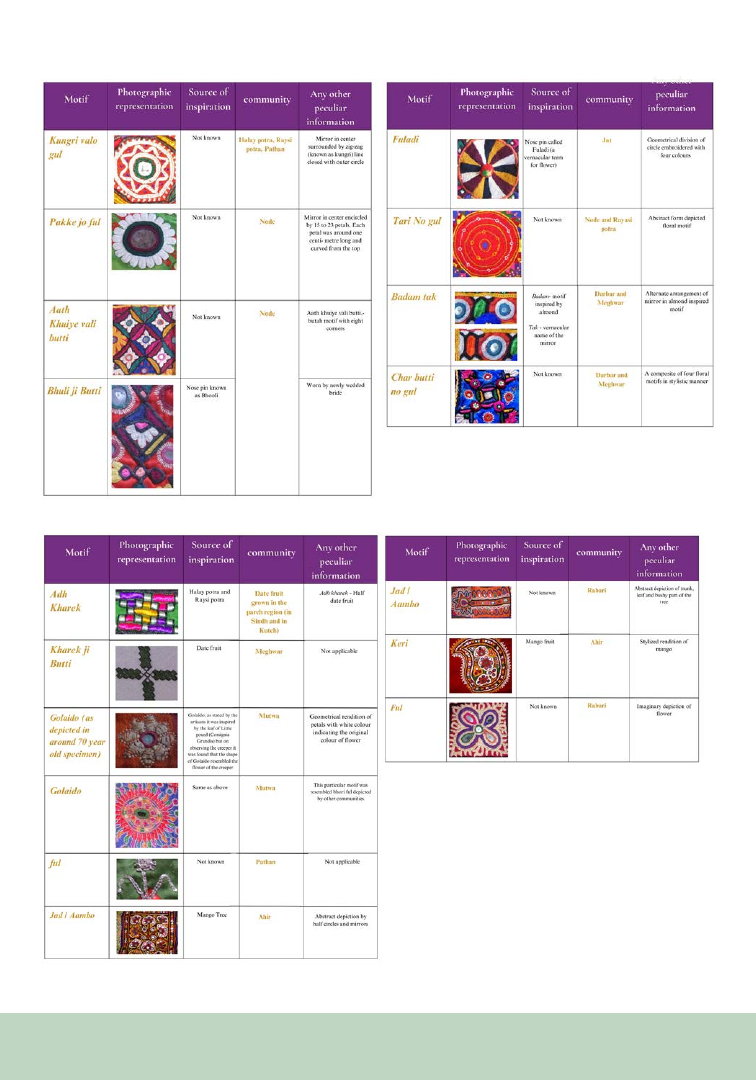

Plant Motifs Depicted in Kutch Embroideries and Its Integration in Sci-Art Collaborative

           Educational Models in the Indian Educational System ........................................................55

Art-Making and Plant Biology as Synergistic Learning Tools: Reflections on a

           Sci-Art Undergraduate Course About Climate Change ......................................................63

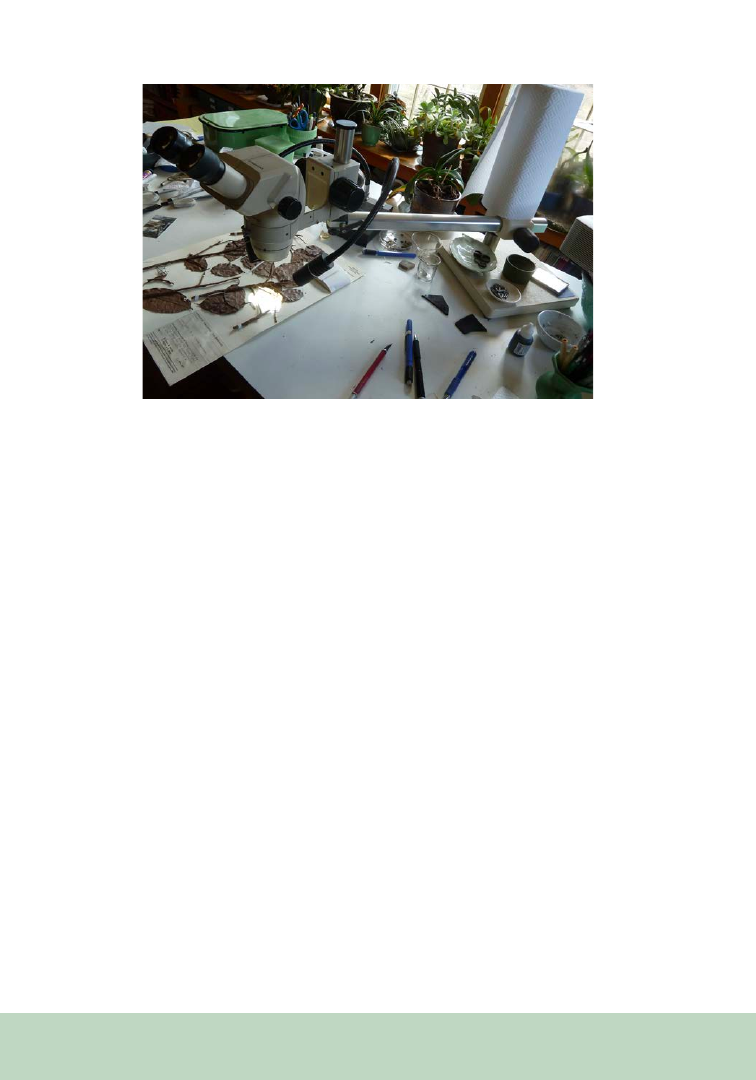

The Botanist and the Illustrator: A Long-Standing Partnership ...................................................65

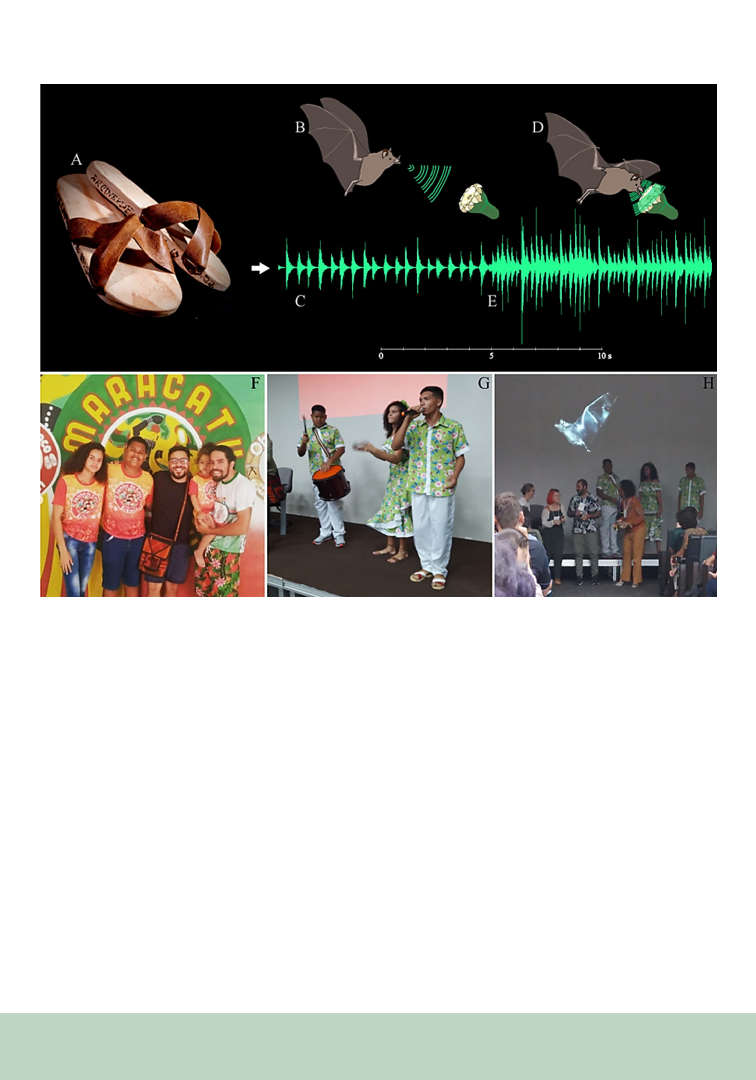

Floral Acoustic Signaling in Bat Pollination Demonstrated by Percussive

           Folk Music from Northeast Brazil .....................................................................................................68

Cross-Pollination: Building a Co-Taught Course to Examine Art and

           Sex Through the Lens of Botany ......................................................................................................73

PLANT SCIENCE BULLETIN:  SPRING 2024 ..................................................................................

76

SOCIETY  NEWS

Search for new Editors-in-Chief for

AJB

 and

PSB

 .............................................................................. 76

AJB

 and

PSB

 Open Call for Associate Editors ...................................................................................... 76

BSA Leadership Responds to News of Duke University’s Herbarium Closure ................... 78

Botany 2024 Speakers, Field Trips, Workshops and More ............................................................. 80

MEMBERSHIP NEWS

#PlantJoy Campaign ...........................................................................................................................................82

Botany360 Updates ...............................................................................................................................................82

BSA Spotlight Series ............................................................................................................................................84

BSA Professional Highlight Series ................................................................................................................85

BSA Legacy Society .............................................................................................................................................86

background image

S

tart Planning for

          Register Now!

www.botanyconference.org

2023 Gift Membership Drive Winner ...........................................................................................................87

New BSA Sponsorship Opportunities .........................................................................................................87

SCIENCE EDUCATION

 Seeking Flora/Field Guide Recommendations to Update BSA’s State-by-State

           Botanical Resource Page  ...................................................................................................................89

ROOT & SHOOT RCN Developing a New Culturally Responsive Mentoring

           Certification Program to Pilot in Fall 2024 ..................................................................................90

PlantingScience Spring 2024 Session Update ......................................................................................91

STUDENT SECTION

Botany360 Webinar: How to Be a Successful BSA Student Representative .......................93

Roundup of Student Opportunities ...............................................................................................................93

Papers to Read for Future Leaders ..............................................................................................................94

IN MEMORIAM

Nels Ronald Lersten (1932–2023) ...............................................................................................................97

BOOK REVIEWS

 ..........................................................................................................................................................100

background image

5

From the PSB Special Issue on Art in the Botanical Sciences

SPECIAL SECTION

Art in the Botanical Sciences:

Past, Present, and Future

Greetings,

We are thrilled to share the second issue in the special anthology, Art and the Botanical Sciences: Past,

Present, and Future. The pieces in this issue continue the conversation started in our Fall 2023 issue:

celebrating and re-examining the historical connections between art and botany, showcasing the varied

experiences of contemporary artist-scientists, and presenting visions for future integrations of art and

the botanical sciences. If you missed the first issue, we highly recommend perusing it (at https://

botany.org/userdata/IssueArchive/issues/originalfile/WebPSB_69_3_2023.pdf) for a vibrant selection

of articles that explore the Venn diagram that is botany, creativity, and art.
In this issue, you will continue to learn about the role of botanical art across histories and traditions,

fruitful contemporary collaborations between artists and botanists, innovative means of merging art

and science in the classroom, and much more.
We are deeply thankful to the authors and reviewers who made this anthology possible. Special thanks

to the PSB editorial staff for inviting us to craft these special issues, trusting us to try something new,

and formatting an unprecedented number of manuscripts (!).  We’d also like to thank in particular the

artists who graciously allowed us to use their work for the covers of these issues. Clarissa Rodriguez

created the embroidery piece used for the cover of the first issue, and Sayeh Dastgheib-Beheshti created

the illustration used for the cover of this issue. This is the last issue formally dedicated to this theme, but

we anticipate and encourage future submissions to the Plant Science Bulletin that explore these topics.

If these issues have proven anything, it is that there is huge enthusiasm, interest, and fresh ideas in the

sci-art space. Let’s continue to maintain that energy into the future! We would especially love to hear

that these issues have given people new ideas to try or new collaborators with whom to work. Lastly, if

you see us around (maybe at Botany 2024 or IBC 2024?), please say hi! We love to talk all things science

and art.
Until then, enjoy this issue!

The SciArt Collective

Nicolette Sipperly, Stony Brook University • Rosemary Glos, University of Michigan

Kasey Pham, University of Florida • Patricia Chan, University of Wisconsin-Madison

Ashley Hamersma, University of Florida

background image

6

From the PSB Special Issue on Art in the Botanical Sciences

Wunderkammer:

Boundaryless Plants

Sandra L. Talbot

Far Northwestern Institute of Art and Science

Alaska Center for Conservation Science

University of Alaska

 Anchorage Alaska  99508

Email: akartscience@gmail.com

To the medieval mind, the ‘Order

of Nature’ (Daston and Park, 1998)

was reflected in the ‘typical’ form

and function of natural phenomena.

Anything rupturing this order—the

novel, rare, capricious, ‘uncanny

sports,’ monstrous objects brought

back from distant lands—filled

Wunderkammers (cabinets of

curiosities), the precursors of herbaria

and natural history collections, and

evoked not only a sense of wonder, but

collective terror, or at least trepidation.

Collective terror of ‘uncanny sports’

still resides in some contemporary

minds, as evidenced by response to

fasciation in plants growing near the

Fukushima Daiichi Nuclear facility

in years following the 2011 disaster

(Fessenden, 2015).

In her exhibition Boundary Plants, Black

(2019) leveraged classically rendered botanical

illustrations of three species to illuminate how

Linnaeus’ taxonomic system obscures the physical

complexities of earth systems. The target species

included fasciated Chrysanthemum leucanthem

[sic](=Leucanthemum vulgare Lam.), the ox-eye

daisy, to illustrate how the varied and cumulative

cellular effects of the industrial age reveals the

permeability of  the ‘clean’ Linnean taxonomic

boundaries. However, the levels, frequencies,

and specific causes of ‘natural’ mutations in these

species are unclear; in addition to radiation,

causes include infection by pathogens, hormonal

disruption, and genetic mutations (Iliev and Kitin,

2011). Further, in previously glaciated northern

high latitudes, polyploidy levels and frequencies

increase (Brochmann et al., 2004), masking

cryptic diversity (Brochmann and Brysting, 2010)

and presenting another complexity that weakens

already permeable taxonomic boundaries.

The European native Leucanthemum vulgare

sensu stricto is a diploid (2n = 18) invasive in

North America, and it is closely related and

morphologically similar to the Eurasian tetraploid

(n = 36) L. ircutianum Turcz. (Stutz et al., 2018). In

fact, the taxonomy and associated nomenclature

of  Leucanthemum  remains unstable (Roskov

et al., 2018). Leucanthemum vulgare has been

globally introduced for ornamentation as well as

phytoremediation, and often escapes cultivation

and establishes viable populations that alter

indigenous plant communities.  Ploidy levels in

Alaska, where I live, have not yet been assayed, but

tetraploidy in L. vulgare is reported from various

background image

7

PSB 70 (1) 2024

locales in Canada (including British Columbia;

Mulligan 1958, 1968) and in Washington State.

In North America, tetraploid L. vulgare may

indeed be L. ircutianum, which has also been

introduced to North America but is apparently

less invasive (Stutz et al. 2018).  Via ploidy and

collateral changeable taxonomic nomenclature,

morphological variability, and invasiveness, L.

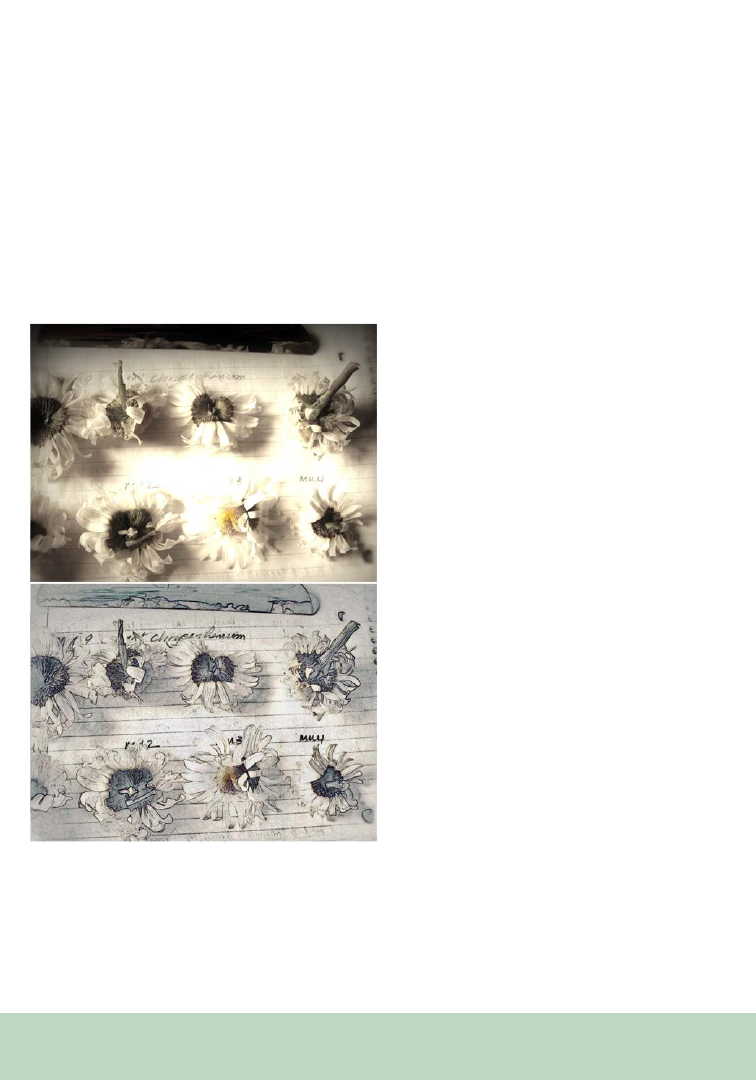

vulgare and other non-native plants (Figure 1)

have become “boundaryless plants” (Black, 2019,

p. 224).  They breach the boundaries of classical

Linnean nomenclature, which drew inspiration

from Plato’s ancient call to “carve nature at its

joints” (Plato, 1952, p. 265e); that is, the natural

world is divisible into objective, discoverable

categories. Invasive plants also breach the

ecological boundaries of long-established

indigenous plant communities.

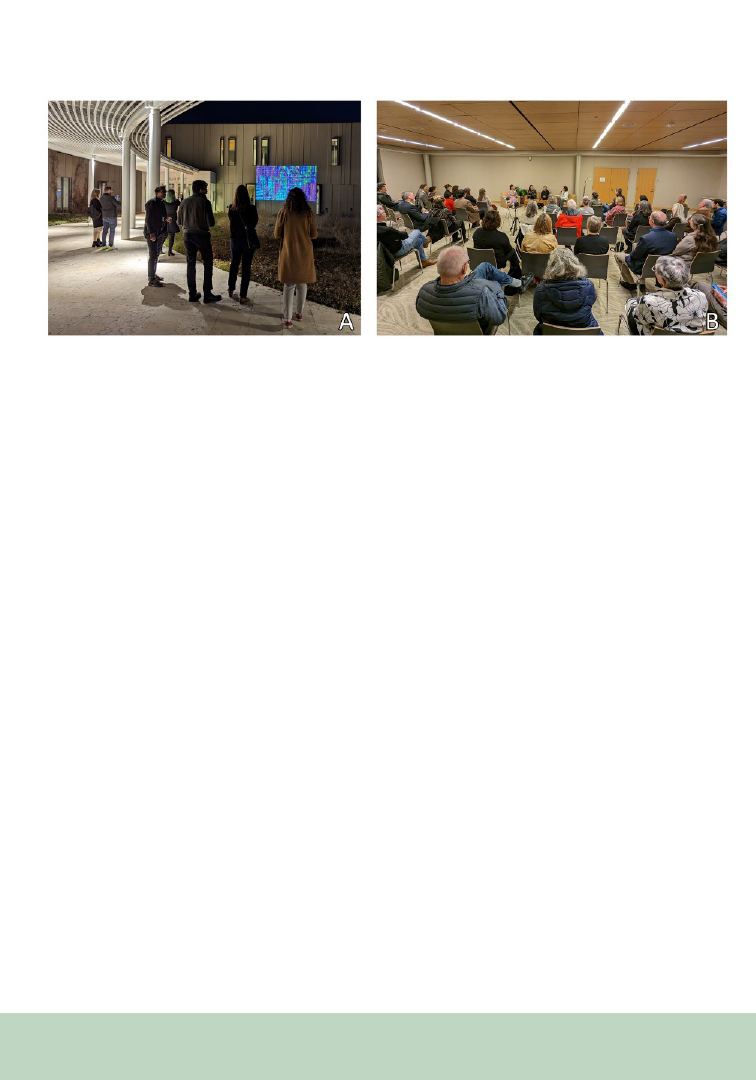

The SciArt exhibition Wunderkammer:

Boundaryless Plants (International Gallery

of Contemporary Art, Anchorage, Alaska,

November 2023) leveraged imagery of artifacts

collected during decades of floristic and plant

community research on the far-flung, remote

islands of the Aleutian Island Archipelago and

allied island groups, such as the Shumagin Islands

in southwestern Alaska.  The exhibition explored

issues surrounding instability in taxonomic

nomenclature, levels of ‘natural’ mutation,

community species replacement, and myriad

complexities in the invasive L. vulgare and other

plants introduced during military and ranching

activities. Highlighting the entwined history

between humans and these boundaryless plants

in Alaska, the exhibition used contemporary

botanical art to call attention to the burgeoning

communities of invasive plants in these remote

geographies, where the conservation focus has

been trained on invasive mammals. Thus, the

imagery exposes and examines what Aloi (2019)

referred to as “plant blindness…our cultural

inability to conceive plants beyond the prefixed

cultural schemata…which simultaneously reduces

them to resources or aesthetic objects” (p. xx).

While beautiful (Figure 1), these island invasives

are akin to those disturbing medieval ‘sports’ that

breach the boundaries of known taxonomies,

engendering the rupturing unknown that we have

unwittingly invited in.
Invasive species have traversed the threshold

between ‘introduced’ and a state wherein they

expand into and a novel (to them) environment,

and their ability to cross that threshold relies

not only on their particular inherent biological

characteristics, but also on the deliberate or

passive actions of humans. By definition, invasive

species are those initially introduced to novel

environments by humans. Nevertheless, there

is an argument that humans can (or should) be

considered invasive species (Zielinski, 2011).

Figure 1.  Artist: Sandra Talbot. But They Are So Beautiful (Crepis and Leucanthemum).  Archival ink printed on Strath-

more paper, 21 × 6.5 inches. 2023. Imagery from photographs of metal collected from the site, locale photographs, and

digitized field press collections of the invasive Crepis tectorum and Leucanthemum vulgare collected from the abandoned

NSGA military site, Adak, Aleutian Islands, Alaska.

background image

8

PSB 70 (1) 2024

Figure 2. Artist: Sandra Talbot. The Pleasure of Natural

Sports: Lusus naturae 3, Plot 9, View 1, ver. 2.  2023.  Digital

photograph of field notebook and specimen collection of fas-

ciated ox-eye daisies, sampled from Simeonof Island, Shuma-

gin Island group, Alaska. Top: archival ink printed on metal,

15.6 × 21.6 × 0.2 inches. Bottom: digital imagery showing a

schematic of the original photograph, generated on an iPad

using various applications to provide visual clarity of fascia-

tion less readable in the photograph.

Contemporary biologists largely view invasive

species with trepidation, and perhaps sometimes

not so differently from how the medieval mind

regarded ‘uncanny sports’ that ruptured the Order

of Nature (Figure 2). Referencing the Progressive

Era—the widespread period (1890s–1920s) of

social activism and political reform in the United

States that addressed issues emerging from

immigration, urbanization, industrialization,

and political corruption—historian Philip Pauly

(1996) writes that “attitudes towards foreign

pests merged with ethnic prejudices: the gypsy

moth and the oriental chestnut blight both took

on and contributed to characteristics ascribed

to their presumed human compatriots” (p. 54).

Pauly further states that “…attitudes about foreign

and native organisms were intimately linked…

to views on ‘alien’ and ‘native’ humans” (p. 70).

It is noteworthy that the common name or the

gypsy moth has recently changed to the spongy

moth (ESA, 2023), hopefully decoupling inherent

pejorative assessments and invasiveness.
Whether we view invasive species through

aesthetic, cultural, biological, ecological, or

evolutionary lenses, we judge them from within an

anthropocentric world paradigm. This perpetuates

a hierarchical view of non-native species that

displace others: invasive species are terrible and

we need to kill them, even though (depending

on our deep or recent ancestry) we share certain

characteristics with them. Notwithstanding

controversies emerging from our own invasive-

like characteristics, the history of invasive species is

entangled with that of human history; by tracking

the expansion of invasive species, we can track

the bounding footprints of the human saga. That

includes human footprints on even the remote

Aleutian Islands, targets of myriad accidental and

intentional introductions (Jones and Byrd, 1979;

Ebbert and Byrd, 2002).  Those introductions

commenced about 280 years ago, following the

1742 culmination of the ill-fated Bering Expedition

during which the southern coast of Alaska and

the Aleutian Island Archipelago and allied island

groups were ‘discovered’ (from western history’s

perspective), then described by the Expedition’s

naturalist Georg Wilhelm Steller.
Almost all the islands landed upon or sailed

past during the Bering Expedition have endured

negative ecological impacts associated with

military, cattle ranching, fox farming, and other

(western) human activities throughout the 19

th

and 20

th

 centuries, including the introduction of

non-native plants that have recently crossed that

boundary between introduced to invasive. For

example, following the removal of cattle between

background image

9

PSB 70 (1) 2024

1983 and 1985 from Simeonof Island, in the

Shumagin Islands, ox-eye daisies have spread

beyond the historical ranch house environs

and have become an integral, even dominant,

component of certain nearby plant communities.

A fairly high percentage of those ox-eye daisies

are fasciated, as documented using photography

and digital imagery (Figure 2). The cause of the

fasciation is unknown. Given a parallel to western

colonial expansion into Alaska, such invasive

plant species can be viewed as proxies for human

expansion and community disruption, and

imagery of these invasive plants can communicate

these concepts.
Scientists during the European Age of Discovery

were often competent to highly skilled artists, and

art provided a critical means to communicate that

Age’s scientific discoveries.  While a competent

writer whose penned journal provided the

majority of our knowledge of the geographically

vast and historically influential Bering Expedition,

Steller was not a skilled, or even competent,

artist, as he himself acknowledged (Stejneger,

1936). As a precondition of participation in the

Expedition (something he wanted very much),

Steller asked to be accompanied by a competent

artist (Stejneger, 1936). That demand, fulfilled,

recognized the enormous contribution of artists

to scientific expeditions (McAleer and Rigby,

2017), and to science as a whole, during eras prior

to the 19th-century invention of photography that

eventually rendered the competent artist–scientist

dispensable and contributed to the estrangement

of art from science. Wunderkammer: Boundaryless

Plants conflated art and science explorations of

multilayered and complicated, universal issues

played out in a little-known, remote geography.

It demonstrated that digital photography

and image-clarifying software apps on smart

phones and tablets can be used in real time by

contemporary scientists to creatively document

and communicate findings even on remote,

uninhabited islands (Figure 1). Nevertheless,

as suggested by Carlson (2017), while digital

imaging has profoundly expanded potentialities of

scientific research, some capabilities provided by

traditional illustration procedures may be lost due

to “distortions and visual limitations that single-

perspective (i.e., digital or photographic) imagery

produces…revert[ing] the visual representation of

data back to uninformed, surficial ‘snapshots’ of

incomplete objects” (p. 269).

References

Aloi, G.  2019.  About this book.  In: A. Giovanni [ed],

Why look at plants? The botanical emergence in con-

temporary art, xx-xxv.  Brill Rodopi, Boston, Massa-

chusetts, USA.
Black, S. 2019.  Boundary plants.  In: A. Giovanni

[ed.],  Why look at plants? The botanical emergence

in contemporary art, 221–224.  Brill Rodopi, Boston,

Massachusetts, USA.
Brochmann, C., and A. K. Brysting.  2010. The

Arctic – an evolutionary freezer?  Plant Ecology and

Diversity 1: 181–195.
Brochmann, C., A. K. Brysting, I.G. Alsos, L. Borgen,

H. H. Grundt, A.-C Scheen, and R. Elven.  2004. Poly-

ploidy in arctic plants.  Biological Journal of the Lin-

nean Society 82: 621–536.
Carlson, E. S.  2017.  Representation and structure con-

flict in the digital age: Reassessing archaeological il-

lustration and the use of Cubist techniques in depicting

images of the past.  Advances in Archeological Prac-

tice 2: 269-284.
Daston, L., and K. Park. 1998. Wonders and the Order

of Nature. Zone Books, New York, New York, USA.
Ebbert, S. E., and J. V. Byrd.  2002. Eradications of

invasive species to restore natural biological diversity

on Alaska Maritime National Wildlife Refuge. In: C.

R. Veitch, and M. N. Clout [eds],  Turning the tide:

The eradication of invasive species, 102–109. IUCN

SSC Invasive Species Specialist Group, IUCN, Gland,

Switzerland and Cambridge, UK.
ESA (Entomological Society of America). 2023.

Spongy Moth Transition Toolkit.  ESA website:

Spongy Moth Transition Toolkit | Entomological So-

ciety of America (entsoc.org) [accessed 1 September

2023].

background image

10

PSB 70 (1) 2024

Fessenden, M.  2015.  Don’t freak out over the

funky  flowers  that  appeared  near  Fukushima  [on-

line].  Smithsonian Magazine July 24, 2015. Website:

https://www.smithsonianmag.com/smart-news/dont-

freak-out-over-funky-flowers-appeared-near-fukushi-

ma-180956021/ [accessed 1 March 2023].
Iliev, I., and P. Kitin.  2011.  Origin, morphology, and

anatomy of fasciation in plants cultured in vivo and in

vitro.  Plant Growth Regulation 63: 115–129.
Jones, R. D., and J. V. Byrd. 1979. Interrelations be-

tween seabirds and introduced animals. In: J. C. Bar-

tonek and D. N. Nettleship [eds], Conservation of ma-

rine birds of northern North America, 221–226. U. S.

Department of Interior, Washington D.C., USA.
McAleer, J., and N. Rigby. 2017.  Captain Cook and

the Pacific: Art, exploration and empire.  Yale Univer-

sity Press, New Haven, Connecticut, USA.
Mulligan, G. A. 1958. Chromosome races in the Chry-

santhemum leucanthemum complex. Rhodora 60:

122–125.
Mulligan, G. A. 1968. Diploid and tetraploid chromo-

some races of Chrysanthemum leucanthemum L. s.l.

Naturaliste Canadien  95: 793–795.

Pauly, P. 1996.  The beauty and menace of the Japanese

cherry trees: Conflicting visions of American ecologi-

cal independence. Isis 87: 51–73.
Plato. 1952. Phaedrus. Cambridge University Press.

Cambridge, UK.
Roskov, Y. R., L. Abucay, T. Orrell, D. Nicolson, N.

Bailly, P. M. Kirk, T. Bourgoin, et al. [eds]. 2018.

Species 2000 & ITIS Catalogue of Life, 2018 Annual

Checklist, Naturalis, Leiden, the Netherlands.
Stejneger, L. 1936. Georg Wilhelm Steller: The pioneer

of Alaskan natural history. Harvard University Press,

Cambridge, Massachusetts, USA.
Stutz, S., P. Mraz, H. L. Hinz, H. Muller-Scharer, and

U. Schaffner. 2018. Biological invasion of oxeye daisy

(Leucanthemum vulgare) in North America:  Pre-adap-

tation, post-introduction evolution, or both?  PLoS One

13: e0190705.
Zielinski, S. 2011. Are humans an invasive species?

[online]. Smithsonian Magazine, January 31, 2011.

Website:  https://www.smithsonianmag.com/science-

nature/are-humans-an-invasive-species-42999965/

[accessed 15 March 2023].

background image

11

From the PSB Special Issue on Art in the Botanical Sciences

Karen L. Wellner

Chandler-Gilbert Community College

2626 E. Pecos Road

Chandler, AZ 85225

karen.wellner@cgc.edu

Scientific Knowledge, Artistic

Creativity and Pedagogical Reform:

The Botanical Wall Chart

Type the phrase “vintage botanical wallchart”

into your browser and a plethora of old-style,

poster-sized plant illustrations appear. A closer

look will reveal original botany wallcharts

from the late 1800s selling for around $1500.

Updated reprints from the 1960s command

anywhere from $200 to $600. Far more money

than one would have spent in 1969 when

Carolina Biological sold the same charts for

$5 (Carolina Biological Supply, 1969).
Regardless of their age, the wallcharts will

show use: nicked corners, folds, taped repairs,

and penciled notes around the edges. While

the resurgence of interest in wallcharts centers

on aesthetics, there is historical significance as

well, because the botany wallchart represents

an early blending of artistry, careful

examination of plant morphology and life

cycles, and teaching pedagogy.
Mainly designed and printed in Germany and

France, wallcharts typically measured 34 ×

45 inches. Wooden dowels were inserted in a

sleeve at the top and bottom of the chart and

from the top roller, heavy string was attached

to hang the wall chart. The instructor only

needed to supply a nail. Botanical illustrator

Heinrich Jung boasted that the size and quality

of his wallcharts were of such high grade that

all students could recognize his plants from

any seat in the classroom (Bucchi, 1998).
Wallcharts occupied a prominent position

as curriculum aids from 1820 to about 1920

(Bucchi, 1998). While many of them hung in

classrooms and laboratories, other wallcharts

helped popularize science in museums and

public lectures. As an alternative way to

view plants, W. Gardiner stated in his 1904

book detailing the Botanical Museum of the

University of Cambridge, “Wallcharts do much

to decorate and liven the whole collection,

background image

12

PSB 70 (1) 2024

which might otherwise stand in some danger

of being deadened and overweighted by the

presence of many dried specimens” (Gardiner,

1904).
German charts were highly valued. There

were few American-made wallcharts available

in the late 1800s, and even with differences

in plant species between the two countries,

American botany departments seemed quite

content with the German wallcharts, even if

they were only accompanied with pamphlets

written in a foreign language.
There are several reasons why botanical

wallcharts proved so popular. First, improved

printing techniques in the early 1800s resulted

in high-quality color wallcharts at affordable

prices. Germany became the market leader,

especially in the late 1800s (Van der Schueren,

2011).
Second, the expansion of European and

American education systems during the 1800s

led to more students in the biological sciences

and natural history. Although the number

of students grew, funds for microscopes,

textbooks, and laboratory materials did not.

Most botany departments could not afford

microscopes for each student, but they could

buy many different wallcharts for the price of

one good scope.
Third, with more students, visual aids became

an important teaching tool. Educational

specialists believed that students should

see and handle objects to better develop an

understanding of their world. Combining

wallcharts and illustrations with lectures was

considered more effective than passive learning

by lecture only. Even though wallcharts were

visual models and not real plants, education

departments (and publishers) strongly

advocated wall chart images to help with

laboratory work.
One of the more popular botany wallchart

series resulted from the collaborative work

of Heinrich Jung, Gottlieb von Koch,

and Friedrich Quentell (hereafter, J-K-Q

wallcharts). Von Koch (1849-1914) was a

natural historian, painter, assistant to artist

and evolutionist Ernst Haeckel, and finally a

biology professor in Darmstadt, Germany. His

work  with  Haeckel  undoubtedly  influenced

how von Koch drew plants as an ideal type

(Figure 1). Unlike many detailed plant

illustrations drawn by artists, plant drawings

for educational purposes were manipulated

to create an average view of the specimen

(Fletcher, 2017). The drawings removed

imperfections  and  simplified  tiny  anatomic

details. The result was a montage of flowering

plants with an aesthetic appeal (Laurent,

2016).
With von Koch as illustrator, and Quentell

and Jung acting as authors and colleagues,

the three created an impressive number of

botanical illustrations for their 1902 book,

Neuen Wandtafeln für den Unterricht in

der Naturgeschichte (New Wall Charts for

Teaching Natural History). The illustrations

were converted to large wallcharts by the

Formmann and Morian publishing house

in Darmstadt. Formmann and Morian went

out of business after World War II, and

Wilhelm and Marie Hagemann acquired the

publishing rights of the J-K-Q wallcharts. The

Hagemann Company in Düsseldorf updated

and refreshed the J-K-Q charts but kept them

stylistically true to the original wallcharts.

The newer editions were made available in the

1950s through the 1980s.

background image

13

PSB 70 (1) 2024

The J-K-Q wallcharts were unique due to von

Koch’s use of a black background, much like a

blackboard (wandtafel). Artistically, drawings

of large and colorful plants with spacing

between them provide contrast. Combining

spacing with a black background creates more

spatial depth, which makes it easier to see the

plants from a distance.
Wallcharts, however, were not without early

controversy. Naturalists were torn about the

purpose of wallcharts—were they simply

visuals that provided an aesthetic appeal or

was their purpose to help in the pursuit of

botany proper? During the early- to mid-

1800s, some believed that the eye was the

inlet to knowledge. With this view, botanical

wallcharts would help govern learning. Others

felt that the brain was the principal gatherer

of knowledge and could best be aided with

lectures.
Wallchart antagonists declared that charts,

while pleasant to look at, were designed for

superficial learning—too much visual pleasure

took the place of rational learning by reading

and thereby sparked no interest in botany as

a profession. Proponents of wallcharts argued

that the aim of visual materials was for

students to build their observation skills for

the scientific study of plants in the field and

laboratory. This was also the opinion of many

science promoters who gave public lectures

(Secord, 2002).
English botanist Edwin Lee claimed in the

Naturalist  in 1838 that potential naturalists

were more apt to be led to the path of science

by using attention-grabbing pictures (Lee,

1838). In response, naturalist Peter Rylands

argued that visuals of plants made students

too dependent on them for classification

and led to unscientific practice. Students,

he argued, should use written descriptions

that required knowledge about technical

plant anatomy terminology. Once mastering

this, good observation skills would follow

(Rylands, 1838).
More in tune with good teaching practices,

many botany instructors did not use wallcharts

to strictly establish a “botany by pictures”

course, but integrated illustrations with actual

specimens. In addition, many instructors

believed that mastering the technical terms

associated with plants was made easier with

Figure 1. Rye grass wall chart (Heinrich Jung, Gottlieb

von Koch, and Friedrich Quentell) showing large and

simplified plant drawings on one poster. Published by

Hagemann, Düsseldorf, Germany, 1960s. [Author’s per-

sonal collection / Photo by author]

background image

14

PSB 70 (1) 2024

wallcharts and other botany illustrations.

By the late 1800s, most science departments

placed pedagogical emphasis on visuals for

student success (Bucchi, 1998).
Over time, wallcharts gave way to lantern

slides, early versions of 35-mm acetate

slides. The slides consisted of hand-painted

images on a piece of large glass. The images

were projected on a screen with the use of a

magic lantern, the forerunner to the modern

slide projector. Wallcharts, though, did not

suddenly disappear. Wallcharts still held an

advantage in that they were less expensive than

slides. The German graphic arts workmanship

continued to produce highly scientific visuals,

and with many countries still recovering from

WWI, educational institutions were seriously

underfunded and stuck with their wallcharts.
Wallcharts also helped with laboratory

work for an obvious reason: since lantern

slide projection required a darkened room,

students had trouble taking notes and could

not review the slide at his or her own leisure

(Noé, 1928). Large charts allowed students to

compare what was seen in the microscope or

dissecting tray to the chart image in a room

filled with light.
American biological supply companies such as

A. J. Nystrom and Denoyer-Geppert continued

advertising J-K-Q charts in the 1950s and

1960s. A Denoyer-Geppert advertisement in

the American Biology Teacher in 1954 assured

teachers that updated J-K-Q botany wallcharts

were still available, with all charts providing

“outstanding combinations of beauty and

instructional effectiveness” (ABT, 1954). The

eventual demise for botany wallcharts was the

emergence of the overhead projector in the

1960s.

Today, wallcharts are collector’s items or still

languishing in storage cabinets, long forgotten

how they contributed to botany and the start

of  Anschauungsunterricht–teaching through

images.

References

ABT. 1954. Front Matter. The American Biology
Teacher
 16: 99–100.
Bucchi, M. 1998. Images of Science in the Classroom:

Wall Charts and Science Education 1850-1920. The
British Journal for the History of Science 31: 161-184.
Carolina Biological Supply. 1969. Biological Materi-

als 1969-1970. Carolina Biological Supply Company,
Burlington, NC.
Fletcher, N. 2017. Botany on the Prairies: Dr. Regi-

nald Buller’s Botanical Wall Charts at the University

of Manitoba. M.A. Thesis, University of Manitoba.
Gardiner, W. 1904. An Account of the Foundation and

Re-establishment of the Botanical Museum of the Uni-

versity of Cambridge. Cambridge, England.
Laurent, A. 2016. The Botanical Wall Chart: Art from

the Golden Age of Scientific Discovery. Octopus Pub-

lishing, London.
Lee, E. 1838. Observations on the popularity of natural

history. Naturalist 3: 115-123.
Noé, A. C. 1928. The use of charts in the natural sci-

ences. Science 67: 571-574.
Rylands, P. 1838. On the use and abuse of plates of

natural objects. Naturalist 4: 356-357.
Secord, A. 2002. Botany on a plate: Pleasure and the

power of pictures in promoting early nineteenth-centu-

ry scientific knowledge. Isis 93: 28-57.
Van der Schueren, K. 2011. The Art of Instruction:

Vintage Educational Charts from the 19th and 20th

Centuries, Chronicle Books, San Francisco.

background image

15

From the PSB Special Issue on Art in the Botanical Sciences



Dornith Doherty

Alejandra Vasco

Tiana F. Rehman

Ana Niño

 and



Kimberlie Sasan

2,3

1

 College of Visual Arts + Design, University of North Texas,

1155 Union Circle #305100, Denton, TX 76203, USA

2

 Botanical Research Institute of Texas at the Fort Worth

Botanic Garden, 1700 University Dr., Ft. Worth, TX 76107, USA

3

 Author for correspondence: ksasan@fwbg.org

Illuminations: Past, Present, and

Future of Fern Research

This article is about a tripartite environmental

art exhibition is emerging from a research-based

creative collaboration between Dornith Doherty,

artist and professor at the University of North

Texas; Dr. Alejandra Vasco, Research Botanist;

Ana Niño, Librarian; and Tiana Rehman,

Herbarium Director, at the Botanical Research

Institute of Texas (BRIT) at the Fort Worth

Botanic Garden (FWBG). This paper describes the

installed artworks and reflects on the experiences

of developing and presenting an integrated arts-

science exhibition.

PROJECT DESCRIPTION

Illuminations was on view at BRIT from January

through June 2023. Dornith Doherty was an artist

affiliate with BRIT from July 2021 through January

2023, and during her residency, she worked with

Alejandra Vasco, Ana Niño, and Tiana Rehman

to research primary source materials housed in

the BRIT Library and Herbarium. In the resulting

exhibition, Dornith presented new large-scale

artworks installed in the BRIT Madeline R.

Samples Exhibit Hall and throughout the BRIT

Building.
Accompanying the artworks were vitrines

containing archival materials from the library,

the herbarium, and the Ferns of Colombia

project, a National Science Foundation–funded

collaborative study of fern diversity in Colombia.

The co-exhibition of new artworks alongside the

primary research materials from which they were

derived highlighted the remarkable, irreplaceable

record of botanical diversity captured by the Ferns

of Colombia field research and preserved for the

future by the BRIT Library and Herbarium.

The installation of the artworks onto windows

and projections onto walls in the gallery and

throughout the BRIT research building established

visual proximity to original materials—prompting

dialogue between scientific, archival, and artistic

disciplines. The three sections of the exhibition

can be divided into temporal themes: artworks

that engage with the past, chronicle the present,

and project our possible ecological futures.

Past

On the second floor facing the entrance to the

BRIT Herbarium, large-scale transparencies (6.5

feet high × 14 feet wide) were installed directly

onto existing windows (Figure 1A). Dornith

created these brilliantly colored digital collages by

photographing diaphanized plant slides archived

in the BRIT Herbarium and originally prepared

background image

16

PSB 70 (1) 2024

around 1956 by noted botanist and imaging

specialist Dr. Howard Arnott (Figure 1B). Located

along the corridor nearby are vitrines containing

Arnott’s field journals, original diaphanized plant

slides, and his graduate-level academic writings.

This interdisciplinary presentation of artistic

practice alongside scientific research materials

prompts meditation on the material traces of

botanical life from the microscopic details of

individual leaves to the universal importance of

preserving and studying the world’s plant diversity.

Present

Global biodiversity is threatened by climate change

and accelerating habitat loss, and exceptionally

diverse tropical regions are particularly

vulnerable. Colombia is one of the most biodiverse

countries on Earth, but knowledge about its

biota is taxonomically biased, and many groups

remain poorly understood. Ferns are one of these

conspicuous but understudied groups; despite

having the most species of any country in the

Americas, Colombia lacks a complete fern flora,

and most species remain poorly known.

As the Ferns of Colombia team co-led by

Alejandra works in the field, specimens are

collected and pressed between sheets of

newspapers and archived to be further studied

in the BRIT Herbarium. Inspired by the poetic

possibilities of the chance juxtapositions created

when diverse ferns are pressed to dry on top of the

daily news of Colombia, Dornith created artworks

that mingle the cultural and natural histories of

Colombia—chronicling the present time of urgent

plant discovery in an era of declining biodiversity,

political instability, and the longing for peace.

More than 100 of these plant/news time capsules

were illuminated with light boxes, photographed,

and digitally edited, rendering the dried ferns

into ghostly blue silhouettes floating above the

background of contemporaneous news to create

the 12 final artworks included in the exhibition

(Figure 2). Some of the artworks highlight species

not described by science and species not collected

in over 150 years in one of the most diverse

areas on Earth. The bilingual presentation of all

exhibition materials in English and Spanish invited

cross-cultural dialogue and connections between

art, science, culture, and technology, through

multilingual lectures, social media interactions,

and tours.

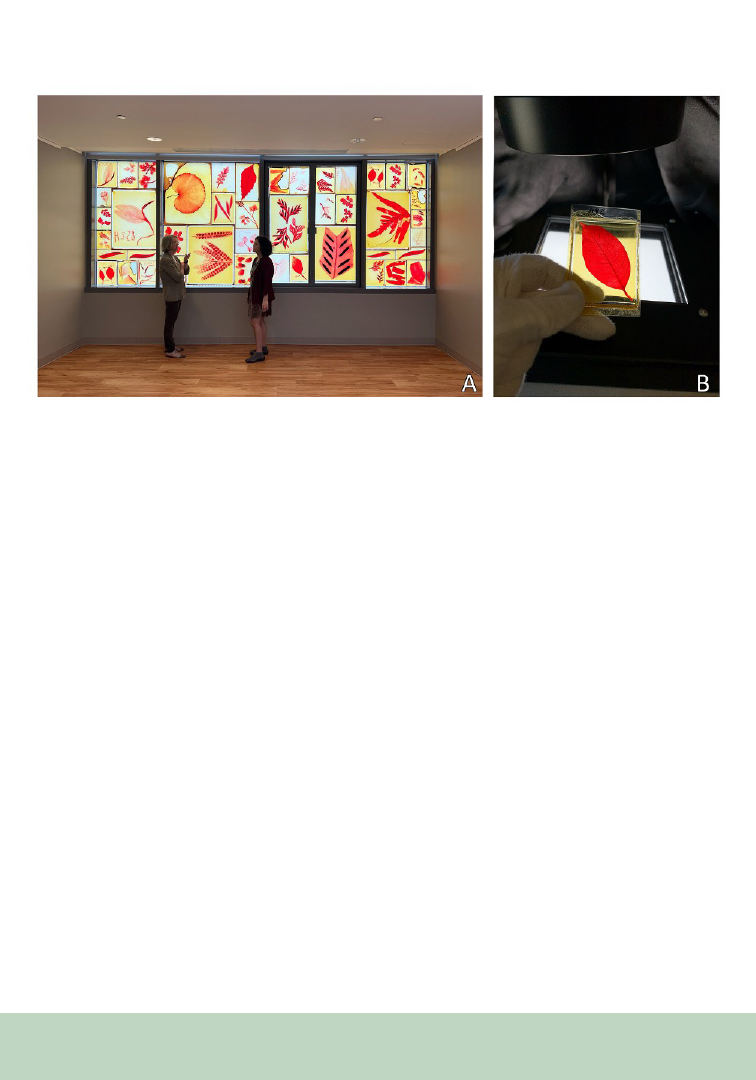

Figure 1. (A) Anthenaeum, Dornith Doherty (2023), translucent artwork installed onto alcove windows with Dornith Doherty

(left) and Ana Niño (right) in the foreground. (B) Diaphanized plant slide made by Dr. Howard Arnott.

background image

17

PSB 70 (1) 2024

Future

Completing the tripartite exhibition was a digital

animation Dornith created from DNA sequences

and specimen silhouettes from the Ferns of

Colombia project. The genomic data (DNA

sequences) that the Ferns of Colombia team is

generating are critical for resolving taxonomic

problems and placing Colombian fern diversity in

an evolutionary context. These data are currently

unavailable for most of Colombia’s fern species.

The animation created by Dornith was projected

onto the exterior of the BRIT building, identifying

the building as a site of specimen-focused cutting-

edge research while proposing a future in which

ecosystem rescue and revival is possible through

equitable sharing of knowledge (Figure 3A).
By displaying artworks through three distinct

methods, the exhibition offered audiences

different paths of engagement with the nature

and complexities of botanical research and

preservation—inviting guests to explore spaces

in the building normally only occupied by

researchers.

OUTREACH

Initially, discussions about the intended audience

were generalized to FWBG visitors, school

students, and invited guests attending the opening

reception, consisting of family, friends, botanists,

and business associates of the collaborators. An

estimated 250 to 300 in-person visitors were

expected to view the exhibit. There were two

main challenges to reaching a broad audience in

this research space: weekend closures, and the

tendency for Garden guests to overlook a visit to

the BRIT building. Outreach efforts included an

exhibition brochure and invitation card, YouTube

videos, social media posts, group and self-guided

tours, and two special gallery events: an opening

reception and participation in a city-wide

Spring Gallery Night (Fort Worth Art Dealers

Association, 2023).
A panel discussion was held during the

opening reception where the four collaborators

discussed their experiences in developing this

Figure 2. (A) Parablechnum lechleri | Preparing for the Future, Dornith Doherty (2023). (B) Fern specimen collected

by the Ferns of Colombia project in the artist’s portable digitization studio.

background image

18

PSB 70 (1) 2024

science-art collaboration (Figure 3B). The

discussion was organized by BRIT Librarian

Ana Niño and is available to view on the FWBG

YouTube channel (https://www.youtube.com/

watch?v=QLEYprXqubA).
More than 400 guests physically visited the

exhibition, of which more than 140 attended

the opening reception and panel discussion. In

addition, an online lecture about the exhibition

was viewed by 100 people; the exhibition

received reviews in magazines (e.g., PaperCity,

Madeworthy, and Patron); and social media posts

(both from personal and institutional accounts)

reached over 8000 impressions.
Audience feedback has been of the highest praise.

The guestbook is filled with comments like

“Wonderful exhibit, beautiful work” and “I love

the pieces – all the interplay of elements!”  Visitors

and colleagues alike have also shared many

kind words with collaborators. The exhibition is

documented on the FWBG website (fwbg.org/

events/illuminations-fern/), the Ferns of Colombia

website (fernsofcolombia.com), and the artist’s

website (dornithdoherty.com).

Figure 3. (A) Ferns of Colombia, Dornith Doherty (2023), digital animation projected onto the exterior of the BRIT

building. (B) Panel discussion during opening night.

REFLECTIONS





Dornith Doherty



Artist and Photography

Professor

This project was made possible by the professional

and personal generosity of my collaborators at

BRIT. Their openness to collaboration allowed

me to construct a small temporary studio in the

herbarium and access to the Ferns of Colombia

specimens, the mounted glass scientific slides in

the herbarium, and the archival materials in the

library. Casual lunch meetings filled with open-

ended conversation facilitated reflection and

resulted in a fertile collaborative environment.
I spent several months researching and

photographing unaccessioned specimens in the

herbarium and then worked with those digital files

to create collages and animations in my studio.

Ferns were the dominant lineage of vascular

plants on Earth for millions of years before seed-

bearing plants became the most diverse and

common plants in most ecosystems. As such,

ferns have evolved remarkable adaptations to

extreme conditions. Their resilience in the face of

environmental change, and the hope that resilience

inspires, became a key metaphor for my project.

background image

19

PSB 70 (1) 2024

The biggest challenge I faced was the elimination

of the gallery program at BRIT and the departure

of the curator. This placed extra communication,

budgetary, and planning responsibilities on my

collaborators. A few exhibition ideas were not

possible because the BRIT gallery space was used

for private rental events.
The limitations related to the use of the gallery

space led me to create artistic interventions

throughout the building, which included the data

animation projection onto the exterior of the

building and the installation of the transparent

collages onto the windows. This resulted in a

more dynamic exhibition, which was a positive

experience.

Alejandra Vasco



Research Botanist and Fern

Program Leader at BRIT

The exhibition started as an exploration by

Dornith of the botanical artifacts at the BRIT

Herbarium and Library. She wanted to speak to the

researchers who use these collections, and soon

enough, our interactions and our fern research

wound up inspiring the Present and Future

parts of the exhibition. After arriving from the

NSF-funded Ferns of Colombia field expeditions,

Dornith and I would meet over lunch, and I

would share experiences about field work, the

many intriguing specimens collected, the forests,

the food, the researchers and students, and the

struggles of the people living and preserving their

territories. These lunches catalyzed ideas on how

art could tell the story of research and botanical

preservation, while conveying the urgency of

studying these ecosystems and species in the face

of biodiversity loss and climate change.
It was a delight to interact with Dornith. She is

fascinated and curious about the work researchers

do to document and preserve biodiversity.

It was mesmerizing to see how the Ferns of

Colombia stories and herbarium specimens were

transformed through Dornith’s artworks and to

learn from the many different layers and meanings

physical artifacts of biodiversity preservation have.

During the discussion we had at the exhibition

opening, I also found it interesting how Dornith’s

artworks allowed the public to open up and be

more comfortable asking questions not only about

the art, but also about the science, the collections,

and research in the tropics.

Tiana Rehman



Herbarium Director

Herbaria protect specimens that serve as the

foundation for investigation across spatial and

temporal scales, whose stories are activated by

their users. Dornith’s respectful approach to the

collections quickly established a relationship

of trust, allowing her freedom to explore our

unaccessioned holdings and uncover her own

stories. We were habituated to the sight of

Dornith’s changing studio set-up in the herbarium,

sharing our delight over her discoveries at

our bilingual lunches. Initially, we shared big

ideas for communicating the value of natural

history collections to our community through

an exhibition that reached across FWBG spaces,

and although logistical and budgetary restraints

limited our reach to the interior/exterior spaces

of the BRIT building, the exhibition allowed us to

engage new guests with our collections.
Dornith drew attention to the beauty and utility of

our legacy collections through the Past showcase

of the Howard Arnott microscope slides collection,

whose acquisition itself was a race against time

(acquisition from garage storage, post-collector

retirement). The contrast of all the data, images,

and insight into contemporary botanical research,

with the more investigative work it took to

recreate these connections for the Past portion

of the exhibit, was particularly illuminating. The

concept of the ‘extended specimen’ (Webster, 2017;

Lendemer et al., 2020) connects a single specimen

with other related existing and yet-to-be-created

background image

20

PSB 70 (1) 2024

images, data, analyses, and object resources,

allowing us a more complete understanding of

organisms and their biological communities.

Dornith’s careful documentation of the specimen

origin of these art derivatives adds another layer

to our understanding of these specimens and the

social context in which they were collected.

Kimberlie Sasan



BRIT Research Assistant

Would we do it again? I certainly hope we would

and use what we learned to make the next

exhibition even better, but there is something

special about pulling together and blazing new

trails through the unknown. I remember how it

taxed each of us beyond our expectations, and

how that might make us hesitant to go into such

a project again. Yet, the bond between the artist,

researchers, and librarian is stronger for having

had those challenges and overcome them.  I

think they each gained personally more than

the organization did.  As an audience member, I

still reflect on the images of the art and how they

humanize the work I do at BRIT every day.   I

contemplate the fern specimens I touch being in

newspapers printed and read by Colombians, and

together how we are rescuing ferns, and with them

important ecosystems, without even knowing

each other.

ACKNOWLEDGMENTS

This exhibit received funding from the Ferns of

Colombia NSF grant (Division of Environmental

Biology 2045319), and a Scholarly and Creative

Activity Award from the College of Visual Arts

and Design, University of North Texas. We

also acknowledge funding from the Library,

Herbarium, and Education department of the

Botanical Research Institute of Texas at the Fort

Worth Botanic Garden.

REFERENCES

Fort Worth Art Dealers Association. 25 March 2023.

Spring Gallery Guide.(online). Website:

 https://fwa-

da.files.wordpress.com/2023/03/fwada-spring-gallery-
night-2023_brochure_final_webres-1.pdf

 [accessed 15

May 2023].
Lendemer, J., B. Thiers, A. K. Monfils, J. Zaspel, E.

R. Ellwood, A. Bentley, K. Levan, K., et al. 2020. The

extended specimen network: A strategy to enhance US

biodiversity collections, promote research and educa-

tion. BioScience 70: 23– 30.
Webster, M. S. [ed. 2017. The Extended specimen:

Emerging frontiers in collections-based ornithological

research. CRC Press.

Other Sources

Dabney, C. 26 February 2023. Fort Worth’s World

Class Botanical Research Institute Uses Plant Art to

Tell a Striking Story of Species Loss: Artist Dornith

Doherty and Renowned Researchers Come Together.

PaperCity. Website: https://www.papercitymag.com/

arts/botanical-research-institute-texas-fort-worth-

showcases-dorinth-doherty-art/.
“The Fort Worth Botanic Garden Is Illuminating Fern

Research.” 10 February 2023. Madeworthy Magazine.

Website:  https://tanglewoodmoms.com/community-

news/the-fort-worth-botanic-garden-is-illuminating-

fern-research
Patron Magazine. 23 February 2023. The Past Present,

and Future of Ferns with Dornith Doherty. Website:

https://patronmagazine.com/the-past-present-and-fu-

ture-of-ferns-with-dornith-doherty/

background image

21

From the PSB Special Issue on Art in the Botanical Sciences

The Four Noble Ones: Significant Cultural

Elements Bridging Chinese Painting

and Botanical Sciences

Shengchen Shan

1,3



Abigail T. Uehling

1,2,3

1

 Florida Museum of Natural History, University of

Florida, Gainesville, FL, United States.

Department of Biology, University of Florida,

Gainesville, FL, United States.

Authors for correspondence: Shengchen Shan

(shan158538@ufl.edu); Abigail T. Uehling (aueh-

ling@ufl.edu

Plum blossom, orchid, bamboo, and

chrysanthemum come together to form the Four

Noble Ones (also known as the Four Gentlemen;

Chinese:



四君子

). These four plants symbolize the

ideal virtues of a person: perseverance, nobility,

righteousness, and humility. The prominent use

of these plants in art forms, including poetry,

literature, and painting, emphasizes their

importance in Chinese and East Asian cultures.

In addition to their use in art, the Four Noble

Ones serve important roles in other avenues of

daily life, such as medicine, building materials,

and traditional cuisine. The Four Noble Ones

represent an excellent example of bridging art and

botany, and they emphasize the significant role

of plants in people’s spiritual life and well-being.

In this essay, we focus on the Four Noble Ones

as recurrent botanical subjects in Chinese brush

painting, discuss their cultural significance and

importance in everyday life as well as efforts to

understand and preserve the biodiversity of these

taxa.

THE FOUR NOBLE ONES IN

CHINESE BRUSH PAINTING

Illustrations of the Four Noble Ones belong to

bird-and-flower painting, a genre that originated

in the Tang dynasty (618–907), reached its peak

in the Song dynasty (960–1279), and continues to

flourish in the present day. The Four Noble Ones

are depicted in two main styles: gongbi (

工笔

; i.e.,

detailed painting) and xieyi (

写意

; i.e., freestyle

painting).
Gongbi uses highly detailed brush strokes and is

often colored. Painting plants in gongbi-style is

similar to that of western botanical drawings, in

that they closely resemble the real morphology of

a plant. Figure 1a shows a gongbi-style painting

of a plum branch by Ma Lin (1195–1264). Given

the detailed depiction, the cultivar of the plum

is presumed to be ‘green calyx’. Figure 1b shows

Ma Lin’s painting of orchid, species Cymbidium

faberi. Figure 1c, titled “Finches and Bamboo”

by Emperor Huizong of Song (1082–1135),

background image

22

PSB 70 (1) 2024

showcases the meticulous style of bird-and-flower

painting. “A Cluster of Chrysanthemums” by an

anonymous artist from the Yuan dynasty (1271–

1368) is shown in Figure 1d; the cultivar names

are noted in the painting, emphasizing the realistic

appearance of plants painted.

Xieyi emphasizes the spiritual aspect of the subject

and often uses monochrome brushstrokes. A

painting done in the xieyi-style may represent an

abstract idea. The plum painting by Wang Mian

(1287–1359) depicts petals using dark ink (Figure

2a); Wang believed that the omission of color

exalts the purity of the plum blossom. Figure 2b

shows a xieyi-style painting of orchid by Zheng

Figure 1 Gongbi-style paintings of the Four Noble Ones. (a) Plum blossom by Ma Lin; (b) orchid by Ma Lin; (c)

“Finches and Bamboo” by Emperor Huizong of Song; (d) “A Cluster of Chrysanthemums” by an anonymous artist

from Yuan dynasty. Image credits: (a) The Palace Museum (Beijing); (b) The Metropolitan Museum of Art, New York

(C. C. Wang Family Collection); (c) The Metropolitan Museum of Art, New York (John M. Crawford Jr. Collection);

(d) the National Palace Museum (Taipei).

background image

23

PSB 70 (1) 2024

Sixiao (1241–1318); Zheng used a rootless plant

to symbolize the unjust appropriation of his

homeland’s territory. “Bamboo in Monochrome

Ink” by Wen Tong (1018–1079) is shown in

Figure 2c. Wen invented the genre of ink bamboo

painting and used light and dark ink tones to

distinguish two leaf sides. Figure 2d shows the ink

chrysanthemum by Shen Zhou (1427–1507); the

ink tonal variations impart a sense of weathered

crispness to the blossoms.

Plum Blossom

Plum (Prunus mume; Rosaceae), also known

as  mei  (

), is a small deciduous tree native to

China that has been cultivated for more than 3000

years (Li and Liu, 2011; Zhang et al., 2012). The

flowers are white, pink, or red, and bloom during

late winter and early spring. Mei’s resistance to

cold weather resembles a person’s perseverance

(Bickford, 1985). An influential contribution to

the history of mei painting is the invention of the

Figure 2. Xieyi-style paintings of the Four Noble Ones. (a) Ink plum by Wang Mian; (b) orchid by Zheng Sixiao; (c)

“Bamboo in Monochrome Ink” by Wen Tong; (d) chrysanthemum by Shen Zhou. Image credits: (a) The Palace Mu-

seum (Beijing); (b) https://commons.wikimedia.org/wiki/  File:Zheng_Sixiao_-_Orchid_-_Google_Art_Project.jpg;

(c-d) the National Palace Museum (Taipei).

background image

24

PSB 70 (1) 2024

“ink plum” style (an example is shown in Figure

2a). The ink tonal variation captures the nuances

of color, making “ink plum” highly favored

among the scholar-official class (Bickford, 1996).

In addition to its ornamental values, mei was

cultivated for fruit harvesting. The common mei

products include mei wine, salted mei, and mei

jam (Li and Liu, 2011).
The dedicated efforts to breed plum trees

contribute to the proliferation of mei cultivars.

Mei Treatise by Fan (1186)—the first monograph

of mei in China—noted 10 cultivars. As of 2011,

there are 381 internationally registered cultivars

(Li and Liu, 2011). Recent molecular studies

revealed plum’s diversity and the genetic basis

underlying its hardy character. The genetic

relationships among mei cultivars were evaluated

using molecular markers (Fang et al., 2006).

Zhang et al. (2012) sequenced the genome of

Prunus mume and identified genes contributing to

early dormancy release. Transgenic tobacco plants

expressing the P. mume dehydrin genes showed

enhanced tolerance to cold and drought (Bao et

al., 2017).
Mei gardens exemplify efforts to conserve plum

trees in China. Meihua Hill, located in Nanjing,

covers over 100 hectares and contains more than

40,000 plum trees of over 300 cultivars (Li and Liu,

2011). Meihua Hill is also renowned for hosting

the International Plum Blossom Festival. The East

Lake Mei Garden in Wuhan contains over 200 mei

cultivars and is home to the Mei Flower Research

Center of China and the National Mei Flower

Germplasm Conservation Garden (Li and Liu,

2011).

Orchid

The genus Cymbidium of the family Orchidaceae

includes approximately 80 species of orchids,

which are mainly distributed in the subtropical

and tropical regions of Asia and northern

Australia (Zhang et al., 2021). Flora of China

recorded 49 species, including 19 endemic

species, in China (eFloras, 2008). Many species

have been cultivated as ornamentals for centuries,

including  C. ensifloium,  C. goeringii,  C. sinense

and C. torisepalum. Nowadays, Cymbidium plays

an important role in the global orchid market

(Yuan et al., 2021).
Orchid represents nobility in Chinese culture (Siu,

2018). The plants grow in the remote forest and

valley, where the flower is known for a pleasant

fragrance. Confucius (551–479 BC) believed that

the characteristics of orchids resemble a noble

person’s self-cultivation, who will not abandon

moral principles even in destitution (Siu, 2018).

Orchid became an independent subject of Chinese

brush painting during the Song dynasty, when

gongbi-style was prevalent. Following the Mongol

conquest of the Song, China entered a turbulent

period (1235–1279). Many scholars refused to

serve in the new regime, and painting of “ink

orchid” became a metaphor for their loyalty and

patriotism.
Recent genetic studies of Cymbidium have used

various markers to understand the diversity

of orchid cultivars (Huang et al., 2010). The

molecular mechanisms of leaf color variation and

floral development have been studied (Yu et al.,

2020; Yang et al., 2022). Two main approaches,

in-situ and ex-situ conservation, have been used

to preserve Cymbidium  diversity in China. By

2018, over 2750 nature reserves were established

throughout China, many renowned for their

rich orchid diversity (Zhou et al., 2021). For

example, C. elegansC. hookerianumC. tigrinum

and  C. tracyanum are protected in situ at the

Gaoligongshan National Nature Reserve, and C.

nanulum at the Yachang Orchid National Nature

Reserve. Several botanical gardens in China,

including Xishuangbanna Tropical Botanical

Garden and Kunming Botanical Garden, are well

known for their ex-situ efforts to conserve orchids

outside their natural areas. Of the 51 Cymbidium

species surveyed by Liu et al. (2020), 43 are

protected in botanical gardens.

background image

25

PSB 70 (1) 2024

Bamboo

Bamboo, which makes up the subfamily

Bambusoideae of the grass family (Poaceae),

symbolizes righteousness and humility among the

Four Noble Ones (Lai, 2012; Cheng, 2020). Bamboo

originated in southeast Asia, but it is common

across Asia, Africa, and Latin America. There

are currently more than 1400 recognized species

of bamboo (Kelchner and Bamboo Phylogeny

Group, 2013). Bamboo is a cosmopolitan group,

with many species that have been able to adapt to

new environments (Yang et al., 2008). Although

the appearance of bamboo in painting may be hard

to date exactly, Wang (1948) suggests that bamboo

first shows up in the background of religious icons

and figure paintings. Early depictions of bamboo

outline the leaves and stems of the plant with

occasional added color, while later styles painted

stems and leaves with ink but no outline (Wang,

1948).
Bamboo is valued in people’s daily lives because

of its strength and flexibility, as well as its

quick growing cycle (Dlamini et al., 2021). It

is also a useful socioeconomic resource across

many countries in Asia, serving as food and

providing building material for structures such

as scaffolding, bridges, and buildings, as well as

being used to make instruments and utensils

(Yang et al., 2004; Mera and Xu, 2014). Bamboo

has become a popular subject of materials science

research, because scientists are exploring bamboo

composites as an alternative to wood (Nkeuwa et

al., 2022). Xuan paper, made from bamboo pulp, is

popularly used for calligraphy and painting (Yang

et al., 2008). In addition to the many resources

provided by bamboo, it has a long history of being

used as part of classical Chinese gardens, and it

was first recorded as being an essential part of the

early Zhou dynasty (1046–256 BC) gardens (Yun,

2014).

The depletion of bamboo resources has led to both

ex-situ and in-situ conservation efforts. Bamboo

gardens, as well as the establishment of reserves

such as the Natural Reserve in Xishuangbanna,

are in-situ approaches to conserving native

species in their natural habitats (Yang et al., 2008).

Because of its extensive rhizome system and rapid

growth, bamboo conservation in these areas also

provides many ecological benefits, including

erosion prevention, carbon sequestration, water

conservation, and use as windbreaks (Song et al.,

2011; Tardio et al., 2018; Dlamini et al., 2021).

Botanical gardens such as Zhejiang Bamboo

Botanic Garden, Bamboo Garden of Fuzhou

Arboretum, and Xishuangbanna Tropical

Botanical Gardens are ex-situ efforts to conserve

biodiversity (Yang et al., 2008).

Chrysanthemum

Inflorescences from the genus Chrysanthemum

(Asteraceae) are considered a symbol of nobility,

due to their ability to bloom in chilly autumn

weather (Shahrajabian et al., 2019). There are

approximately 40 species (Liu et al., 2012).



In

ancient China, they were also often associated

with the poet Tao Yuanming (365–427), who was

known to have a small garden of chrysanthemums

and was frequently painted with blooms in his

hand (Yuan, 2009).

This genus is native to China and was first

cultivated in the 15th century BC as an herb

before cultivation of the wild Chrysanthemum

morifolium first took off during the Ming (1368–

1644) and Qing (1636–1912) dynasties (Imtiaz et

al., 2019; Yuan et al., 2020). It has since served as

an important component of traditional Chinese

medicine for the past 2200 years and has been

used for the treatment of fever, headache, sore

throat, and many other common ailments (Yuan

et al., 2020; Hao et al., 2022). The flower head of C.

morifolium has been used as a dietary supplement

background image

26

PSB 70 (1) 2024

for thousands of years in China, most popularly as

tea but also in wine, cakes, and other dishes (Yuan

et al., 2020).
Chrysanthemum’s popularity eventually led

it to dominate the horticulture market as the

second most important floriculture crop after

rose (Shinoyama et al., 2012). Chrysanthemum

breeding has led to many varieties and eight main

cultivars with different geographic origins (Liu

et al., 2012; Hao et al., 2022). Increasing market

demands for new varieties have led to improved

breeding techniques that alter features such as floret

number, petal size, and floral organ (Su et al., 2019).

The worldwide popularity of chrysanthemums

in the floral industry has motivated scientists to

better understand the genetic diversity of cultivars

to promote conservation. Breeders have also tried

to determine cultivars that are least susceptible to

white rust, caused by the fungus Puccinia horiana,

which can easily spread if not contained quickly

(Lu et al., 2018). Efforts to conserve genetic

resources and optimize production systems can

also help promote environmentally friendly

horticulture practices (Zhao et al., 2009).

CONCLUSIONS

The Four Noble Ones are cherished botanical

subjects of traditional Chinese brush painting

that offer insight into the cultural significance of

these four plants in China, as well as many other

Asian countries. Through the use of both gongbi

and  xieyi painting styles, artists honor the Four

Noble Ones and the ideal values they represent, in

addition to the many roles they serve in everyday

lives. Modern efforts to conserve the diversity of

these plants take many forms. We hope this essay

has conveyed a meaningful example of the deep

connection between art and botany in Chinese

culture.

Acknowledgments

The authors thank the National Palace Museum

(Taipei), The Palace Museum (Beijing), and The

Metropolitan Museum of Art, New York (John M.

Crawford Jr. Collection and C. C. Wang Family

Collection) for their permissions to reproduce

images.

References

Bao, F., D. Du, Y. An, W. Yang, J. Wang, T. Cheng, and

Q. Zhang. 2017. Overexpression of Prunus mume de-

hydrin genes in tobacco enhances tolerance to cold and

drought. Frontiers in Plant Science 8: 151.
Bickford, M. 1985. Bones of jade, soul of ice: the flow-

ering plum in Chinese art. Yale University Art Gallery,

New Haven, Connecticut, USA. .
Bickford, M. 1996. Ink plum: the making of a Chinese

scholar-painting genre. Cambridge University Press,

Cambridge, UK.
Cheng, J. 2020. The information development process

of wintersweet, orchid, bamboo, and chrysanthemum

in Chinese traditional painting from the perspective of

information philosophy, also on the selection of Chi-
nese traditional painting materials. Proceedings 47: 61.
Dlamini, L. C., S. Fakudze, G. G. Makombe, S. Muse,

and J. Zhu. 2021. Bamboo as a valuable resource and

its utilization in historical and modern-day China. Bio-
Resources
 17: 1926–1938.
eFloras. 2008. Flora of China [online]. Website: http://

www.efloras.org/ [accessed 20 May 2023].
Fang, J., T. Twito, Z. Zhang, and C. C. T. Chao. 2006.

Genetic relationships among fruiting-mei (Prunus

mume Sieb. et Zucc.) cultivars evaluated with AFLP

and SNP markers. Genome 49: 1256–1264.
Hao, D. C., Y. Song, P. Xiao, Y. Zhong, P. Wu, and

L. Xu. 2022. The genus Chrysanthemum: phylogeny,

biodiversity, phytometabolites, and chemodiversity.
Frontiers in Plant Science 13: 973197.
Huang, Y., F. Li, and K. Chen. 2010. Analysis of diver-

sity and relationships among Chinese orchid cultivars

using EST-SSR markers. Biochemical Systematics and
Ecology
 38: 93–102.

background image

27

PSB 70 (1) 2024

Imtiaz, M., A. M. Khattak, M. A. Khan, F. Jalal, S. Hus-

sain, F. Said, and H. Bo. 2019. Rapid in-vitro propaga-

tion of Chrysanthemum morifolium through shoot bud

explants. Pakistan Journal of Botany 51: 1093–1098.
Kelchner, S. A., and Bamboo Phylogeny Group. 2013.

Higher level phylogenetic relationships within the

bamboos (Poaceae: Bambusoideae) based on five plas-

tid markers. Molecular Phylogenetics and Evolution

67: 404–413.
Lai, C. 2012. A study of the bamboo “wuxing” text and

Zisi’s thought. Contemporary Chinese Thought 43:

34–69.
Li, Y., and Q. Liu. 2011. Prunus mune: history and cul-

ture in China. Chronica Horticulturae 51: 28–35.
Liu, H., Z. Liu, X. Jin, J. Gao, Y. Chen, Q. Liu, and D.

Y. Zhang. 2020. Assessing conservation efforts against

threats to wild orchids in China. Biological Conserva-

tion 243: 108484.
Liu, P. L., Q. Wan, Y. P. Guo, J. Yang, and G. Y. Rao.

2012. Phylogeny of the genus Chrysanthemum L.: evi-

dence from single-copy nuclear gene and chloroplast

DNA sequences. PLoS One 7: e48970.
Lu, D., Z. Huang, D. Liu, P. Zhu, S. Lv, N. Li, and H.

Mao. 2018. Transcriptome analysis of chrysanthemum

in responses to white rust. Scientia Horticulturae 233:

421–430.
Mera, F. A. T., and C. Xu. 2014. Plantation manage-

ment and bamboo resource economics in China. Cien-

cia y Tecnología 7: 1–12.
Nkeuwa, W. N., J. Zhang, K. E. Semple, M. Chen, Y.

Xia, and C. Dai. 2022. Bamboo-based composites:

A review on fundamentals and processes of bamboo

bonding. Composites Part B 235: 109776.
Shahrajabian, M. H., W. Sun, P. Zandi, and Q. Cheng.

2019. A review of chrysanthemum, the eastern queen

in traditional Chinese medicine with healing power in

modern pharmaceutical sciences. Applied Ecology and

Environmental Research 17: 13355-13369.
Shinoyama, H., R. Aida, H. Ichikawa, Y. Nomura, and

A. Mochizuki. 2012. Genetic engineering of chry-

santhemum (Chrysanthemum morifolium): current

progress and perspectives. Plant Biotechnology 29:

323–337.

Siu, P. I. 2018. An introduction to Chinese orchid

paintings. In: Y. I. Lee and E. C. Yeung [eds], Orchid

propagation: from laboratories to greenhouses – meth-

ods and protocols, 477–495. Humana Press, New York,

New York, USA.
Song, X., G. Zhou, H. Jiang, S. Yu, J. Fu, W. Li, W.

Wang, et al. 2011. Carbon sequestration by Chinese

bamboo  forests  and  their  ecological  benefits:  assess-

ment of potential, problems, and future challenges. En-

vironmental Reviews 19: 418–428.
Su, J., J. Jiang, F. Zhang, Y. Liu, L. Ding, S. Chen,

and F. Chen. 2019. Current achievements and future

prospects in the genetic breeding of chrysanthemum: a

review. Horticulture Research 6: 109.
Tardio, G., S. B. Mickovski, H. P. Rauch, J. P. Fer-

nandes, and M. S. Acharya. 2018. The use of bamboo

for erosion control and slope stabilization: soil bioen-

gineering works. In: H. P. S. Abdul Khalil [ed], Bam-

boo – current and future prospects, 105-132. IntechO-

pen, London, UK.
Wang, S. 1948. Chinese ink bamboo paintings. Ar-
chives of the Chinese Art Society of America
 3: 49–58.
Yang, F., C. Lu, Y. Wei, J. Wu, R. Ren, J. Gao, S. Ah-

mad, et al. 2022. Organ-specific  gene  expression  re-

veals the role of the Cymbidium ensifolium-miR396/

growth-regulating  factors  module  in  flower  develop-

ment of the orchid plant Cymbidium ensifoliumFron-

tiers in Plant Science 12: 3386.
Yang, Q., Z. B. Duan, Z. L. Wang, K. H. He, Q. X.

Sun, and Z. H. Peng. 2008. Bamboo resources, utili-

zation and ex-situ conservation in Xishuangbanna,

South-eastern China. Journal of Forestry Research 19:

79–83.
Yang, Y. M., K. L. Wang, S. J. Pei, and J. M. Hao.

2004. Bamboo diversity and traditional uses in Yun-

nan, China. Mountain Research and Development 24:

157–165.
Yu, J., Q. Wang, Q. Q. Shen, B. P. Zhuo, and J. R. He.

2020. Transcriptome analysis reveals genes associated

with leaf color mutants in Cymbidium longibractea-

tumTree Genetics and Genomes 16: 44.
Yuan, H., S. Jiang, Y. Liu, M. Daniyal, Y. Jian, C. Peng,

J. Shen, et al. 2020. The flower head of Chrysanthe-

mum morifolium Ramat. (Juhua): a paradigm of flow-

ers serving as Chinese dietary herbal medicine. Jour-

nal of Ethnopharmacology 261: 113043.

background image

28

PSB 70 (1) 2024

Yuan, S. C., S. Lekawatana, T. D. Amore, F. C. Chen,

S. W. Chin, D. M. Vega, and Y. T. Wang. 2021. The

global orchid market. In; F. C. Chen, and S. W. Chin

[eds], The orchid genome, 1-28. Springer, Cham, Swit-
zerland.

v

Yuan, X. 2009. Tao Qian and classical Chi-

nese paintings. Frontiers of Literary Studies in China

3: 479–502.
Yun, J. 2014. A comparative study of bamboo cul-

ture and its applications in China, Japan and South

Korea. Proceedings of SOCIOINT14 – International

Conference on Social Sciences and Humanities in Is-

tanbul, Turkey. Website: https://www.ocerints.org/

Socioint14_e-publication/papers/410.pdf.
Zhang, G. Q., G. Z. Chen, L. J. Chen, J. W. Zhai, J.

Huang, X. Y. Wu, M. H. Li, et al. 2021. Phylogenetic

incongruence in Cymbidium orchids. Plant Diversity

43: 452–461.v

Zhang, Q., W. Chen, L. Sun, F. Zhao, B. Huang, J.

Wang, W. Yang, et al. 2012. The genome of Prunus

mumeNature Communications 3: 1318.
Zhao, H. E., Z. H. Liu, X. Hu, J. L. Yin, W. Li, G. Y.

Rao, X. H. Zhang, et al. 2009. Chrysanthemum genetic

resources and related genera of Chrysanthemum col-

lected in China. Genetic Resources and Crop Evolution

56: 937–946.
Zhou, Z., R. Shi, Y. Zhang, X. Xing, and X. Jin. 2021.

Orchid conservation in China from 2000 to 2020:

achievements and perspectives. Plant Diversity 43:

343–349.

background image

29

From the PSB Special Issue on Art in the Botanical Sciences

Art Is Not Only About Flowers:

Ferns as a Source of

Inspiration for Artists

FERNTASTIC PLANTS

Van Gogh’s sunflowers, Monet’s water lilies,

Tarsila do Amaral’s manacs, and a whole host of

other flowering plants have been and continue to

be a huge source of inspiration for artwork around

the world. But artists cannot live on flowers alone.

Ferns were the inspiration for the sculptures and

photographs of Karl Blossfeldt (1865–1932), a

German artist whose organic ornaments heavily

influenced the world of art and design. The beauty

of ferns was also captured in a breathtaking series

of photographs by Italian photographer Paolo

Marcelo G. Santos

Universidade do Estado do Rio de Janeiro, Facul-

dade de Formação de Professores, Laboratório de

Biodiversidade.  Rua Dr. Francisco Portela, 1470,

Patronato, São Gonçalo, Rio de Janeiro, Brasil,

CEP 24435-005

Email: marceloguerrasantos@gmail.com

Monti (1908–1982) titled “Astratte Felci e Foglie”

(Abstract Ferns and Leaves), and the beautiful

mosaic “Mosaiksupraporte Farnkraut” (Fern herb

mosaic overhangs) by Ernst Paar (1953/1954) in a

housing complex in Vienna, Austria. These are just

some examples of fern-inspired artistic expression

around the world.
Ferns also play a central role in the culture and

artistic expression of the Maori, the indigenous

Polynesian people of New Zealand (Figure 1). Their

word for the spiral shape of young unfurling fern

fronds is “koru” and holds immense symbolism in

their culture.
Although there are many interpretations of the

meaning of “koru,” Henry and Pene (2001) wrote

that the basic beliefs at the heart of “koru” revolve

around “Io, The Supreme Being or origin of all life,

from which came Papatuanuku, the earth mother

and Ranginui, the sky father….
This essay highlights two artworks inspired by

ferns—plants that are often overlooked in favor

of their flower-bearing counterparts. However,

art inspired by these plants goes beyond paintings

to include objects, sculptures, photographs, and

representation in buildings in which they appear.

This subject is vast and will not be exhausted here.

Against a backdrop of the arts, my goal is to evoke

a more poetic perception of ferns that inspires the

adoration these ferntastic plants deserve.

background image

30

PSB 70 (1) 2024

CRAZY ABOUT FERNS!

The Victorian Era, as the reign of Queen Victoria

of England is known (1837–1901), was marked

by so-called “fern fever” or pteridomania, an

obsession with collecting and growing ferns and

owning objects with pictures of them (Duggins,

2015). “The Fern Gatherer” (1877), painted by

Charles Sillem Lidderdale (1830–1895) (Figure 2),

epitomizes this era when fascination for all things

fern reigned.
Are ferns still glamorous? According to

McCulloch-Jones et al. (2021), there is still a

large commercial market for ornamental ferns

Figure 1. Image taken from page 109 of “Illustrations prepared

for White’s Ancient History of the Maori”, 1891. The British

Library, No restrictions, via Wikimedia Commons.

from Asia, Australia, and New Zealand, with an

estimated annual commercial value of US$150 to

300 million!

FERN FLOWER POWER

The fact that ferns have no flowers or seeds confused

their first observers, who invented a myriad of,

at times highly unlikely, stories to explain the

biology of these plants, especially in European

countries. In these tales, ferns’ flowers and seeds

could only be seen and gathered on certain special

occasions and anyone who possessed them would

be blessed with supernatural powers, invisibility,

extraordinary strength, and wisdom (May, 1978).

Figure 2. The Fern Gatherer, 1877. Charles Sillem Lidderdale.

Public domain, via Wikimedia Commons.

background image

31

PSB 70 (1) 2024

According to the Polish legend “Fern Flower,” wild

ferns produce magical flowers on the evening of the

summer solstice. This popular belief is ubiquitous

in paintings and illustrations in adult and

children’s books across Poland. It was depicted in

the paintings “Kwiat paproci” (Fern Flower, 1900;

Figure 3) by Antoni Piotrowski (1853–1924) and

“Saint John’s Eve” (1875) by Witold Pruszkowski

(1846–1896), among others.
Plant reproduction remains a difficult subject

to understand in botany teaching and scientific

divulgation, largely because of the challenges

involved in observing plant phenomena and the

complexity of the terminology (Barbosa et al.,

2021). I often hear my students say, “Professor, I

always thought those little brown balls (sori) on

fern leaves were fungi or a disease....”

BUILDING BRIDGES

The



art discussed here can lay the groundwork

for dialogue between art, culture, and botany

and two pertinent themes: namely botanical

imperception and plant reproduction. In the first

case, depending on time and space, imperception

can be accentuated in plants such as ferns, which

are often overlooked. Lidderdale’s painting “The

Fern Gatherer” reflects a time in European history

when ferns were revered. In contemplating this

work of art, our thoughts travel to other peoples

who have ferns engrained in their culture, such as

the Maori, and we are enthralled by the captivating

beauty of these plants and learn to admire them.

In terms of fern reproduction, their lack of

flowers, fruits, and seeds still confuses people,

who find it difficult to establish parallels with

plants that have these structures. Piotrowski’s

“Kwiat paproci” (Fern Flower) depicts a cultural

perception of ferns inspired by popular legends

that emerged at a time when little was known

about the reproductive biology of ferns, especially

among laypeople. At the time, their lack of flowers

was explained using other types of knowledge,

which should be reflected on by current admirers

of the work.

References

Barbosa, A. M., E. C. V. Castro, E. C. Prado, J. A. Vieira, and

M. F. Silva. 2021. Ciclo de vida das plantas construindo o

Ciclo de Vida dos grandes grupos vegetais. In D. T. Vasques,

K. C. Freitas, and S. Ursi (orgs.), Aprendizado ativo no en-

sino de botânica. Instituto de biociências, 136-168. USP, São

Paulo.
Duggins, M. 2015. ‘The world’s fernery’. New Zealand, fern

albums, and nineteenth-century fern fever. In: K. Pickles, and

K. Coleborne (eds), New Zealand’s Empire. 102–124. Man-

chester University Press, England.
Henry, E., and H. Pene. 2001. Kaupapa Maori: Locating In-

digenous Ontology, Epistemology and Methodology in the

Academy. Organization 8: 234–242.
May, L. W. 1978. The economic uses and associated folklores

of ferns and fern allies. The Botanical Review 44: 491-528.
McCulloch-Jones E., T. Kraaij, N. Crouch, and H. Fritz.

2021. The effect of horticultural trade on establishment suc-

cess in alien terrestrial true ferns (Polypodiophyta). Biologi-

cal Invasions 23: 3583–3596.

Figure 3.  “Kwiat paproci” (Fern Flower), 1900. Antoni Pio-

trowski. Public domain, via Wikimedia Commons.

background image

32

From the PSB Special Issue on Art in the Botanical Sciences

The Artist-Scientist Symbiosis:

A Dialogue

The disciplines of art and science have a lot in

common in terms of their practice and research

processes, a sameness that we have observed

and frequently discussed in our artist/mother–

scientist/daughter symbiosis. Symbiosis is an

intimate and often long-term relationship between

two or more organisms, which can range from

mutually beneficial to mutually challenging. Our

artist-scientist symbiotic relationship has been

beneficial, with each of us gaining from the other’s

insights, expertise, skills, and ways of seeing.
The story of art and the story of science is a

story of questions. We are inspired by questions,

which we then explore and research by testing

ideas, gathering data, drawing conclusions,

disseminating ideas, returning to our hypotheses,

and beginning again. We identify a problem,

Gretchen Scharnagl

1

and

Klara Scharnagl

1

 Artist in Residence 2023 &2024 Deering Estate

Website: https://www.gretchenscharnagl.com

2

 Tucker Curator of Lichenology, University & Jepson

Herbaria, University of California Berkeley

Website: https://www.symbiosiscontinuum.com

and we explore ways of solving it. Some of this

exploration involves—requires—play, freedom,

and open-mindedness. In the relationship between

artist and scientist, we each invite the other to look

through a different lens. We each inspire questions

from a realm unfamiliar to ourselve

s.

COLOR THEORY AND

PATTERNS ON TREES

[G.S.] While teaching a course on color theory

for interior designers, I would emphasize

Albert Munsell’s color relationships that occur

frequently in nature. One color relationship,

the split complement, is where you take two

complementary colors, such as red and green, but

split the green into yellow-green and blue-green.

This beautiful color triad could be observed on

the lower trunks of royal palm trees on campus,

but only after the rain. I observed patterns of grays

turning into vibrant reddish-browns, blue-greens,

and yellow-greens: a gorgeous example of color

harmony. I would instruct my students to run out

after a rainstorm to look at these color patterns.

I observed this phenomenon and instructed my

students to observe this phenomenon, without

thinking beyond the pattern of color, or what

it was, or why it changed. Years later, when my

daughter began studying lichens and immediately

sharing what she learned with me, I connected the

dots back to that Color Theory course, realizing that

it was lichens changing color after being hydrated

by rain. My daughter and I have discussed that my

observations in my Color Theory class may have

background image

33

PSB 70 (1) 2024

given her the beginnings of what she now terms

“the lichen eye.” This “lichen eye” is why we see

whole worlds of organisms on the surfaces of

rocks, trees and soil that most people overlook.

One of the common denominators between

scientists and artists is that we are acute observers,

but the difference in the filters of the artist and

scientist is the strength of our relationship.

THE UBER CONVERSATION

[K.S.] During my postdoc in England, I invited

my mom to visit me for a long weekend to see a

particular art exhibit in London and to visit as

many other art museums as possible. To maximize

our time, we took Ubers from one art venue to the

next. Sitting in the back of the Uber, momentarily

freed from any distractions, we could dive deep

into conversation. I began by telling my mom

about what I was working on in my postdoc. I

was attempting to grow lichens in the lab in order

to conduct experiments to better understand the

mechanisms of the lichen symbiosis. Lichens

are complex symbiotic organisms, consisting

of a primary fungal and a primary algal or

cyanobacterial partner. I described to her how we

were growing whole lichens collected directly from

the field, as well as isolated cultures of the fungal

partner and the algal partner. Part of the challenge

of experimental work with lichens is that they

tend to grow very slowly, so I was looking for ways

to promote lichen growth in the lab. I described

how almost anything we tried failed, and how it

defied logic since lichens seem to grow so well in

challenging environments outside the lab. As we

often do, my mom and I began to troubleshoot and

brainstorm ideas on possible solutions to create

growing conditions for the laboratory lichens.
Brainstorming is a valuable tool in both art and

science, because it is an opportunity to explore

possibilities without restraint. My mom’s artistic

practice emboldens childlike and playful questions

of “Why?”, “What if…?”, and “Why not?” While

engaged in brainstorming ping-pong, my mom

and I discussed the potential use of different

substrates and/or media in promoting lichen

growth. Many of the potential substrates we could

test in the lab quickly ran into affordability or

feasibility issues, but the discussion also included

the use of ceramics. Ceramics provide a freedom

of size, shape, and texture at relatively low cost.

My mom’s expertise meant she could share the

uses of different clays, firing techniques, and

impregnating the clays with different materials to

create and test substrates with different properties.

We also discussed the introduction of wind or

other disturbances in the growth chamber—

perhaps you need the chaos and imperfections of

the natural world to make them succeed in the lab.

We even discussed the idea of building a structure

around lichens in situ, but realized that wouldn’t

work because it would alter the in situ conditions.

Each conclusion made us realize we were backing

ourselves into a corner, which then reminded

me of one of my favorite books from childhood

given to me by my mom: The Salamander Room.

The children’s book The Salamander Room by

Anne Mazer tells the story of a boy who finds a

salamander in the woods and brings it home.

But the salamander does not thrive, so the boy

keeps adding things to his room in an attempt to

make it happier: a rock, some leaf litter, a small

pool, some insects to feed on, another salamander

for company—but the more he added, the more

he needed to add to keep everything in balance.

By the end of the book, the boy’s bedroom has

been completely transformed into the forest he

collected the salamander from. The lesson of the

book is that the best place for a salamander to be a

salamander is in its natural environment. For me,

during that Uber conversation, the book became

a useful metaphor to examine what is gained

and lost in our laboratory studies. My mom and

I were brainstorming with such enthusiasm and

gusto that our Uber driver could not help but

also become engaged. He delightedly asked a lot

of questions, and commented on how unique

our mother-daughter, artist-scientist relationship

was. My mom and I simply being ourselves led

background image

34

PSB 70 (1) 2024

to a beautiful interaction with a stranger, and a

productive science communication moment in

the midst of fun.
Following my mom’s visit, I applied a lot of what

we discussed, testing a lot of variables in the lab.

The more I did so, the more The Salamander

Room seemed to ring true, and successfully

growing lichens or their constituents in the

laboratory remains challenging. The artist brings

to the dialogue an irreverent acceptance of failing,

imperfection, or the stray mark. To the artist, the

stray mark is not a lie (or an outlier), it is the truth.

It is part of the picture. The more I thought about

The Salamander Room, the more I wondered

whether there could be organisms, like lichen,

that defy the lab—and not just in terms of rapidity

of growth. If we alter variables enough, have we

taken away the conditions that necessitate or

facilitate the symbiosis of the lichen, such that the

associations we are measuring in the laboratory

are no longer the symbioses we set out to test?

LICHEN POETRY AND THE

CONCRETE BENCH

[G.S.] The tradition in our family each winter

holiday is to gather in Miami, Florida where we

make our annual trips to Everglades National

Park, Fairchild Tropical Botanical Garden, and

sometimes Deering Estate. My daughter Klara and

I can often be found with our eyes two to three

inches from almost anything, discovering lichens;

their patterns and diversity, their interactions, and

the surprising variety of substrates they grow on—

from the trunks of trees to concrete pavement to

recycled-plastic boardwalks.
I have brought this “lichen eye” with me to my

artist residency at the Deering Estate. The Deering

Estate encompasses the historic home of Charles

Deering and the Richmond family, protection

of indigenous archeological sites, as well the

protected site of threatened south Florida habitats,

including pine rocklands, hardwood hammocks,

and mangroves. These historic, prehistoric, and

natural surroundings have been the subject of

many previous artists in residence. I wanted

to focus on something unseen, overlooked, or

ignored. In the manicured lawn area surrounding

the estate there is a sea wall that juts out into the

bay, lined with rows of royal palms. These royal

palms were also covered in patterns and color,

which thanks to my daughter, I had learned to

recognize as lichens. But it was not until I zoomed

in with my iPhone on Macro settings that I realized

that I was the one overlooking, ignoring, and not

seeing. I began to snap pictures. When I stepped

back and looked at the same lichen with the naked

eye, I could not see what was now visible in the

image on my phone. From these photographs

I print enlarged images on acetate. Using a light

table, I trace what is there. This allows me to

trace without the mental biases that could lead to

drawing what I don’t see, and not drawing what I

do see—a bias that teaching drawing makes you

excruciatingly aware of. The quick tracings done

with script-like gestures and scribbles further free

my mind of potential biases. Through this process,

the patterns and structures of these lichens appear

to expand exponentially, revealing things that

were there in the photographs but hidden from

me. Through my tracings, I discover smaller and

smaller repetitious forms, each iteration leading

to deeper, almost infinite levels of complexity. The

more I see, the more I see (Figure 1).
From the beginning I decided I would trace 100

drawings over a calendar year in a series I call

Lichen Poetry. Approached with only poetic

and artistic considerations, these drawings are

still recognized by my lichenologist daughter

as lichens, sometimes even to the species level.

During open studio visits, members of the public

have engaged with the Lichen Poetry, often leaving

with a new appreciation for lichens. These visitors

include local scientists, one of whom days later

texted, “You have me looking at things I’ve never

background image

35

PSB 70 (1) 2024

looked at,” and included images of lichens from his

own backyard. I question who may be the ultimate

audience for this work: the science world, the art

world, or a broader audience.
[K.S.] During my mother’s forays to photograph

the lichens on the royal palm trees at the Deering

Estate, she noticed something on a concrete

bench. This concrete bench was placed at the

end of the arm of the boat basin that juts out into

the salt water bay. There were lichens growing

on the bench, bright orange ones. Because I had

recently begun looking at lichens that grow on

concrete, particularly sidewalks, my mother sent

me a photo of it. After looking at her photograph,

I got really excited and asked her to send me

more photographs and samples. This appeared to

be a lichen that is known to grow on rocks and

concrete, but was not previously recorded in south

Florida. I am in the process of sequencing the

DNA of this lichen to confirm its identification.

In pursuing her art and collaborating with me, my

mother has potentially found a new locality record

for a lichen. This opens up many new questions

in my study of lichens on concrete, as well as an

ongoing curiosity about the role of salt in fungal

ecology.

Figure 1.  Lichen Poetry #15, #65, #24, #26. Series of 100 drawings, 2023-2024, 8.5 x 11 inches. Mixed media on

75-year-old student engineer graph paper.

background image

36

PSB 70 (1) 2024

Figure 2. Suburban Ledgers (from series) 6.75 × 3.75

inches, 2017-2019. Mixed media on 50-year-old Bur-

dines notebook paper.

My mom and I have become lichen influencers,

which proves that the most beneficial part

of the artist-scientist symbiosis is a broader

communication of ideas. In a seminar I recently

gave, I talked about lichens that grow on sidewalks

and other concrete surfaces. I have since been

approached by multiple attendees of the talk who

tell me that they have now taken a much closer

look at the sidewalks and concrete near their

homes, observing lichens there! Both my mom

through her art, and I through my science, have

inspired others not only in our own fields and

each other’s fields, but to a larger audience—new

ways of seeing and exploring the world.

THE LICHEN LINE

[K.S.] During a research trip to the Andes in Peru,

I noticed a phenomenon that I have termed “the

lichen line.” The lichen line occurs on any substrate

or landscape where there is a visible edge between

where lichens grow and where they do not grow.

In the Peruvian Andes, the alpine glaciers are

melting so fast that the lichens cannot colonize

the newly exposed rocks fast enough. This has led

to a stark difference between the rocks covered

in lichens, which appear almost black from a

distance, and a kilometer or so of bare rocks,

appearing pale or beige, leading up to the glacier. I

ran a transect along the ridge and sampled lichen

communities leading up to the lichen line, and

lichen communities between the lichen line and

the receding glacier. The data clearly show that

there is a dramatic difference in lichen presence

and cover on one side of the lichen line versus the

other. When I took photographs of this lichen line,

it was difficult to capture the whole landscape in

a single shot, and the topography and shadows

made the lichen line not appear as stark as it

looked in person. Frustrated, I told my mom this

story, and shared the photographs with her that I

had taken. At that time, my mom was delving into

the idea of visuals that describe climate change.

Melting glaciers are challenging to depict in a

two-dimensional image. From my story and the

photographs, my mom was able to create a visual

that told both of our stories; glacial recession

and the lichen line. I felt that her visual properly

captured the starkness of the actual edge of the

lichen line, eliciting a more dire and emotional

response than my photograph or data may have

done (Figure 2).

CONCLUSION

Through these stories, we have demonstrated the

benefits of the artist-scientist symbiosis through

the sharing of insights, expertise, skills, and ways of

seeing. Our mother-daughter symbiosis facilitates

uncomplicated occupation of the liminal space

between the spheres of art and science, whilst

remaining rooted in our respective disciplines.

Just like in lichens, the value of the particularity

of symbiosis is the continuous exchange of that

which is beneficial to the other, without the design

background image

37

PSB 70 (1) 2024

of becoming the other. The strength of the artist-

scientist symbiosis is in the volleying of questions

and hypotheses from two distinctive and often

opposite ways of seeing. Both the scientist and

the artist benefit from having one foot positioned

in proven steps of exploration, and the other foot

skipping along in play.

SUPPLEMENTAL

INFORMATION

Everglades National Park encompasses 1.5

million acres, protecting a variety of south

Florida ecosystems including freshwater

sloughs, tropical hammocks, pinelands,

cypress domes and prairies, mangrove

forests, marine and estuarine, as well as many

threatened and endangered plants and animals.



Fairchild Tropical Botanic Garden was

established in 1938 by a group of botanists and

environmentalists including its namesake, Dr.

David Fairchild. It encompasses 83 acres with

a focus on tropical and subtropical plants with

human uses, and includes a natural history

collection, library, and archives. Fairchild

Garden supports active research on botanical

biodiversity, ecology, and applications.



Deering Estate is a historic landmark in south

Florida encompassing 450 acres preserving

historic architecture, indigenous histories

(including burial sites, middens, shelters,

and historic hunting grounds), and native

ecosystems. Deering Estate includes the following

designations: National Registry of Historic

Estates, Miami Dade County Environmentally

Endangered Lands, Natural Areas Management,

The Cutler Fossil Site, Paleo-Indian Archeological

Site, Florida Fish and Wildlife, Department of

Environmental Protection Agency, Natural Areas

Management.

background image

38

From the PSB Special Issue on Art in the Botanical Sciences

Attempts at Convergence of

Science and Art That Blossomed

Amidst Korea’s Tragic History

Abstract

The Japanese colonial era and the Korean War

left many scars on the Korean Peninsula, and

nationalistic and ideological conflicts resulting

from them remain. But even in this turbulent time,

Korean scientists made important contributions

to biology. Among them were a few people who

attempted to use taxonomic illustrations that fused

biology and art. Bong-Syup Toh (1904–?) was one

of the first Korean botanists and pharmacologists.

Hyewoo Shin

Email: hyewooshin@naver.com; www.hyewoo.com

His wife Chanyoung Jung (1906–1988) was a

well-known painter and supported and assisted

the botanical endeavors of her husband. The

entomologist Pok Sung Cho (1905–1971) was one

of the first zoologists in Korea. He was also a skilled

scientific illustrator and provided an incredibly

detailed and accurate set of butterfly drawings

that demonstrated his scientific knowledge.

Korea adopted modern taxonomy (Linnean

system) relatively late, and therefore the work of

the few taxonomic illustrators was exceptional.

The purpose of this article is to demonstrate the

outstanding nature of and to bring awareness to

their contributions, which have been virtually

unknown until recently. Understanding their

achievements and lives is also the beginning of

understanding the history of modern Korean

biology.

HISTORICAL BACKGROUND

After 500 years of rule, the Joseon Dynasty on

the Korean Peninsula collapsed due to the forced

opening of ports (1876) by foreign pressure.

Subsequently, the Korean Empire (1897–1910),

the Japanese colonial period (1910–1945), and

the Korean War (1950–1953) all contributed to a

history of suffering on the Korean Peninsula. As the

traditional Korean social order began to change,

Western culture, including modern science, began

background image

39

PSB 70 (1) 2024

to have more influence. Around the time that

Korea opened its harbors, modern taxonomy was

first introduced from the West. Although colonial

countries had previously developed their own

scientific fields, during the period of imperialism

they were indoctrinated into or believed that

Western-style modern science was essential to

an advanced and strong nation. The Linnean

taxonomic system also spread around the world

after the 18th century in concert with imperialism,

whose influence increased in the name of ‘modern

universality’. During the Japanese colonial era,

modern taxonomy was introduced by Japan into

Korea to deliberately investigate natural resources

in the name of colonial civilization. Additionally,

Japanese scholars sought to promote Japan’s

scientific capabilities to the world by reporting on

the biology of the Korean Peninsula. Japan trained

Koreans to aid their goals, but limited Koreans’

access to high-level science and technology. On

the other hand, colonial Koreans thought that

their country could become strong, developed,

and independent if it had modern science and

technology similar to what existed in Japan and

Western countries. Some Koreans cooperated with

Japanese scientists to learn science and technology,

whereas others resisted and pursued independent

studies. At that time, the relationship between

Japanese and Korean scientists took on various and

complex aspects such as cooperation, exchange,

oppression, discrimination, consideration, and

competition—all having an impact on everyone’s

life (Kim, 2005). It was very difficult for Koreans

to become taxonomists and very few succeeded.

This is because Korea’s traditional academic and

education system, before the opening of ports,

was completely different and during the Japanese

colonial period, Japan systematically restricted

and discriminated against Koreans from receiving

modern education. Korean universities were

also limited, and it was not until 1926 that the

first university was opened and only a very small

number of Koreans studied internationally.

Biological illlustration is a field that unites science

and art, drawing pictures based on scientific

study. Therefore, the situation for Koreans at the

time to learn this field was worse than studying

biology alone. Moreover, traditional Korean

paintings up to that time were very different from

biological illustrations. Confucianism dogma was

the traditional field of study and the principle of

social order in the Joseon Dynasty, and it was also

the foundation of art. Although several genres

of painting were practiced, most of them were

based on the Confucian concept. Some paintings

depicted living things realistically, but the objects

and composition of these paintings were symbolic

or decorative and were not intended to identify

species. Since they are Eastern paintings, they

did not depict identification keys to distinguish

living things and were often patterned or had

artificial compositions. Although they depicted

living things, they were an effort to contain

philosophical meaning. Biological illustrations

were naturally introduced to the Korean

Peninsula through biology-related books, but a

scholarly understanding of this multidisciplinary

field was lacking. There was not enough time and

manpower to produce illustrations, and there was

no educational institution to support the topic.

Old records contain illustrations commissioned

by painters without scientific knowledge or

copies from foreign documents. There were few

direct attempts by taxonomists, and professional

and high-quality illustrations are extremely rare.

The three Koreans introduced here were the

starting points of Korean biological taxonomy

and biological illustration during these turbulent

times, and they were the people who created the

framework of current Korean biological taxonomy

that still has influence today

.

background image

40

PSB 70 (1) 2024

BONG-SYUP TOH AND

CHANYOUNG JUNG: A WORK

CREATED BY THE LOVE OF A

BOTANIST AND A PAINTER

Bong-Syup Toh (also written as Pong-Shyup Toh,

Bong-Shyup Toh, and Bong-sup Toh) was one

of the few of the colonized who took the elite

course during the colonial era. He studied at the

University of Tokyo in Japan and became the first

Korean professor of the Gyeongseong Pharmacy

College, which was the only pharmaceutical

education institution in Korea during the Japanese

colonial period. After liberation, he served as the

Dean of the Private Seoul College of Pharmacy. As

a colonized Korean, the process through which

he could conduct scientific research was never

easy

At that time, there was only one university in

Korea, Keijo Imperial University, with no science

departments. In addition, Japan restricted science

education for Koreans, including limiting the

number of Korean students studying science and

making it difficult to qualify for entrance exams

for Japanese universities. Toh graduated from

Japanese schools twice to qualify for the entrance

exam to the University of Tokyo. In 1919, there

was the March 1st Movement in Korea, a strong

national resistance movement against Japanese

colonial rule. Afterwards, Japan slightly eased

its oppression of Korea and Toh was able to

enter university thanks to the added luck of the

relaxed education policy at that time. It was very

unusual that his outstanding talent and diligence

overlapped with his wealthy family and fortunes

caused by social upheaval. He is the first botanist

of great importance in Korean plant taxonomy

for his active plant collection and  taxonomic and

distributional research. His representative book

is

韓國植物圖鑑:  草本部



 (Korean Flora:  Second

Volume for Herbaceous Plants, 1956), one of Korea’s

first botanical illustrations and a compilation of all

Korean herbaceous plants. In 1933, he organized



朝鮮博物硏究會

 (Joseon Natural History Research

Group) with Korean naturalists and made a

considerable effort to educate and disseminate

science in colonial Korea. Together with the

organization’s naturalists, he published

朝鮮植

物鄕名集

 (Vernacular Names of Joseon Plants

1937), a list of plant names with Korean names.

He also published or participated in several other

books and academic papers (Lee, 2012). He was

abducted by North Korea during the Korean War

and never saw his family again.

Chanyoung Jung, Toh’s wife, was a pioneer,

becoming an established painter during a time

when it was rare for a Korean woman to do so.

She won several awards at

朝鮮美術展覽會



(Joseon Art Exhibition, an art contest held during

the Japanese colonial period) and painted lyrical

works with detailed depictions of natural objects.

Her representative works include paintings of

birds such as egrets, chickens, and peacocks, and

paintings of flowers such as water lilies, peonies,

irises, and chrysanthemums, which are traditional

Eastern  paintings.  She  developed  the  field  of

color painting within the context of mainstream

ink-and-wash landscape painting and pursued

the formative beauty of living things. In the late

1930s, she gave up painting because her second

son died of illness and her eyesight deteriorated,

working instead as a middle- and high-school art

teacher. Her achievements were mostly forgotten,

especially the taxonomic illustrations that she

did for her husband’s botanical research. After

their daughter Toh Chung-ae published books

that depicted their achievements in 2001 and

2003, their collaborations received recognition

by the Korean botanical and art academia and

were displayed to the public. Representatively,

Jung drew all 64 plant illustrations in Toh’s co-

authored book,

朝鮮植物圖說: 有毒植物 編

 (Taxic

Plants in Korea, 1948). The illustrations are black-

and-white line drawings, like those in current

botanical illustrations or papers, and include

partial diagrams of botanically important roots,

fruits,  and  flowers.  She  also  painted  botanical

background image

41

PSB 70 (1) 2024

drawings in her color painting style, which were

also made into large hanging scrolls for the

education of students. Jung’s plant illustrations

are unique in that they express Toh’s botanical

knowledge while incorporating her own painting

style at the time. She preserved the manuscript of

Toh’s illustrated plants of

韓國植物圖鑑:  草本部



(Korean Flora:  Second Volume for Herbaceous

Plants, 1956) during the Korean War, making its

publication possible after the war (Bae, 2019)

(Figure 1).

POK SUNG CHO:

A COMBINATION OF

OUTSTANDING ARTISTIC AND

SCIENTIFIC TALENTS

Pok Sung Cho had been interested in animals since

his youth

He was educated by Doi Hironobu (

居寬暢

), a natural history teacher who recognized

his talent when he was at

平壤高等普通學校

(currently a middle and high school established as

part of the Japanese colonial education policy in

Pyongyang, four-year school). After graduation,

he attempted to study entomology at a Japanese

Figure 1. (Left) Bong-Syup Toh and Chanyoung Jung. © Toh Chung-ae, Seoul, Korea. (Right) Illustrations for plant

taxonomy by Chanyoung Jung were known to the public through an exhibition Rediscovery of Korean Modern Art-

ist 1: When Brushes Are Abandoned at the National Museum of Modern and Contemporary Art at Deoksugung

Palace in 2019.

university, but he ran into policies and institutional

problems that discouraged higher education

for Koreans during the colonial period, and he

eventually became an elementary school teacher.

Professor Mori Tamezo

(

森爲三

) of Keijo Imperial

University, who came to lecture at the elementary

school where Pok Sung Cho works, recognized

Pok Sung’s insect specimens and extensive

morphological knowledge and helped him

conduct entomological research. After working

as an elementary school teacher for six years, Cho

became an assistant at Keijo Imperial University

and began research in earnest. He became an

entomologist because of the mentoring and

support of two Japanese scholars who recognized

his talent. At that time, cases like Cho’s were very

rare and fortunate. He was able to conduct his

studies across the entire Korean Peninsula as well

as Taiwan, China, and Mongolia with the support

of his Japanese teacher. After liberation, he served

as the director of the National Science Museum and

professor at Korea University and Sungkyunkwan

University. Through many field studies, he

collected, classified, and reported various types of

insects, including butterflies, moths, beetles, and

background image

42

PSB 70 (1) 2024

dragonflies. He studied the ecology and habitat

of insects and organized the names of insects

and entomological terms. He also conducted

research on animals other than insects and

published the first biology and zoology textbooks

in Korean. He was the first Korean to publish an

entomology paper



鬱陵島産鱗翅目

(Lepidoptera

from Ulleungdo Island) in 1929 and published 83

papers throughout his life. Beginning with

原色朝

鮮の蝶類

(Colored Butterflies from Korea, 1934),

he also published 22 books, including university

textbooks, encyclopedias of insects, and science

books for the public. In these works, he was able to

distinguish himself and prove his talent to Japanese

scholars via his artistry. All the butterfly paintings

in



原色朝鮮の蝶類

were drawn by him, and the

paintings in his papers and books are presumed

to be his (Kim, 2008). Cho’s original butterfly

illustrations were very small because they were

drawn in the size of actual butterflies, which is

different from the current general style of enlarged

illustrations so that the shapes of small insects

can be clearly seen. However, even at their small

sizes, he produced detailed and scientific drawings

sufficient to identify the species with excellent

drawing skills and a wealth of morphological

knowledge. He also wrote books for children and

teenagers, such as

곤충이야기

 (Story of Insects

1948) and

곤충기

  (About Insects, 1948), which

confirms his passion for education and his aspect

as a creator. Text and illustrations for books and

papers for the public are different from those for

academic reporting. In particular, he made books

for children and teenagers easy to understand and

interesting. He personified the characteristics of

insects, chose topics that would interest readers,

and wrote terminology to suit the reader’s level.

He attached illustrations showing the ecological

characteristics and anatomical structure of insects

(Jin, 2019) (Figure 2).

Figure 2. (Left) Pok Sung Cho © 관정장학위원회.  (Right)

Original illustration of butterflies drawn by Pok Sung Cho.

REBORN AS A PIONEER

THROUGH GENIUS

IN A TRAGIC SITUATION

As modern biology was introduced late in Korea, it

was very urgent to investigate and organize living

things throughout Korea. The research materials of

Toh and Cho are the foundation of Korean biology,

and later scholars have added to or modified

them based on their research. They gave Korean

names to native Korean organisms and produced

educational materials in Korean to train younger

generations. In Europe, where modern biology

began early, many living things were investigated

and drawn in the 17th and 18th centuries. However,

in Korea, which only accepted modern biology in

the 1900s, the current level of biology was reached

without that process. Photographs were used

rather than drawings, and there was a rush to

keep up with the flow of the world by embracing

new experimental technologies. During the

turbulent times, a lot of data were lost, and much

remains buried because of widespread ideological

conflict. The multidisciplinary creative art that

these three attempted is a significant discovery

in Korea, where it has only recently begun to be

widely recognized as an independent field. Their

pioneering results were judged to be of value as an

auxiliary necessity in biology, but they need to be

background image

43

PSB 70 (1) 2024

newly illuminated in the arts and multidisciplinary

fields. Jung’s paintings demonstrate her unique

style that combines oriental painting and

scientific illustration. Cho can be considered

the first Korean biologist to draw pictures at the

level of a professional scientific illustrator. Their

illustrations are an important asset in Korean

biology, but they are also an important asset in art

and multidisciplinary fields. The efforts of these

pioneers without interdisciplinary training need

to be studied along with those of similar pioneers

in other countries.

References

Bae, W. J. 2019. Chung Chan-young, modern female

painter, the color painting on flowers and birds. Korean

Bulletin of Art History 53: 7-33.
Jin, N. Y. 2019. A Study on Jo Bok-seong’s Insect-re-

lated Books Published in 1948: Focused on Story of

Insects and About Insects. Journal of the Korean Soci-

ety for Library and Information Science 53: 267-294.
Kim,  G.  2005.  The  emergence  of  modern  scientific

technology manpower in Korea. Seoul: Moonji Pub-

lishing.
Kim, S. W. 2008. The context of a Korean naturalist’s

career-building in colonial Korea: Cho Pok Sung as an

example of colonial entomologist. Journal of the Ko-

rean History of Science Society 30: 353-382.
Lee, J. 2012. Contested botanizing in colonial Korea

(1910-1945), conflicting visions of modernity emerg-

ing through colonial interactions between Korean and

Japanese researchers. PhD dissertation, Seoul National

University, Seoul.

background image

44

From the PSB Special Issue on Art in the Botanical Sciences

How Scientific Illustration Impacts

Presentation and Understanding of Plant

Adaptations at Multiple Scales

Sayeh Dastgheib-Beheshti

1*

Zane G. Long

Gemma R. Takahashi

and

Rachel W. Martin

2,3*

Abstract

Scientific illustration is an integral part of how

scientists communicate work to colleagues,

students, and the public. Historically, the

connection between biology and art was widely

recognized, because naturalists had to make

drawings to document their observations in the

field. However, despite its continued importance,

modern scientists generally receive little to no

formal training in effective visual communication.

On the other hand, artists, even those who are very

well equipped to produce accurate and attractive

representations of plants, may not appreciate all

of the subtle or even microscopic features that are

important to scientists.
Here, we discuss the interplay between art and

science using the example of a carnivorous

plant, Drosera capensis. We present strategies for

promoting effective communication between

1

Faculty of Environmental and Urban Change, York

University, Toronto, Canada



2

Department of Chemistry, University of California,

Irvine, CA, 92697-2025, United States of America



3

Department of Molecular Biology and Biochemistry,

University of California, Irvine 92697-3900



*Corresponding authors: rwmartin@uci.edu,

sayehdb@yorku.ca

artists and scientists, with examples of art

illustrating important features at different scales.

We also discuss how artists and scientists can

collaborate to engage the public and disseminate

results in an accessible manner.

Keywords

botanical drawing, carnivorous plant, chemically

specific imaging, in situ chemical analysis,

metabolites, protein structures, scientific

communication

INTRODUCTION

In scientific articles, illustrations and graphics

draw attention to particular features, simplify

complex systems, and reify abstract concepts.

High-quality visual elements can greatly enhance

the readability of scientific work, potentially

drawing students and colleagues to a study

species and widening scientific circles. Further,

effective scientific communication can engage the

public, enabling scientists to achieve goals such

as recruiting for community science projects,

promoting conservation efforts, or simply sharing

the joy of discovery and the beauty of nature. Even

though high-quality visualizations are central to

effective communication, very few scientists are

trained to produce them. Further, many scientists

do not know how to commission art on a practical

level, and connections between scientists and

artists may be difficult to forge because of the lack

of overlap between these communities.

background image

45

PSB 70 (1) 2024

Here we discuss some strategies for addressing

these issues, using the example of the carnivorous

plant  Drosera capensis L. (Slack, 1979). Drosera

capensis, a native of the Cape region of South

Africa, grows in wet environments with poor

soil. Its long, strap-like leaves are covered with

glandular trichomes, each of which is tipped in a

drop of sticky mucilage. Once an insect is trapped,

trichomes adjacent to the contact area curl to cover

and further trap the insect. In cases where the

insect is larger and continues to struggle to escape,

the leaf blade itself curls around the prey, further

immobilizing it and maximizing surface area for

digestion. The digestive process is fascinating from

a molecular perspective; unlike in animals, plant

digestion takes place in the open, under ambient

environmental conditions, and in competition

with bacteria and fungi that cannot only steal the

nutrients from the prey, but potentially infect the

plant, causing disease. The plant manages these

difficulties using biochemistry. When stimulated

by prey acquisition via the jasmonic acid pathway,

the leaf secretes hydrolytic enzymes that break

down insect tissue, as well as antimicrobial peptides

that protect against infection. These processes are

mediated by a host of small-

molecule signals.

Thus, D. capensis presents a challenging variety of

adaptations to illustrate, spanning a range of length

scales from the macroscopic to the molecular.

CROSS-POLLINATION

The first obstacle to communication between

scientists and artists is that they often simply do

not know each other. Academic communities are

often fragmented or siloed, and making trans-

disciplinary connections is difficult. Further, field-

specific norms for how original work is presented

and credited can make it difficult for academics

in different fields to collaborate. Initiatives such

as this special issue of the Plant Science Bulletin

provide opportunities for joint work, but it is still

necessary for collaborators to find each other. We

have found in-person or online hobby groups

useful for this purpose: S.D.-B. and R.W.M. first

met in an online group devoted to growing African

violets; we then worked together on a series of

articles published in Chatter, the newsletter of the

African Violet Society of Canada. Hobby groups of

this type are excellent for introducing people with

very different backgrounds, but with a common

interest in plants. They attract a mix of hobbyists,

practitioners (e.g., professional horticulturists and

landscapers), and other members of the public.

We do not endorse any specific social media sites

here because their popularity waxes and wanes,

but online groups are often very active and can

have diverse members from all over the planet.
Another model for successful interaction is one

where scientists commission artists to produce

compelling visualizations for their publications

and presentations. Informal discussions with

other scientists (by R.W.M.) have revealed that

many do not know how to find an artist to work

with, believe the costs to be prohibitive, and/or

find the process of commissioning custom art

intimidating. Although hiring an artist as a full-

time member of the team is indeed beyond the

budget of most research labs, many offer one-

time commissions at affordable prices. Depending

on the agency, these expenses can sometimes be

covered by the communications budget of a grant,

or unrestricted funds can be used. Artists can be

found on online social networks, where those who

are open to performing work for hire will generally

indicate this with a “commissions open” tag on

their profiles. Websites designed for creators to

find patrons (e.g., Patreon, Etsy, or guru) offer

another way to hire artists for specific projects.

Producing artwork is time-consuming and may

require multiple rounds of editing; therefore, it is

important to commission the drawings as early

in the writing process as possible in order to

minimize the time to submission.
After finding an artist whose style fits the desired

work, the next step is to inquire about price. It

is important to be as specific as possible about

the subject of the piece, the required size, any

particular features that should be emphasized,

and what it will be used for. The latter question

background image

46

PSB 70 (1) 2024

is critical, since

many artists only allow certain

types of usage or charge different fees for

different types of licensing. For example, a

design that will be used in a scientific paper

may have a different price than one that will

be used as a logo for a commercial website.

It is best to discuss all potential use cases

up front to avoid misunderstandings. For

scientific papers and presentations where the

artist is not a co-author, the best practice is to

acknowledge them for creating specific figures

or parts of figures in the acknowledgments.

DRAWING ON THE HERITAGE OF

BOTANICAL ILLUSTRATION

Before the advent of high-quality photo and video,

botanical illustration was essential for sharing

knowledge about the discovery, basic morphology,

and ecological context of new plant species. Most

students did not have the opportunity to travel to

see their study species and had to make do with

dried herbarium specimens. Detailed drawings

helped fill the gaps between the preserved

specimens and the living plant. Although

humans have been drawing plants since before

recorded history, botanical illustration, along with

preserving specimens in herbaria, became more

systematized in the 18th century, particularly

after Carl Linnaeus introduced his classification

system, the Systema Naturae (Thiers, 2020; Blunt,

2021).
Because drawing was considered a suitable

occupation for young women in a time when

their options were otherwise limited, this is an

area where women could participate in science

before they were allowed to do so in other ways.

For example, Elizabeth Blackwell, better known

for her status as the first female physician in the

U.S., published an illustrated book of medicinal

plants in order to finance her husband’s release

from debtors’ prison (McDowell, 2023).

IMAGING ACROSS MULTIPLE

LENGTH SCALES

One of the biggest challenges in imaging plant

samples and conveying the information we learn

is that the key features occur on very different size

scales. Just as the earliest botanists did, we need

to show pictures of the whole plant, preferably

in the context of its habitat, but also close-ups

of individual organs such as leaves and flowers.

We need systematic protocols for showing all of

these things in the diagrams. In addition to the

accuracy of the representation, selecting and

editing appropriate features and characteristics

play an important role in drawing the reader in,

generating enthusiasm for the study species and

supporting conservation efforts.
Features of interest are sometimes difficult to

notice in even a high-quality photo without

visual cues to draw attention to them. For

example,  D. capensis is a relatively large, showy

plant with long, dramatic flower scapes (Figure

1), but many of its important features (e.g., the

trichomes bearing sticky mucilage), are very

small. Further, a typical plant will not display all of

the significant characteristics, such as blooming,

seedpod formation, or trapping and digesting

insects, all at the same time; therefore, creating an

illustration that showcases these characteristics at

the same scale is extremely useful for providing a

holistic overview of D. capensis. Figure 2 shows a

botanical illustration of D. capensis created with

Adobe Illustrator vector-based digital illustration

software using live plants and pictures for

reference. Although this diagram is traditional

in most respects, it also includes structures of

proteins that were discovered from the D. capensis

genome (Butts, 2016) and are thought to be

important during feedin

g.

Vector-based graphics

use shapes, curves, and lines that do not lose

resolution when enlarged. In the past, S.D.-B. has

used traditional media (paper, graphite pencils,

and watercolor) to draw botanical illustrations

with the final illustration scanned and stored as

a raster image, comprising individually colored

background image

47

PSB 70 (1) 2024

pixels that limit the final resolution

and possible

edits. The highly detailed and repetitive

features of D. capensis as well as the need for

constant communication with the scientists

during the generation of the imaging process

diagrams led to the selection of the non-

traditional vector-based illustration tool for

this collaboration. Figure 3 illustrates how

vector-based software allows for enlarged

views of details without the loss of resolution,

as well as enabling details such as colors to be

changed easily.

Figure 1. Photo of several Drosera capensis plants in cultiva-

tion with a U.S. penny for scale.

Figure 2. Traditional botanical drawing with additional

features of varying length scales, including proteins pro-

duced by the plant.

Figure 3. Detail of Figure 2B, with a leaf wrapped

around a fly. This expanded image shows how the vec-

tor-based software allows for enlarged views of details

without the loss of resolution and enables adjustment of

the colors for different purposes.

background image

48

PSB 70 (1) 2024

VISUALIZING THE INVISIBLE

The length scale problem is even more pronounced

when we focus on chemical adaptations. Plants

are talented and prolific biochemists: they have

produced many of our medications, from the

earliest (e.g., salicylates from willow bark) to the

most sophisticated (e.g., taxol) (Verpoorte, 1998;

Lautié, 2020). These molecules have fascinating

structures and play important roles in our society,

yet our representation systems for displaying

them are complex and difficult for non-experts

to appreciate. A study of cultural overlap among

different fields has found that molecular biology is

highly intellectually isolated from other disciplines

because of the barriers presented by its specialized

terminology (Vilhena, 2014). Carefully chosen

visualizations can help bridge this gap, from

highlighting important parts of molecules to using

visual analogies to explain molecular function.
To explore the challenges of communication about

complex scientific concepts, we chose to illustrate

the example of plant tissue imaging conducted

using matrix-assisted laser desorption/ionization

mass-spectrometry imaging (MALDI-MSI),

which was recently applied to D. capensis (Long,

2023). This chemical imaging method maps

the spatial distribution of molecules on the leaf

surface. Figure 4 shows the process of generating a

scientifically accurate schematic of the experiment.

The creation of this diagram required extensive

discussion. First, R.W.M. provided a general

description of how the experiment works, with

molecules being extracted from the leaf surface

and sorted by mass. S.D.-B. then drew the diagram

in Figure 4 (top). The scientific team (R.W.M.,

Z.G.L., and G.R.T.) then discussed the image and

concluded that it did not accurately represent the

experiment, as molecule collection and separation

happen in discrete steps (Figure 4, center). Finally,

S.D.-B. incorporated this feedback to create the

final image in Figure 4, bottom. The fact that

the scientific and artistic collaborators are not in

the same physical location added an additional

challenge; this was addressed using a combination

of videoconferencing, photos of the experimental

apparatus, and sketches of the desired image.

CONCLUSION

Artwork has always been central to the practice

and dissemination of botany. Accurate and

evocative drawings not only enable scientists

to show and highlight important plant features,

but also generate interest in and respect for

their study species. Collaborations between

scientists and artists can improve the quality of

scientific communication while also forging new

connections across disciplinary boundaries.

Author Contributions

R.W.M. designed the study. R.W.M. and S.D.-B.

wrote the first draft of the manuscript. S.D.-B.

created all vector graphics. Z.G.L. provided small

molecule data, took the photo in Figure 1, and

contributed to image design. G.R.T. provided

protein sequence data and contributed to image

design. All authors edited the manuscript.

Acknowledgments

This work was supported by a Graduate Proposal

from the Undergraduate Research Opportunity

Program at University of California, Irvine, to

Z.G.L.

Conflict of interest

The authors declare no competing interests.

background image

49

PSB 70 (1) 2024

McDowell, M. and J. S. Tyson. 2023. A curious herbal: Eliza-

beth Blackwell’s pioneering masterpiece of botanical art. Ab-

beville Press Publishers, New York, USA.
Slack, A. 1979. Carnivorous plants. MIT Press, Cambridge,

Massachusetts, USA.
Thiers, B. M. 2020. Herbarium: The quest to preserve and clas-

sify the world’s plants. Timber Press, Portland, USA.
Verpoorte, R. 1998. Exploration of nature’s chemodiversity:

The role of secondary metabolites as leads in drug develop-

ment. Drug Discovery Today 3: 232–238.
Vilhena, D. A., J. G. Foster, M. Rosvall, J. D. West, J. Evans,

and C. T. Bergstrom

.

2014. Finding cultural holes: How struc-

ture and culture diverge in networks of scholarly communi-

cation. Social Science 1: 221–238.

Figure 4. Illustration demonstrating the process of making a diagram showing how chemically specific imaging is performed to map

the spatial locations of small molecules on a leaf. This diagram required edits for accuracy. (A) Initial diagram of the experiment

drawn by S.D.-B. based on a description from R.W.M. (B) Sketch by Z.G.L. showing how introducing the molecules into the instru-

ment happens in a separate step from sorting them by size. (C) Final schematic showing the key experimental steps.

References

Blunt, W., and W. T. Stearn. 2021. The art of botanical illus-

tration. ACC Art Books, Royal Botanical Gardens, Kew, UK.
Butts, C. T., J. C. Bierma, and R. W. Martin. 2016. Novel pro-

teases from the genome of the carnivorous plant Drosera

capensis: Structural prediction and comparative analysis.

Proteins: Structure, Function, and Bioinformatics 84: 1517-

1533.
Lautié, E., O. Russo, P. Ducrot, and J. A. Boutin. 2020. Un-

raveling plant natural chemical diversity for drug discovery

purposes. Frontiers in Pharmacology 11: 397.
Long, Z. G., J. V. Le, B. B. Katz, B. G. Lopez, E. D. Tenenbaum,

B. Semmling, R. J. Schmidt, F. Grün, C.T. Butts, and R. W.

Martin. 2023. Spatially resolved detection of small molecules

from press-dried plant tissue using MALDI imaging. Applica-

tions in Plant Sciences 11: e11539.

A

B

C

background image

50

From the PSB Special Issue on Art in the Botanical Sciences

An Abstract Scientist: Embracing

Art as a Tool for Science Education

Patricia Leyva

Art is essential for the spread of scientific

knowledge. In botany, for instance, anatomical

illustrations of plants are imperative to

understanding the physiology, morphology, and

evolution of diverse plant species. Before the

invention of cameras and the advanced imaging

we have today, botanists relied on the precise

illustrations of plants. Sixteenth-century German

herbalist Leonhart Fuchs states in his publication,

De historia stirplum, “Those which are explained

and depicted to the eyes on panels or paper adhere

to the mind more deeply than those described

by bare words” (Kusukawa, 1997). Fuchs's work

was highly influential and set a high standard for

botanical illustrations. Understandably, scientific

illustrations must be accurate and meticulous.

For instance, illustrations in herbal books, like

that of Fuchs, were used to correctly identify

medicinal plants. In the 16th century the accurate

identification of medicinal plants was a matter of

life and death. However, because of the advanced

imaging of today, scientific illustrations can now

serve a different purpose.
I believe that art can be used as an outlet to

process and express complex science ideas.  My

career goal is to be an educator; however, as a

person with attention deficit disorder (ADD), it is

challenging for me to process and communicate

complex ideas using words. Through art, I use

my imagination and creativity to overcome this.

As both a scientist and an artist, I enjoy creating

drawings that defy the laws of nature. For instance,

my ideas for drawings of herbs are far from

accurate. I envision turmeric as a sunset whose

rays of light penetrate the soil forming a glowing

web. The sunset, for me, represents the color of

turmeric and the penetrating rays of light into the

soil remind me of the benefits of turmeric for the

skin and as an antioxidant. As an undergraduate

taking biochemistry, I would study the ten steps

of glycolysis by visualizing a candy bar going

through a conveyor belt and being broken down

to its different components.
I am currently working on earning a PhD in plant

biology, and my work focuses on the transport of

organic acids in plants to aid in the resistance to

metal toxicity. My drawing The Gateway into the

Cell (Figure 1) is of a cell membrane transporter

background image

51

PSB 70 (1) 2024

as a massive gate made of unique blocks that

affect what passes in and out of the cell. I instruct

a botany laboratory course for undergraduates,

and I advise them to study by thinking of creative

connections among the course material. Also, I

want to communicate the purpose of my research

in a meaningful and unique way to my students.

In my drawings, I see the beauty of a biological

process, which validates my work’s meaning.

Biology is an art, and that captivates me. I want

people to be intrigued by an eccentric drawing

of cellular transport and curious about how the

process works and why it is essential. My goal as

an educator, scientist, and artist is to sow a creative

seed in the scientific minds of my students.

Figure 1. Leyva, Patricia. The gateway into the cell. 2023 Ink draw-

ing. “Drawing of a plant cell with a membrane transporter resembling

a gate for which selected substrates pass through the lipid bilayer into

the cell.”

References

Kusukawa, Sachiko. 1997. Leonhart Fuchs on the Importance
of Pictures. Journal of the History of Ideas 58: 403–427.

background image

52

From the PSB Special Issue on Art in the Botanical Sciences

Three Plants, Three Practices:

Botanical Allies and the Creative Process



I’m a non-traditional scientist. I didn’t get my start

as a fresh-faced teenager with a science degree;

I meandered and took back alleys and talked to

plants, arriving at the start of my botany Master’s

degree with silver streaks visible at my temples. I

have neurodivergencies that prevented me from

walking a straight line, and a queerness that never

let me belong there anyway. These experiences

allowed me to merge creative practices with the

world of plants and opened the doors for me

to their realm. Over the course of three plants,

I’ll discuss the ways three different art and craft

practices enabled me to develop bonds with

plants and the importance these non-quantifiable

connections have for our mental health, our sense

of belonging, and our connection to the plants.

Peri Lee Pipkin

I. DRAWING: SAGEBRUSH

The great silence of Oregon’s high desert caught

me off guard. A hushed expansiveness only

interrupted by a snapping twig, the footsteps of

the group, the occasional grove of flustered aspen.

I had never seen an openness like this before. I’d

arrived only days earlier from a city crawling with

vines and air thick with the aroma of fried food

and exhaust, with movement a constant, and I was

now waist-deep in sagebrush. I’d never carried a

hiking pack before, and I’d never been around so

many loud and confident Americans, but I was

thirsty to join the pack. Very rapidly, it was made

clear I wasn’t going to make the cut. I talked too

fast or didn’t talk at all, I wasn’t from there, wasn’t

interested in boys, was too different. The list of

lacking went on. I’d spent most of my life as an

outsider, a foreigner, and here I was in the place

that was advertised as this land that accepted all,

and I didn’t belong here either.
As the trip went on, the nights in the tent began

to feel like eternities. At dusk, we were supposed

to be reflecting and journaling, but dwelling on

the experiences of the day felt suffocating. I’d

stopped sitting near the group, sore from their

slicing comments and instead would slink off into

the sagebrush and lay low. At dusk, a habit began

to settle in: pick the slender flowering tops of the

sagebrush, only the softest. Climb into the hand-

me-down sleeping bag. One bundle of leaves and

flowers under one armpit, another under the

other, for freshness. One small bundle to hold

and to smell. Roll onto stomach, open notebook.

background image

53

PSB 70 (1) 2024

Mechanical pencil to scrappy notebook paper.

From there, small lobed leaves sprouted between

notes and half-finished thoughts. Detail, detail,

detail. The curve of the leaf tips, the tiny flowers,

the texture of bark, small things that made the jeers

of the group anchor under my skin less deeply. It

made the human world, a world proving to me

more and more unforgiving with its boundaries

of acceptance, fall out of view. In a way, sitting

with sagebrush and moving my pencil across

the pages was where I first learned to meditate.

That plant spoke to my teenage loneliness, its

continued presence becoming a friend. It was in

that tent that I learned that botanical drawing is

an experiment in intimacy with the plant world.

It forces you to notice the small details, and it

forces you to be present with the plant. It elevates

your experience with a plant from just something

of interest growing in the landscape to an entity.

Maybe this is just the first step in seeing the plant

world outside of the linear boxes so many of us

have drawn and fit ourselves into.

II. PIGMENTS: POKEWEED

Keep moving. Throughout my early 20s, those

words felt like excellent advice. Hitch a ride, try

a city out for a while, hop a train, meet some new

people, admire some weeds. I felt as if I stopped

moving, my blood would stop flowing. To be

honest, I don’t know how many houses I lived in

during this time, or if some of those structures

even counted as houses. All I knew was that there

wasn’t really anywhere in particular I belonged

to, and there wasn’t anywhere in particular I was

headed. In Oakland, I moved into a dilapidated

punk house and impulsively enrolled in a

community college course called “Alpine Labs.”

Before I knew it, I was in a well-loved rental van

headed to the Eastern Sierra in a group of Bay

Area community college students. I had slept

outside many times since my last backpacking

trip as a teenager but hadn’t officially been tent

camping since then. Memories of that trip flooded

in, and I felt a heightened anxiety and impulse to

isolate myself and turn to the plants. However, I

quickly realized that aspiring botanists are equally

as interested in focusing on the plants, so I was in

good company. Throughout that week, I got the

opportunity to slow down and sit with the plants

and some of the people that love them.
Returning to the city, I felt a less urgent sense to

go. I thought about the plants I’d walked right past,

without the opportunity to get to know them.

I thought about all the places I’d fled based on

narratives I’d constructed for myself. That’s when

I noticed it: glowing magenta berries hanging in

neat clusters. The lanky plant reached through the

chain link fence of an abandoned lot filled with

the ruins of smashed electronics, dangling their

fruits across my path. I stopped and inspected

the berries. “Poison!” My roommates warned.

“But a nice ink!” Another added. Intrigued, I

clipped some clusters and brought them home

to experiment. After smashing them in a mortar

and pestle, I added vinegar and salt—the advised

binders and preservatives. From my paintbrush

flowed a color so saturated and unrealistically lush

that I felt like I had unlocked a secret. What colors

were hiding in the plants? What would the plants

show me if I slowed down long enough to listen

to them? Did they tell their stories in colors and

aromas rather than through sounds and words?

By slowing down and taking the time to work

with the plants, the plants can reveal their hidden

stories through their language of pigments. If

such vibrancy can find its way up through a trash-

filled empty lot, how can I let my own vibrancy

rise through my own personal challenges? Maybe

rooting somewhere long enough to learn the

colors of the landscape can help us ground when

we feel groundless.

background image

54

PSB 70 (1) 2024

III. DYEING: CREOSOTE

Of all things to finally tie me down, it was the

Mojave Desert and the smell of creosote during

the rain. From my window in the Mojave, my

world was composed of the scattered shrubs,

ephemeral desert dandelions, and cactus wrens

calling from their fortresses of cholla cacti. I

didn’t want to be anywhere where the grounding,

calming aroma creosote wasn’t. In a moment of

what was either extreme clarity or the beginning

of a mental break, I realized if I just soaked all my

clothes in creosote, that aroma could follow me

throughout the day. From this evolved a practice of

natural dyeing. Sitting with the plants, simmering,

soaking, fermenting, experimenting. Mordant?

No mordant? Less plant material? More time?

Once an energetic herbalist told me that creosote

essence shines light into our darkest corners, and

as I sat over the steaming bath of leaves, I thought

about the dark corners of myself that could stand

to be illuminated and sun-baked.
There is no scientific backing for her statement

or for my experience, but through this time

experimenting with the plant in an intuitive

way, I felt a new boldness and acceptance when

considering my anxieties and alienation. I suppose

creosote is colloquially called “The Governess”

for more than one reason. Wearing the sun-hued

fabric dyed with the creosote made me feel like I

was walking with the strength of the high winds of

the desert and energy of the flash floods. I felt like I

could walk with the plants that spoke of unbearable

heat and untempered resilience. This outfit of

botanical armor I’d created through dyebaths and

my friend the creosote bush taught me that the

plants are here for us, they are part of us. They are

here despite us. The plants disrupt the neat boxes

society constructs for both them and us. Plants

are energetic, sensual, magnetic, mysterious. They

encourage us to explore past what we know to

be true and don’t always offer us reasons why we

should. As plant scientists, we define exploration

as systematic testing, experimentation, and

observation—but what about the non-quantifiable

experiences with plants? How can we measure the

way a vegetal fragrance or certain shade of ochre

makes us feel? Is our unspoken sense of belonging

among the plants something to hide from our

scientific peers? Is a relationship with the plant

off-limits? Craft and art can bridge the gap. The

title “scientist” doesn’t mean the paintbrush is a

forbidden tool or that bending a willow branch

into a basket is a baseless act. Ultimately, there is no

singular creative practice that forges a connection

with the plant world; it’s simply the presence of a

creative practice that admits us passage between

worlds. Cultivating these creative practices and

being open to where these practices lead us is

critical to understanding the interwovenness of

being a human on this planet, and illuminating

this interwovenness is critical in working to

conserve a biodiverse future.

background image

55

From the PSB Special Issue on Art in the Botanical Sciences

Plant Motifs Depicted in Kutch Embroideries

and Its Integration in Sci-Art Collaborative

Educational Models in the

Indian Educational System



Kruti Dholakia, Ph.D

Associate Professor, Department of Design Space,

National Institute of Fashion Technology, Gandhinagar,

Gujarat, India

Email: krutidholakia@yahoo.com

Abstract

India holds evidences of the oldest civilizations;

the country has an abundance of the traditional

knowledge and intangible cultural knowledge

to take account of. In present times of rapid

technological advancements and urbanization,

there are chances that if not documented and

integrated in right directions, we may lose the

treasure of intangible cultural knowledge and

traditional knowledge of the country. Thus, in

the present study the attempt has been made to

document and conduct visual analysis of plant

motifs depicted in Kutch embroideries; the out-

come of the analysis is further used to suggest the

path to integrate such important knowledge and

skills into formal education system at all levels

considering the national education policy.

Keywords

Craft, intangible cultural heritage, national

education policy, traditional knowledge

“Knowledge and practices concerning nature

and the universe include knowledge, know-

how, skills, practices and representations

developed by communities by interacting with

the natural environment” (UNESCO, 2023).

This kind of thought process is expressed through

various mediums such as language, oral traditions,

and memories. A community’s relationship with

nature also influences its values and beliefs, which

may in turn be the source of its social and cultural

practices and rituals. Included in this category of

knowledge and practice is the wider spectrum of

traditional knowledge, including of local flora and

fauna (UNESCO, 2023). Since evolution, plants

and humans have long maintained a symbiotic, yet

complex, relationship (Pandey, 2020). Not only are

plants a source of oxygen, sustaining human life,

but also as a source of food, medicine (Bamin and

Gajurel, 2015), and other useful resources such

as a source of dye for cloth and body decorations

with flowers (Romph, 2023). Humans have

interwoven plants into their culture and rituals,

background image

56

PSB 70 (1) 2024

especially in India, where there is a tradition to

worship nature and plants (Swaminathan, 2015;

Nath and Mukherjee, 2015). Many parts of plants,

whether leaf, stem, roots, fruits, or flowers, are

an important part of several Indian customs and

rituals (Bamin and Gajurel, 2015; Kumar and

Kumar, 2005). Studying the relationship between

human and plant, as well as humans’ influence on

and influence by the plant world is an important

branch of research known as “ethnobotany,” where

“ethno” refers to the people, culture, a culture’s

collective body of beliefs, aesthetic, language,

knowledge, and practice, and “botany” refers to

the study of plants (Humphrey, 2022).
Indigenous communities, apart from ritualistic

inclusion, celebrate and value nature’s treasure,

such as plants and fauna, by paying respect to

the natural world in various ways. For instance,

plants’ forms and shapes are depicted in many

art and craft forms in stylized renditions by these

communities. Various plant forms are widely

seen in forms such as cave paintings, metal and

stone carvings, and printed textiles (Prajapati

and Tiwari, 2021). These depictions have been a

way to pass on knowledge of useful and culturally

important plants to the next generations.
With the aim to document the knowledge and

creative depiction of plant knowledge of artisans

in these communities, efforts have been made to

study the various parts of plant-inspired motifs

depicted in embroidery, as an integral part of the

cultural and social identity of Kutch communities

(Sabnani and Frater, 2012). For these communities,

the embroidery, though simple, can be symbolically

interpreted as a medium to express emotional

bonding with children, a welcoming gesture to

daughter-in-law and son-in-law, or as a token of

infinite affection for grandchildren. The artists

creating this embroidery can also be understood

and appreciated much beyond their fine-motor

skills—their craft is a demonstration of their

fabulous representational capabilities, which turn

botanical forms into a piece of art—which from

a memory-stored image transforms into stylized

renditions through these artisans’ imagination

and creativity. Above all, artists’ work may be

interpreted as their love toward nature, which is

translated into embroidery and then transformed

into, for example, a reflection of a mother’s love

to her children and family members. Based on

this visualization, representation, imaginative,

creative, and reflective peripheries, the second

part of this article attempts to describe and discuss

the relationship between art and science, the

application of such handicraft techniques to teach

and document practices and species in the areas

of science and technology, and its implications for

incorporation into education pedagogies.

ABOUT COMMUNITIES

OF KUTCH

Kutch is known as a plethora of crafts, including

embroideries. Table 1 explains the details of the

communities who practice embroidery. These

communities migrated from various Middle

Eastern regions and from other regions of India in

the distant past to settle in Kutch. They continued

practicing this beautiful craft even after migration.

Many communities also exchanged embroidery

styles and cultures either during migration or

cohabitation.



Methods and Tools

Secondary research was conducted by referring

to various online and offline sources. Interviews

coupled with observation and photographic

documentation were used to collect data regarding

plant motifs embroidered by various communities

through purposive sampling technique for

conducting primary research. Visual analysis

was conducted following the principles of art and

design to interpret or correlate with the source

of inspiration or the plant of resemblance. The

outcome of the visual analysis has been co-related

with the particular area of science and technology

background image

57

PSB 70 (1) 2024

Sr.

No.

Community

Region of Migration

Region of Habitats in Kutch

1.

Halayporta

Sindh

Banni

2.

Raysi potra

3.

Pathan

4.

Mutwa

Banni, Nakhatrana

5.

Node

Iran

Banni

6

Darbar

Sindh and Rajasthan

Makhatrana, Abdasa, Lakhapat

7.

Meghwar

Banni, Bhuj

8.

Sindhi memon

Sindh

Bhachau, Rapar

9.

Jat

Baluchistan

Banni, Nakhatrana, Lakhpat

12.

Ahir

Mathura

Bhuj, Anjar

15.

Rabari

Jaisalmer via Baluchistan and

Afghanistan

Bhuj, Anjar

Table 1. Kutch Communities’ region of migration and current regions of habitats (Pandya and Dholakia, 2013).

for putting forward the ideas of integrating  sci-art

in teaching learning models.

Results

The analysis of the data revealed the fact that the

communities took inspiration from the various

parts of the plants, which were rendered stylistically

or metaphorically. Flowers, fruits, vegetables,

leaves, and stems served as an inspiration. Figure 1

represents various plant-inspired motifs depicted

in distinct styles.

Observations and Interpretations

The majority of the floral motifs that were depicted

with white color may indicate the original color

of the flower that was a source of inspiration, or

may indicate that the actual color of the flower was

forgotten, with white used as a standard filling.

There is also the chance that, considering the

scarcity of dyeing material, colored threads were

avoided because of their high cost. However, it is

difficult to be convinced that all the communities

drew inspiration from the same source, or that

the overlap in imagery was a mere reflection of

cohabitation and copying the motif and depiction

from each other. Another prominent fact that

comes across is many of the floral motifs’ sources of

inspiration were unknown, which may be another

reason to depict the flower motifs in white—a

conscious decision taken by communities to not

misguide the viewer. The stylization of the motif

form may have taken place to match with the

particular embroidery style, overall look, as well

as the stitches used in the particular embroidery;

ultimately it would have been resultant of the

artisan’s creativity and imagination.
Depiction of floral motifs such as Bhori ful clearly

shows the imagination capabilities of the artisans,

where they knew the art of stylizing the motifs

according to the space available. The motifs also

serve as a sampler to demonstrate creativity; as

with the same core form, infinite renditions were

observed across the communities.
Visual analysis of all the motifs clearly shows

that the artisans possessed explicit and implicit

knowledge of elements and principles of design

and geometry. Perfect divisions of the available

space to create motifs and balanced color palettes

were evidence of the same. Certain motifs such as

depiction of Farai, Kharek, Jhad, or Aambo were

background image

58

PSB 70 (1) 2024

Figure 1A. Visual and textual details of plant-inspired motifs.

background image

59

PSB 70 (1) 2024

Figure 1B. Visual and textual details of plant-inspired motifs.

background image

60

PSB 70 (1) 2024

the best example of abstract stylization of the

motifs, where the inspirational source has been

depicted metaphorically.

SCIENCE-ART COLLABORATION

AND ITS INTEGRATION IN

EDUCATIONAL MODELS IN

INDIAN CONTEXT

Emei Ma has defined sci-art as “any creative

expression where the intent of the artist is to

convey an observable understanding of the

physical universe.” Application of art to depict

scientific forms is as old as the works of Leonardo

de Vinci, who used techniques from both of

the fields to develop and understanding of the

world (Pappas, 2021). Art is thought of as more

related to the processes of ‘creativity-imagination-

visualization’; similarly, science learners imagine

abstract forms and formulas while learning

about scientific concepts. Collaboration between

the two fields makes the scientific concepts of

the world understandable (Powers, 2020). Such

concerted collaborative residency models and

platforms are already in function across the globe

(Beeton, no date; Benko, 2020), where scientists

and artists work together to develop science-

based artistic 2D and 3D models that can help in

improving the understanding and interpretation

of both the fields. Taking directions from such

examples, it is highly important to integrate

India’s traditional knowledge system and heritage

into the formal education systems of the country,

especially now when India is implementing

the National Education Policy-2020 with focus

on holistic, integrated, enjoyable and engaging

learning pedagogies (National Education Policy,

2020). A pilot project can be conceived, keeping

in mind these floral embroideries or similar

motifs and the artisans of such art forms, which

can be incorporated in educational pedagogies

at all levels of education starting from early

education level to adult education. Art forms,

traditional knowledge, or indigenous practices

attracting specific age group or demographic

populations should be selected to make science

and mathematics concepts and theories-related

learning more relatable, which will further foster

encouragement, motivation, and enthusiasm

to study particular subjects. Additionally, such

initiatives will encourage the artisans through

economic empowerment and will motivate their

next generations to continue crafts. Moreover,

such models of education will further impact

classroom absenteeism positively (National

Education Policy, 2020) with increased interest

and motivation among learners to attend class

with more keenness and concentration.
To quote an example, a color trend workshop

was organized by National Institute of Fashion

Technology (NIFT) Gandhinagar in 2014 at a

national craft fair and summit (Joshi and Chopra,

2014), in which I (author) was a part of the team.

The aim of the workshop was to make Indian

traditional crafts artisans aware of how design

houses plan and execute new designs based on

forecasted trends. Tuning with artisans’ mindsets

and way of thinking, the workshop had put up

European forecasted stories transformed into an

Indian context and more specifically made so

that it would be closely related to the artisans.

The workshop also hoped to show them ways to

forecast and create their own trend stories. As an

extension of this outreach, a rural women’s cluster

to whom SOACH, a nonprofit that works to

impart skills, was also invited to participate. One

of the exercises in the workshop was to choose

one poster (from a series of posters), comprising

a collage of images that contained farms, natural

sceneries, local flora/fauna, etc. and pick a palette

of colors from the images, in the order of their

color dominance. After returning to the village,

SOACH asked the women for their learnings and

observations. One of the women commented

on how many different whites there are in the

color white.  This was an especially perceptive

observation that even most design students miss.

Following this response, Ms. Jaai Kakani, founder

background image

61

PSB 70 (1) 2024

of  SOACH, asked the cluster to identify all the

things white in their village and integrate them in

their work, creating a series of hand-embroidered

pieces of all things white in the village. Ms. Kakani

during an in-person conversation explained that

“this had a twofold transformative impact. Firstly

it encouraged the women to lead their creative

process by observing and seeking inspiration from

their environment and experiences rather than

repeating old traditional craft identities. It also

inspired them to look at and create a whole new

vocabulary of design motifs and color palettes.

The series was a delightful treasure trove of

hand-embroidered whites—from rice and cotton

in the fields, to clouds, rain, ducks, garlic, the Jasmin

flowers, and more! It was also a big departure from

the normative colorful bright vistas of the artisans.

Yet, the very urban and contemporary fondness

for white looked equally at home in this bucolic

rural landscape because it truly was from that

environment. Design principles and trends are

most often difficult to aesthetically grasp and can

look awkward and borrowed even for veterans; but

when they emerge from the depth of experience

and observation, they can be transformative, both

for the creator and the observer.”
In higher education, a research-based approach

can be adopted, taking motifs depicted in the

current study as a reference; a team of embroidery

enthusiasts and botany researchers can also

undertake research to identify similarities in

depicted motifs and the plants grown from the

regions of these communities’ migration and

across the route they have followed to reach India.

CONCLUSION

Stylistically depicted plant-inspired motifs in Kutch

embroidery serve the purpose of documentation

of plant species and may also serve as a clue

to botanical knowledge for future generations,

although a gap of uncertainty of sources of

inspiration can be bridged by combined research

from both fields. For a country like India, which

on one hand possesses evidence of ancient cultural

and intangible heritage and on the other hand is

an emerging technological hub (especially with

the implementation of its National Educational

Policy), the boundaries between art and science

are again merging. Holding multidisciplinary

expertise is a dire need during this time. There

is no doubt that sci-art for education and sci-art

initiatives have a huge scope in the future. It is

believed that the suggested examples in the present

paper will surely be helpful in implementing sci-

art–based teaching learning models in India and

around the world.

References

Bamin, Y., and P. R. Gajurel. 2015. Traditional use and con-

servation of some selected plants used in festivals and rituals

in Apatani plateau of Arunachal Pradesh, India. International

Journal of Conservation Science 6: 189-200.
Beeton, B. (n.d.). Sci art; communicating science through art.

Website: https://sciart.com.au/.
Benko, R. C. 2020. Why science needs arts. Website: https://

www.smithsonianmag.com/blogs/national-museum-of-natu-

ral-history/2020/04/15/why-science-needs-art/.
Humphrey, S. J. 2022. Ethnobotany - A Relationship between

People and Plants. Website: https://botanicalatelier.co.uk.
Joshi, R., and N. Chopra. 2014. Report on NIFT Trend fore-

cast pavilion & workshop for crafts. Gandhinagar [unpub-

lished report].
Kumar, N., J. I., H. S., & Kumar, R. N. 2005. Aesthetic val-

ues of selected floral elements of Khatana and Waghai forests

of Dangs, extreme northern part of Western Ghats, India. In-

dian Journal of Traditional Knowledge 4: 275-286.
Nath, D., and S. K. Mukherjee. 2015. Evaluation of plants in

Hidnu Mythology, Festivals and Rituals and their conserva-

tional aspect. International Journal of Pharmaceutical Re-

search and Bio-Science 3: 310-326.
National Education Policy. 2020. New Delhi: Ministry of

Human Resource Development, Government of India.
Pandey, A. 2020. Vegetation in Indian Art. Shabdkosh: Jour-

nal of Visual and Performing Arts 1: 24-30.
Pandya, A., and K. Dholakia. 2013. Historical overview of

Kutch embroideries. Indian Journal of Traditional Knowl-

edge 12: 524-529.
Pappas, M. 2021. What is Sci art? Website: https://www.

emergingcreativesofscience.com/post/what-is-sciart

background image

62

PSB 70 (1) 2024

Powers, A. 2020. Why art is vital to study of science? Web-

site:  https://www.forbes.com/sites/annapowers/2020/07/31/

why-art-is-vital-to-the-study-of-science/?sh=6bba52ca42eb.
Prajapati, P., and D. S. Tiwari. 2021. Indian Traditional Mo-

tifs: Symbolism of Indian culture and heritage with reference

to floura, fauna and ancient architecture. International Jour-

nal of Creative Research Thoughts 9: a29-a33.
Romph, M. D. 2023. Symbolism of Indian Flowers. Website:

https://thursd.com/posts/symbolism-of-indian-flowers.
Sabnani, N., and J. Frater. 2012. Art as Identity: Social mo-

bility through traditional textiles in Kutch. International

Conference Northern World Mandate. Helinski: Cumulus.
Swaminathan, L. 2015. Hindu’s respect for Trees and forests

Website from Tamil and Vedas: a blog exploring Tamil and

vedic literature: https://tamilandvedas.com.
UNESCO. 2023, May 4. Knowledge and practices concern-

ing nature and the universe. Website: https://ich.unesco.org/

en/knowledge-concerning-nature-00056

background image

63

From the PSB Special Issue on Art in the Botanical Sciences

Art-Making and Plant Biology as Synergistic

Learning Tools: Reflections on a

Sci-Art Undergraduate Course

About Climate Change



Avery Maltz

Lucy Grant

Carolyn Sicbaldi

Marge Poma Alarcon

Zoe Cloud

Abigail Dustin

Virginia Griswold

MJ Kabongo

Emma King

Katie Rahaim

Chase Ryan-Embry

Clara Sorensen

Iz Thompson

Sam Tower

Silas Weden

and

Jess Gersony

  Smith College, Northampton, MA

We are a group of 15 undergraduate students

and one assistant professor at Smith College

who participated in an experimental, upper-

level course, “Understanding Climate Change

through Plant Biology and the Arts.” Launched

in Fall 2022, this botanical sci-art initiative used

interdisciplinary ways of knowing to deepen our

understanding of climate change by integrating

plant biology and art. Students read papers

about drought-induced tree mortality, arctic

shrubification, CO

2

 fertilization, and urban plant

ecophysiology. We then engaged with the content

by each creating three artistic “processing projects”

over the semester, writing a corresponding two-

page artist statement related to the scientific

content for each, and discussing the projects in

class in a workshop format. These projects unified

science and artistic expression to create a unique

learning environment that facilitated community

building and emotional connection to the subject

matter.
As we deepened our relationship to plants and

climate change, students created songs, digital

art pieces, comics, poems, sculptures, posters,

chlorophyll prints, and multimedia installations

that we then presented as an art show open to the

local community. Figure 1 shows a sample of the

art pieces made in class, with an accompanying

description. (Please explore the other art pieces at

this link: https://tinyurl.com/3pkvx9dm.)
The goal of this class was to redefine the way

students engage with botanical learning. By

exploring their own personal connections to

the natural world, students were able to more

thoroughly interact with course content and build

relationships with nearby communities. When

asked about their experience with the class, Virginia

Griswold, wrote that “creating art allowed [her]

to unravel complex physiological and ecological

background image

64

PSB 70 (1) 2024

processes and transform them into forms that [she]

most resonated with.” In addition to integrating

art, this course also engaged with environmental

justice issues, as well as centered papers that

focused on traditional ecological knowledge,

written by indigenous scholars. Another student

expressed that “imperialist scientific practices

attempt to divorce humans from the natural world

Figure 1. (A) “Portrait of a Dawn Redwood in the Dusk of the Anthropocene” by Avery Maltz AC ‘25 — The Dawn Redwood was

believed extinct for 150 million years until it was discovered alive in China in the 1940s. Our redwood is shown in a wood photo

transfer with handmade varnish from the resin of a neighboring Cypress, a testament to hope and community care. (B) “Protector”

watercolor painting by Marge Poma Alarcon ‘23 — This piece, painted using transpired water, is inspired by the Prunus tree out-

side the artist’s apartment complex in New York City. It evokes incompleteness and discomfort in the absence of trees in residential

communities, since their cooling effects are crucial to combatting the urban heat island effect. (C) “Circle Back” collage piece by

Lucy Grant ‘23 — Positive feedback loops driven by overconsumption and capitalism are incredibly harmful to ecosystems, and

they can completely shift one biome into another. Although these shifts occur slowly, they inflict massive damage to entire popula-

tions of plants and animals. (D) “Hydraulic Failure” sculpture by Virginia Griswold ‘23 — A sculpture and reflection of the stress

responses of trees, specifically cavitation of vascular tissue and mortality in severe natural droughts. The piece captures the moment

when the last water molecules (beads) leave the trees and ground in extreme drought. (E) “Spirit Power” by Carolyn Sicbaldi AC

‘25 — This piece is an exploration of forest fire ecology and traditional ecological knowledge upheld to generate successful regrowth

of important vegetation. The title is a translation of the Interior Salish word suméŝ, used to describe those who are responsible for

managing fire treatments.

around us to everyone’s detriment, especially the

poor, Indigenous peoples, and people of color. This

work feels like a step towards practicing science

more ethically and holistically.” Through these

approaches, the students reflected that they had

a better understanding of the course content and

felt a deeper connection to the material presented

in class.

background image

65

From the PSB Special Issue on Art in the Botanical Sciences

The Botanist and the Illustrator:

A Long-Standing Partnership

















Douglas C. Daly

Bobbi Angell

2



B.A. Krukoff Curator of Amazonian Botany, Center for

Biodiversity and Evolution, The New York Botanical Garden

2

 Botanical Illustrator, The New York Botanical Garden

Collections, research, descriptions, publications,

photographs, and ultimately illustrations have

fueled a synergistic partnership between botanist

Douglas Daly and botanical artist Bobbi Angell

for over 35 years at the New York Botanical

Garden. Daly, as principal author, has described

ca. 100 new taxa in the Burseraceae family and

15 new taxa in the Anacardiaceae, the latter co-

authored with John D. Mitchell. Daly has provided

the raw material—herbarium specimens, field

photographs, liquid-preserved flowers, rough

sketches and descriptions—and Angell has

depicted all but two of the new taxa with detailed,

accurate, and revealing illustrations in pen and

ink.
The Burseraceae (Torchwood and Frankincense

family) and Anacardiaceae (poison ivy and mango

family) are sister families in the order Sapindales,

which also includes the citrus (Rutaceae) and

mahogany (Meliaceae) families.  The pantropical

Burseraceae comprise around 800 species of trees

and shrubs, including the biblical myrrh and Balm

of Gilead.  Anacardiaceae, also with 800 species,

includes many economic plants including lacquer,

mango, pistachio, and cashew. Both families are

important components of many of the world’s

floras and ecosystems, especially in the tropics.
Despite the fame and value of these two families,

significant parts of their diversity had remained

undescribed or misunderstood until recently. In

the Anacardiaceae this is true even for genera

(e.g., Mitchell et al., 2023), whereas in the

Burseraceae,  Protium and Commiphora contain

at least 50 undescribed species each (D.C.D., pers.

obs.; M. Gostel, pers. comm.), and almost half of

Canarium’s estimated 115 taxa are unnamed Asian

species (pers. obs.).
Daly has collected ca. 15,000 plants under his

number series, along with twice that many during

fieldwork with others. His travels have focused

on the regions rich in Burseraceae, including

Amazonian Brazil, Mexico, Bolivia, Colombia,

Madagascar, Papua New Guinea, Malaysia, and

Vietnam.
Conditions are ideal when a botanist and

an illustrator can collaborate long-term on

a particular group of plants, both gaining

familiarity with key characters, as with Daly

and Angell’s collaboration on the Burseraceae

and Anacardiaceae (e.g., Daly 1992, 2020).  A

centerpiece has been the Burseraceae genus

Canarium in Madagascar.  Canarium  has been

P

ho

to cr

edi

t: P

ao

lo L

ab

ia

k

background image

66

PSB 70 (1) 2024

long known to comprise an important structural

component of eastern Madagascar’s moist forests,

but Daly’s recent work revealed that the genus

comprises significant diversity there as well.  Only

two species of Canarium had been believed to

exist there since the 1940s, but after Daly and two

collaborators (one a Malagasy botanist) studied

the genus intensively in the field and at several

herbaria for several years, the taxonomic revision

of Canarium on that island revealed 33 species, of

which 27 were illustrated by Angell and published

as new to science (Daly et al., 2015) (Figure 1).
With knowledge of the plant group, botanists

contribute carefully chosen specimens along

with a thorough description and diagnosis and

sometimes sketches and field photos. All of this

input flags key characteristics that the illustrator

can highlight through composition and dissection.

Angell need not be a specialist in the taxonomic

groups she illustrates, because she has a strong

background in morphology (Pell and Angell,

2016) and she understands what structures are to

be depicted and how they vary. Pen and ink have

been the standard type of illustration for some

time because they have the great advantage that

they can reveal features that are hidden or simply

Figure 1. (Left) Canarium scholasticum. (Right) Canarium scholasticum holotype specimen.

too small to be conveyed by scans or photographs,

although photomicrography has improved in

recent years.
Something both the illustrator and botanist need

to possess and cultivate is the ability to work in

different dimensions.  The botanist may have seen

the species in the herbarium (2D) and must visually

“flesh out” a search image to recognize it in the

field (3D). At least as remarkably, the illustrator is

obliged to concatenate a 2D specimen, 2D images,

and (if lucky) 3D plant parts rehydrated from 2D

plant parts, and portray a 3D plant in 2D with

correct disposition of the parts (e.g., orientation

of an inflorescence).
An illustration is begun by roughing out a basic

‘habit’ from a representative herbarium specimen,

showing as much as possible of the entire plant,

often a leafy branchlet. Elements including upper

and lower leaf surfaces and unobscured leaf

nodes are arranged to display as many features as

possible. Details of foliage, flower, fruit, and seed

are drawn based on discussions with the author.

Angell works with a dissecting microscope to view

details on herbarium specimens (Figure 2). A

micrometer in the lens is essential, as are accurate

background image

67

PSB 70 (1) 2024

Figure 2. Microscope setup for illustrations.

rulers and dividers. Details are drawn at a scale

appropriate to their complexity and importance,

which might be a fruit enlarged to 2×, anthers

at 10×, and multicellular hairs at 40×. If liquid-

preserved material is not available, flowers can

often be re-hydrated by gentle boiling in water with

a drop of glycerin and then dissected, although

only with sufficient material and permission.

With the sketch reviewed by the botanist and then

altered as needed, the plate is inked in. Angell uses

a crowquill nib and Pelikan Tusch black drawing

ink on Strathmore Bristol Board, with paper size

equal to herbarium specimens and proportional

for reduction to the format of journals.
The value of an illustration increases when it is

multi-purposed: reproduced in floras and other

publications and increasingly linked to herbarium

specimen records along with field photographs,

maps, phylogenies, molecular sequences,

and other digital information as components

of “virtual herbaria.” Millions of images of

herbarium specimens and many thousands of

field photographs are available online in virtual

herbaria or image banks, but these are of variable

quality. Reputable botanical journals require

that new taxa be portrayed; some permit high-

resolution photographs or scans of herbarium

specimens, and it is often possible to obtain very

good results from photomicrographs of flowers.

Illustrations continue to be optimal, however.
Studying the systematics of a group of plants

is not a rapid-fire enterprise, but the synergy

between the two present authors plus John

Mitchell over 35 years is a highly satisfying and

productive effort that has yielded 115 taxa new to

science—and counting—with Angell continuing

to lovingly illustrate new species of the two sisters,

Burseraceae and Anacardiaceae.

References

Daly, D. C.  1992.  New taxa and combinations in Protium

Burm.f.  Studies in neotropical Burseraceae VI.  Brittonia

44: 280-299.
Daly, D. C. 2020. New species of Protium sect. Tetragastris

from the Andes, the Brazilian Cerrado, and Amazonia. Stud-

ies in Neotropical Burseraceae XXVIII.  Brittonia.  https://

doi.org/10.1007/s12228-020-09616-x
Daly, D. C., J. Raharimampionona, and S. Federman. 2015. A

revision of Canarium (Burseraceae) in Madagascar.  Adanso-
nia (sér. 3) 37: 277-345.
Mitchell, J. D., D. C. Daly, L. Calvillo-Canadell, and R. O.

Perdiz. 2023.  Two new genera and a new species of Anacar-

diaceae from northern South America.  Brittonia 75: 1–18.

Pell, S. K., and B. Angell. 2016. A Botanist’s Vocabulary

Timber Press, Portland.

background image

68

From the PSB Special Issue on Art in the Botanical Sciences









Arthur Domingos-Melo



Laboratory of Floral Biology and Pollination Ecology, De-

partment of Biosciences, Federal University of Sergipe - Prof.

Alberto Carvalho Campus, Itabaiana – SE, 49506-036, Brazil
E-mail: arthur.dom@academico.ufs.br

Floral Acoustic Signaling in Bat Pollination

Demonstrated by Percussive Folk Music

from the Northeast of Brazil

Samba de Coco is a folk music from the Northeast

of Brazil that has a significant presence in the

Caatinga region, a dry forest known for its high

proportion of bat-pollinated species — a unique

pollination system where sound serves as a form

of floral signaling. This essay explores how the

unlikely combination of Samba de Coco and

bat pollination led to a successful science-art

connection that used music as an analogy to

demonstrate the role of sound in plants.

FLORAL ACOUSTIC SIGNALING

IN BAT POLLINATION AS A

REMARKABLE EXAMPLE OF THE

ROLE OF SOUND IN PLANTS

Plants can produce many different sounds, from

the generic rustle of thousands of leaves swaying

in the wind in a forest to the unique snap of a

calyptra exploding from sphagnum moss, but their

sound characteristics are rarely discussed. This

scarcity is largely due to the inherent challenge of

comprehending the biological functions of plant

sounds without specialized theoretical knowledge

and a creative approach to disseminating this

information to a broader audience. Despite this

challenge, some studies have shown that sound

is a crucial factor in many biological processes

in plants (Demey et al., 2023). Science-art

approaches are an effective way to make botanical

content more accessible and interesting to society

(as demonstrated throughout this Plant Science

Bulletin sci-art compendium), and music is a

particularly successful artistic expression for

explaining the sounds produced by nature (Shirley

et al., 2020; Andima et al., 2021; Nguy, 2022).
The role of sound in plant-animal interactions

is exemplified by the acoustic signaling in bat-

pollinated flowers. These flowers take advantage

of bats’ echolocation sense to attract them. When

using echolocation, bats emit high-frequency

sounds and interpret the reflected echoes to detect

objects and navigate through the environment.

Chiropterophilous flowers (i.e., pollinated by

bats) have specialized echoic concave parts that

make them acoustically conspicuous. When bats

emit sounds that reach these floral parts, a strong

and multidirectional echo with a recognizable

invariant signature is produced (Simon et al., 2011,

2021). This unique characteristic is combined with

other peculiarities present in chiropterophilous

flowers, such as large flowers, emission of sulphur

background image

69

PSB 70 (1) 2024

volatile compounds (unpleasant garlic or cabbage

smells), and copious nectar production, making

bat pollination an astonishing and unique process

(Domingos-Melo et al., 2023).
Although bat pollination plays a crucial ecological

role, it remains relatively unknown to society

(Boero et al., 2022). This lack of awareness is

exemplified in the Caatinga, the largest seasonally

dry tropical forest in South America, where the

significance of bat pollination as a global hotspot

is unrecognized by the citizens (Domingos-

Melo et al., 2023). This is not surprising given

the region’s lack of biodiversity awareness and

educational neglect (Vieira et al., 2022). However,

the Caatinga boasts a rich and unique artistic

tradition, including various types of folk music

such as Forró, Baião, and Xaxado, as well as Samba

de Coco, which was created by Afro-descendants

and native indigenous people.
Paulo Freire, widely regarded as one of Brazil’s

most influential pedagogues, emphasized the

role of ethics and aesthetics in education through

his concept of Boniteza (which translates to

beauty in English) and stressed the importance

of incorporating local artistic elements into the

teaching and learning process (Freire, 2021). In this

regard, incorporating cultural movements unique

to the Caatinga into the study of its ecological

processes represents an important exercise in the

science-art interface. Upon contemplation of this

matter, I was invited to give a lecture on Science

Dissemination at the 4th Brazilian Pollination

Symposium in Garanhuns, PE on October 18,

2022. As a researcher in bat pollination and an

amateur Brazilian folk music player, I took this

opportunity to organize a workshop where we

used Samba de Coco to explain the functioning of

acoustic signaling in chiropterophilous flowers. By

combining science and art in this way, we hope to

promote greater appreciation and understanding

of our study systems in pollination biology.

THE CREATIVE PROCESS: THE

UNUSUAL MIX BETWEEN BAT

POLLINATION AND FOLK MUSIC

The Samba de Coco originated in several localities

throughout northeastern Brazil, and its name

varies depending on its place of origin. Some

examples include Coco de Beira de Praia, de

Roda, de Ciranda, de Umbigada, and de Raiz,

which reflect the unique dance style, instruments

used, and meter of the verses. Mestre Lula Calixto

(1942–1999), a musician and cultural promoter

from Arcoverde-PE in northeastern Brazil, created

the Coco Trupé style, which is characterized by the

percussion created by tapping wooden rustic clogs

against a platform (Figure 1A). Other instruments

used in the style include the triângulo, pandeiro,

surdo, and ganzá. A significant portion of my

research on bat pollination has been conducted in

the Catimbau National Park, Northeast Brazil (e.g.,

Domingos-Melo et al., 2020, 2022; Domingos-

Melo, 2021), which is located a few kilometers

from Arcoverde. During 2021 and 2022, I had the

opportunity to reside in Arcoverde and immerse

myself in the rich cultural profusion that the

‘Samba de Coco’ represents in this city (Coco

Raízes de Arcoverde, 2018; Coco Trupé, 2020).

Given my background as an amateur Maracatu

player (another folk music genre from Northeast

Brazil), this experience particularly enchanted and

inspired me to embark on an experiment merging

art and science.
In preparation for the presentation, I collaborated

with one of the local groups from Arcoverde called

Samba de Coco Eremin (Figure 1F). During our

meetings, we exchanged ideas and knowledge: I

taught them about bat pollination in the Caatinga,

while they taught me about Samba de Coco. They

also took me to visit the Culture Center of Samba

de Coco Raízes de Arcoverde and the Atelier of

Mestre Assis Calixto (brother of Lula Calixto),

who was honored by the State Government with

the title of Living Cultural Heritage of Pernambuco

in 2019 (Franco, 2019). Additionally, the clogs

background image

70

PSB 70 (1) 2024

used in the presentation were purchased from his

studio and handcrafted by himself.
During our collaborative sessions, we drew an

analogy between the percussive sound of clogs

and the pulses emitted by bats that are reflected

by flowers. Gonzalez-Terrazas et al. (2016)

demonstrated that bats use echolocation to

locate flowers, emitting a series of calls during

their approach (Figure 1B). Once the flowers are

identified and the bats are in close proximity,

they emit a long terminal call group before

visiting a flower (Figure 1C). Similarly, in Trupé

performances, the clogs can be played in various

ways (Coco Raízes de Arcoverde, 2019), including

(1) Parcela rhythm, characterized by slower

and more cadenced tapping (Figure 1D), and

(2) Trupé rhythm, in which the tapping speed

Figure 1. Utilization of the Northeast Brazilian folk music "Samba de Coco" as an analogy for acoustic signalling

in bat-pollinated flowers. (A) Traditional wooden clogs used as percussion instruments. (B) Echolocation is used by

bats during their search for flowers. (C) This process is here symbolized by the "parcela rhythm," which exhibits slower

and more rhythmical tapping (visual representation of sound waves in green). (D) During the floral visitation, a long

terminal call group is produced just before the bat approaches the flower and is represented by the "trupé rhythm."

(E) This rhythm is characterized by tapping that gradually accelerates until it reaches the fastest tempo achievable by

the performer. (F) Meeting with the Samba de Coco Eremin group to develop the idea, and (G–H) presentation and

workshop held at the 4th Brazilian Pollination Symposium in Garanhuns, PE on October 18, 2022.

background image

71

PSB 70 (1) 2024

progressively increases until it reaches the fastest

tempo possible for the performer (Figure 1E). We

used the Parcela rhythm to represent echolocation

during the search for flowers, whereas the Trupé

rhythm represents the long terminal call group

that occurs just before visiting the flower.

THE PRESENTATION:

RESEARCHERS

CHALLENGED TO ROLEPLAY

BAT-POLLINATED FLOWERS

During the Science Dissemination lecture, the

Coco-Eremin group performed various songs

featuring the Parcela and Trupé rhythms as

examples of how bats echolocate when searching

for and visiting flowers (Figure 1G). This was

followed by a workshop in which a group

of volunteer researchers from the audience

participated. Coco-Eremin members taught

them how to play the rhythms with their feet,

and then an impromptu roleplay was performed,

with a Coco-Eremin player simulating a “bat

echolocating during foraging” while the volunteers

acted as “flowers” and replicated the percussion

to simulate the echoes (Figure 1H). The group

followed the Parcela rhythm at first, and in some

moments increased the speed to the Trupé rhythm

(simulating a floral visit), with the researcher

volunteers following suit. It was humorous to

watch the researchers on stage attempting to

match the speed of the skilled Coco player. After

a couple of rounds, the “flower that best reflected

the sound of the bat” was declared the champion.

The audience found this playful exercise amusing

and exciting.

PERSPECTIVES: USE OF MUSIC

TO BUILD ANALOGIES

ABOUT THE ROLE OF

SOUND IN PLANTS

Expanding on our successful endeavor, there’s

compelling potential to explore further aspects

of ecoacoustic signaling in chiropterophilous

plants. The rich complexity of this process offers

numerous avenues for science-art experiences,

complemented by the creative potential of

Samba de Coco. Extending this interdisciplinary

approach to educational settings such as schools

and non-formal learning environments could

broaden its impact and foster curiosity among

diverse audiences.
The recent shift in the terminology from “plant

blindness” to “plant awareness disparity,” while

addressing the ableism inherent in the former,

also emphasizes the extensive consequences of

neglecting plants on our attitudes, knowledge,

and interest in them (Parsley, 2020). As we

move away from a metaphor that exclusively

centers on visual processes, it is appropriate to

acknowledge the importance of other sensory

modalities in educating about plants. In this

context, we demonstrate that music can be a

compelling alternative for creating intricate

analogies that highlight the role of sound in

plants. Such analogies not only serve to illustrate

the importance of sound in the life of plants, but

also stimulate an emotional connection with

nature that can motivate people to study them.

In our case, with a touch of poetic imagination,

one might envision the Caatinga as a nocturnal

dance floor, where thousands of chiropterophilous

flowers sway to the beat of a joyous Samba de

Coco, in a mesmerizing performance rhythmed

by the bats’ echolocation.

background image

72

PSB 70 (1) 2024

References

Andima, R., R. Sumarmin, Y. Ahda, H. Alberida, and A.

Razak. 2021. The Relationship between Multiple Intelligences

and Biology Learning Outcomes of Student. Jurnal Penelitian

Pendidikan IPA 7: 625-631.
Boero, M. L., K. Agostini, and A. Domingos-Melo. 2022. Po-

linização por morcegos e sua importância. In Ghilardi-Lopes,

N. P., and Zattara, E. E (eds), Ciência Cidadã e Polinizadores

da América do Sul, 73-80. Cubo Multimídia São Carlos, SP.
Coco Raízes de Arcoverde. 2018. Samba de Coco Raízes de

Arcoverde Concert [Video]. Ressonâncias Rupestres Youtube

Channel. Website: https://www.youtube.com/watch?v=x_

vwMFhgt4c&t=2584s [accessed 10 February 2024].
Coco Raízes de Arcoverde. 2019. Samba de Coco Trupé Les-

sons [Playlist]. Coco Raízes de Arcoverde Youtube Channel.

Website:  https://www.youtube.com/@cocoraizes3109/fea-

tured [accessed 10 February 2024].
Coco Trupé. 2020. Music Videos [Playlist]. Remix Cul-

ture Youtube Channel. Website: https://www.youtube.com/

watch?v=_bMFsCiD3PM&list=PLy5LmiKZYBIYu9JzXn

oa9-2fsH_mSL2UA [accessed 10 February 2024].
Demey, M. L., R. C. Mishra, and D. van der Straeten. 2023.

Sound perception in plants: from ecological significance to

molecular understanding. Trends in Plant Science 28: 825-

840.
Domingos-Melo, A., P. Milet-Pinheiro, D. M. A. F. Navarro,

A. V. Lopes, and I. C. Machado. 2020. It’s raining fragrant

nectar in the Caatinga: evidence of nectar olfactory signaling

in bat-pollinated flowers. Ecology 101: e02914.

Domingos-Melo, A., V. L. Garcia de Brito, A. N. Sersic,

A. A. Cocucci, K. Lunau, and I. C. Machado. 2021. Shin-

ing bright in the dusk: How do bat-pollinated flowers reflect

light? Ecology 102: e03416.
Domingos-Melo, A., A. A. Cocucci, M. Tschapka, and I.

C. Machado. 2022. A negative association between nectar

standing crop and pollen transfer suggests nectar functions

as a manipulator of pollinating bats. Annals of Botany 131:

361-372.
Domingos-Melo, A., S. Albuquerque-Lima, U. M. Diniz, A.

V. Lopes, and I. C. Machado. 2023. Bat pollination in the

Caatinga: a comprehensive review of studies and peculiari-

ties in the largest and most diverse Seasonally Dry Tropical

Forest in the Neotropics. Flora 305: 152332.
Franco, D. 2019. New living heritage of Pernambuco, mas-

ter Assis Calixto dedicates honor to his brother [Newspaper

report]. TV Asa Branca – Globo. Website: https://g1.globo.

com/pe/caruaru-regiao/noticia/2019/07/19/novo-patrimonio-

vivo-de-pernambuco-mestre-assis-calixto-dedica-honraria-

ao-irmao.ghtml [accessed 10 February 2024].
Freire, A. M. A. 2021. A palavra boniteza na leitura de mun-

do de Paulo Freire. Editora Paz e Terra. São Paulo, SP.
Gonzalez-Terrazas, T. P., C. Martel, P. Milet-Pinheiro, M.

Ayasse, E. K. Kalko, and M. Tschapka. 2016. Finding flow-

ers in the dark: nectar-feeding bats integrate olfaction and

echolocation while foraging for nectar. Royal Society Open

Science 3: 160199.
Nguy, A. 2022. A Music Composition Through the Use of

Animal Sounds. Undergraduate Honors Capstone Projects.

941. Website: https://digitalcommons.usu.edu/honors/941
Parsley, K. M. 2020. Plant awareness disparity: A case for

renaming plant blindness. Plants, People, Planet 2: 598-601
Shirley, E. A., A. J. Carney, and M. A. Pereira. 2020. Teach-

ing soundscapes in the Brazilian Pantanal: Benefits of inte-

grating music and science education. In 34th World Confer-

ence on Music Education, p. 499.
Simon, R., K. Bakunowski, A. E. Reyes-Vasques, M. Tschap-

ka, M. Knörnschild, J. Steckel, and D. Stowell. 2021. Acous-

tic traits of bat-pollinated flowers compared to flowers of oth-

er pollination syndromes and their echo-based classification

using convolutional neural networks. PLoS Computational

Biology 17: e1009706.
Simon, R., M. W. Holderied, C. U. Koch, and O. von Hel-

versen. 2011. Floral acoustics: conspicuous echoes of a dish-

shaped leaf attract bat pollinators. Science 333: 631-633.
Vieira, R. M. D. S. P., M. F. Sestini, J. Tomasella, V. Marche-

zini, G. R. Pereira, A. A. Barbosa, F. C. Santos, et al. 2020.

Characterizing spatio-temporal patterns of social vulnerabil-

ity to droughts, degradation and desertification in the Brazil-

ian northeast. Environmental and Sustainability Indicators 5:

100016.

Acknowledgments

The author thanks to Valderlan A. F. Baltazar,

coordinator of the Raizes do Sertão and Coco

Eremin Cultural Group, as well as its members,

for their collaboration on this project. To Master

Assis Calixto for crafting the clogs used in the

presentation. To Dr. Natan Messias Almeida and

Dr. Cibele Cardoso de Castro for their invitation

and support of the presentation at the 4th

Brazilian Pollination Symposium in Garanhuns,

PE, on October 18, 2022. To Dr. Antônio Felix for

the logistic support. This research was funded by

FACEPE (Foundation for the Support of Science

and Technology of Pernambuco) through research

grants (DCR-0031-2.03/21; APQ-0226-2.03/21).

background image

73

From the PSB Special Issue on Art in the Botanical Sciences

Cross-Pollination: Building a Co-Taught

Course to Examine Art and Sex Through

the Lens of Botany



Christopher T. Martine

1

Anna Kell

2,

and



Diamanda A. Zizis

1



1

Department of Biology, Bucknell University, Lewis-

burg, PA 17837

2

Department of Art and Art History, Bucknell Univer-

sity, Lewisburg, PA 17837

Nearly a decade ago, Bucknell University—a

small, private, liberal arts institution in central

Pennsylvania—instituted a new sophomore-

level requirement titled Integrated Perspectives

(IP). Taught by instructors from two different

disciplines, courses under the IP umbrella are

meant to introduce students to an area of study

through the combined efforts of professors whose

disparate academic backgrounds meet in a sort of

pedagogical “sweet spot.” When successful, this

approach challenges both the students and the

professors in often unexpected ways, with varying

degrees of both discomfort and engagement that

can engender impactful learning outcomes.
Driven by overlapping interests in plants, art,

and diversity in sex expression, Anna Kell

(Department of Art and Art History) and Chris

Martine (Department of Biology) developed a

course that integrates the perspectives of a visual

artist and a botanist. Art & Sex Through the Lens

of Botany seeks to impart the importance of

making connections across disciplines  and  the

value of visual literacy across academic lines. The

course introduces foundational concepts in each

field  and  encourages students to integrate and

explore these different systems of knowledge and

their intersections.
In addition to developing fluencies related to

both general botany and studio art, the goal of

the course is that students demonstrate a variety

of new strengths including (1) the ability to

recognize, construct, and evaluate connections

among different intellectual methods, ways of

learning, and bodies of knowledge; (2) the ability

to identify the various parts of a flower and discuss

their significance and role in sexual reproduction

in plants; (3) increased awareness of visual forms

of communication, including artistic expression,

data visualization, and observation; and (4) a

broader understanding of the role of sexuality

in the science of biology and in the formation

of cultural beliefs and biases. Through these

approaches, students engage in cultural dialogue

regarding our perceptions of normativity in sexual

expression—often using the flower (including

its depiction in art) and the wide variation in

angiosperm sex expression as a starting point.

By examining the impressive diversity of sexual

systems and forms present in flowering plants

(through dissections, microscopy, comparative

approaches, and artistic representation), students

are consistently challenged to question what is

“normative” when considering the myriad means

by which organisms (including our own species)

“do” sexuality.

background image

74

PSB 70 (1) 2024

As they build their botanical acumen, students

are then challenged to create artworks applying

their evolving knowledge and understanding to

their own perceptions and experiences related

to sexuality, gender expression, and other

sociocultural issues or cultural phenomena they

identify as important to them. The hope is that

this interdisciplinary approach to botany  and

art not only gives students a new (or initial)

appreciation and understanding for each academic

discipline, but also gives an awareness of the ways

these students might contribute meaningfully

to cultural dialogue (including on topics related

to human sexuality) through the integration

of science and art.
The pedagogical mission of the course is largely

achieved through hands-on lab experiences

and creative projects, each requiring extended

course periods and ample teaching/work space

for the typical enrollment of 24–30 students. The

current iteration of the class meets twice a week

for 80 minutes and occupies two adjacent lab

classrooms with large open bench spaces; there

is also dedicated space in our nearby collections

spaces for storage of in-process and completed

assignments. Students in the course complete

a number of “sci-art” projects, including the

following examples:

1.  Wearable plant-pollinator interaction

art pieces in which the pollination pro-

cess is performed and recorded in short

video clips. Done in groups, this activity

promotes an understanding of coevolu-

tion, coadaptation, and biological inter-

actions. For example, a group of students

majoring in Math, Neuroscience, Studio

Art, and Management constructed cos-

tume pieces that were worn as part of a

greenhouse-based “ballet” performance

in which the Math student (also minor-

ing in Dance) played a Trochetia black-

burniana flower visited by the Neurosci-

ence student acting as a day gecko.

2.  Repeated pattern wallpaper designs

inspired by plant reproductive strategies

including, in one case, a treatment reflect-

ing on the deception associated with bee

orchid (Ophrys) pollination and, in an-

other, the sex-changing and thermogenic

habits of skunk cabbage (Symplocarpus

foetidus)

3.  Projects using herbarium paper as a

canvas, including:

 Ǎ Artistic documentation of floral

dissections using various species

and reproductive morphologies,

with attention to representations

of “maleness,” “femaleness,” and

cosexuality.

 Ǎ “Cultural specimen” sets express-

ing a

particular feeling, place,

personal experience, or wider

cultural phenomenon. As an ex-

ample, one Biology student cut a

Pride flag into scraps and then re-

assembled them into specimens

of national flowers for countries

in which being gay is considered

a crime. These were then mount-

ed as herbarium specimens with

labels identifying the countries

and the sentencing associated

with the “crime” of homosexual-

ity.

 Ǎ Bio-cultural commentaries built

around scraps of textiles featur-

ing floral motifs. For example,

student Sophie McQuade (Figure

1) chose a swatch of fabric featur-

ing a bleeding heart (Dicentra) in

flower as an inspiration for a re-

flection on queer identitie

s.

background image

75

PSB 70 (1) 2024

At the conclusion of each semester of the course,

Bucknell’s Rooke Science Center becomes a gallery

space where students in Art & Sex Through the

Lens of Botany display their work as part of a

short-term exhibition—with the entire campus

community invited to the opening. Some of

Figure 1. “Bleeding Hearts” by Sophie McQuade, 2021, gouache on herbarium paper. A bio-cultural commentary

created around a single round piece of cloth (upper right) with a floral motif representing a bleeding heart (Dicentra).

Artwork completed as part of the Art & Sex Through the Lens of Botany course at Bucknell University (Lewisburg,

PA, USA) and included with permission from the artist (Instagram @sophiemcquaideart).

the pieces have now hung in hallways, labs, and

classrooms for years, alongside research posters

and bulletin boards displaying journal articles and

campus flyers—a daily reminder that creativity

and art have a place in the teaching of science.

background image

Botany 2024!

Featured Speakers

Colin Khoury

Plenary

Address

Kaya DeerInWater

Regional Botanist

Jenny Xiang

Incoming

BSA President

Mark Merlin

Distinguished

Ethnobotanist

Cynthia Jones

Kaplan Lecture

Joyce Gloria Onyenedum

BSA Emerging Leader

David Tank

Incoming ASPT

President

Kathleen Kay

Annals of

Botany

Morgan Ruelle

SEB Mid-Career

Award

Belong in Botany Panel Discussion

Perspectives on Success in the Biological Sciences

Moderated by Karolina Heyduk

Josh Felton

Katherine

Toll

Charles

Bush

Joyce

Navarro

Ana Flores

background image

PSB 70 (1) 2024

77

Botany 2024!

Workshops and Field Trips

Have Some Fun and Learn Something new!

West Michigan’s Natural Communities Sampler

    Sphagnum Bog, Oak Barren and more

Flower Creek Dunes Nature Preserve

Kellogg Biological Station

Ferns and Lycopods of Yankee Springs

Nature Journaling Science and Art

Hudsonville Nature Center

Frederick Meijer Garden and Sculpture Park

White Water Rafting

Introduction to Phylogenetic Comparative Methods in R

Data Analysis and Visualization In R

SNPs, genes, genomes: using assembled genomes for answering

evolutionary questions

Biodiversity data wrangling: Linking large phylogenies with species

traits and ecologies

Common methods in leaf gas-exchange research: an introduction

to measurements, theory, and data analysis

How to Tackle Teaching Plant Life Cycles

Winter twig and fruit identification

Conservation through Ethnobotanical Relationships

SISRIS: Supporting Inclusive and Sustainable (collections-based)

Research Infrastructure for Systematics

Genome Skimming: A Bioinformatics Approach to Assembly-Free

Analysis of Genomic Information

Traditional Cyanotype Printing with Jessie Swimeley

Ethnobotany, natural products, and microbiomes through a One

Health collaboration

3D Printing for Science: From Design to Optimize

Seeing Seeds: An Artistic Investigation

Planting Inquiry in Biology Classrooms

A Full Slate of Workshops

Full Day

Half Day or Two Hour!

Sign up on the

Conference Website

background image

PSB 70 (1) 2024

78

78

SOCIETY  NEWS

SEARCH FOR NEW

EDITORS-IN-CHIEF FOR

AJB AND PSB

The BSA has been very fortunate to have Dr.

Pamela Diggle as the Editor-in-Chief of the

American Journal of Botany (AJB)  and Dr.

Mackenzie Taylor as the Editor-in-Chief for

the Plant Science Bulletin (PSB) for almost 10

years! Both Pam and Mackenzie will complete

their second 5-year terms in December 2024.

A search committee to recruit new Editors for

these important BSA publications was formed

in February 2024 and includes Emily Sessa

(Chair), Eugenio Larios, Nora Mitchell, Andy

Schnabel, Mackenzie Taylor, Amy McPherson,

and Richard Hund.

The committee launched the search process

during the week of February 26, with

an application deadline of April 5, 2024.

BSA Publications Updates

Interviews will take place in late April into

May, and a recommendation to the Board will

be made by early June. Ideally, offers will be

extended to candidates for both publications

before the Botany meeting in mid-June, but

otherwise by the end of July. The terms for the

new EiCs will begin in January 2025.

AJB AND APPS OPEN

CALL FOR ASSOCIATE

EDITORS

In late August 2023, the BSA publications team

launched an open call for Associate Editors for

AJB and Applications in Plant Sciences (APPS),

with the goals of adding depth of expertise

and improving diversity on our editorial

boards. We strongly encouraged applicants

from underrepresented groups and regions to

apply; by the end of September, we received

83 applications from over 20 countries. AJB

invited 13 and APPS invited 9 applicants

to join our editorial boards as Associate

Editors; other applicants were encouraged to

become or remain engaged with the journals

as authors and reviewers (and Early Career

Advisory Board or Publications Committee

members). Most terms began in November

2023, and the new AEs will be assessed after 1

year to determine whether the arrangement is

working well for both parties.

By

Amy McPherson

BSA Director of

Publications

E-mail:

amcpherson@

botany.org



background image

PSB 70 (1) 2024

79

New AJB Associate Editors, as a result of the

Open Call: Liming Cai (University of Texas-

Austin), Myong Gi Chung  (Gyeongsang

National University, South Korea), Andrés

J. Cortés (Colombian Agricultural Research

Corporation, Colombia), Lucía DeSoto

(Complutense University of Madrid, Spain),

Carole Gee (University of Bonn, Germany),

Brenda Grewell (

USDA ARS and University

of California Davis), Eugenio Larios

(Universidad Estatal de Sonora, Mexico),

Elena Lopez Peredo  (Rochester Institute of

Technology), Giacomo Puglielli (University of

Seville, Spain), Susan Rutherford (Wenzhou-

Kean University, China), Yuval Sapir (Tel Aviv

University, Israel), Elizabeth Stacy (University

of Nevada Las Vegas), and Juan Carlos

Villarreal A. (Université Laval, Québec,

Canada). For a list of the entire editorial

board, see https://bsapubs.onlinelibrary.

wiley.com/hub/journal/15372197/homepage/

editorialboard.

New  APPS Associate Editors, as a result of

the Open Call: Rob Baker (National Park

Service), Mario Blanco-Sánchez (Netherlands

Institute of Ecology, The Netherlands),

Gordon Burleigh (University of Florida),

Vadivelmurugan Irulappan (University of

Missouri, Columbia), Gianalberto Losapio

(University of Lausanne, Switzerland),

Giuseppe Diego Puglia (National Research

Council of Italy), Dustin Ray (University of

Minnesota-Duluth), Aarón I. Vélez-Ramírez

(Universidad Nacional Autónoma de México),

and Yunjian Xu (Yunnan University, China).

For a list of the entire editorial board, see

https://bsapubs.onlinelibrary.wiley.com/hub/

journal/21680450/homepage/editorialboard.

APPS RECRUITING

EDITOR

Applications in Plant Sciences held an open

call for a new Recruiting Editor in October-

November 2023 and received 11 applications

from a geographically diverse pool (4

applicants from Europe, 2 from the US, 2

from Pakistan, 1 from India, 1 from Malaysia,

and 1 from Mexico). After interviews and

careful consideration, Tilottama (Tilo) Roy,

of Missouri Western State University, was

offered the position and began working with

the journal in early February 2024.

ARTIFICIAL

INTELLIGENCE AND

PUBLICATIONS:

GUIDELINES

At the Botany meeting in Boise, the editors of

AJBAPPS, and PSB, along with the Director-

at-Large for Publications, met and discussed

the challenges and opportunities that artificial

intelligence (AI) will potentially offer to

science. An ad hoc committee, chaired by

Theresa Culley (University of Cincinnati),

was formed in September 2023 to discuss how

generative AI is changing publishing and what

guidelines we should be providing for authors,

reviewers, and editors. The committee is

meant to have a one-year lifespan, roughly

September 2023 to June 2024. In addition

to drafting guidelines, the committee will

produce an article for the  Plant Science

Bulletin  that relates their findings about the

AI landscape and what it means for BSA

publications. Stay tuned!

background image

PSB 70 (1) 2024

80

In February 2024, Duke University announced

the closure of its 100-year-old herbarium,

the second-largest private herbarium in the

United States. The decision led to protests

from university scientists and researchers

from around the globe. Home to 825,000

specimens, including vascular plants such as

flowers and trees, to a large collection of algae,

lichens, fungi, and mosses, the herbarium

was deemed too expensive to maintain.



BSA President Brenda Molano-Flores, on

behalf of the Society, joined other scientific

leaders by contacting the leadership at Duke to

express the following thoughts, and to prompt

reconsideration of their decision.

I am writing on behalf of the Botanical

Society of America, a professional scientific

society representing 3,000 botanical scientists

worldwide, to emphasize our deep concern

regarding the planned closure of the Duke

University Herbarium and relocation of its

collection. We urge you to reconsider this

decision which will have dire consequences

for the second largest private herbarium in

the United States, its invaluable collections

of vascular plants, bryophytes, lichens, fungi

and algae, and for current and future scientific

researchers.

The Duke University Herbarium serves as

a crucial repository of botanical diversity,

providing researchers with essential resources

BSA Leadership

Responds to News of

Duke University’s Herbarium Closure

for studying plant taxonomy, distribution,

ecology, and evolution. These collections

represent a tangible record of our planet’s

botanical heritage and are indispensable for

advancing our understanding of the natural

world. The closure of the Duke University

Herbarium and relocation of its specimens

would not only represent a loss of scientific

resources but also hinder efforts to address

the most pressing scientific issues of our

time: climate change and global biodiversity

loss. Without access to these invaluable

collections, especially for plant scientists

in the Southeastern United States which is

the most biodiverse region of the country,

researchers would be deprived of essential

tools for understanding and combating the

environmental challenges we face.

With this divestment and dispersal of a

world-renowned scientific collection, Duke

is ceding its position as a top research center

and strongly indicating it no longer values the

support and training of the next generation of

scientists. Generations of outstanding plant

biologists have been trained through the

Duke Herbarium. Duke undergraduate and

graduate students in Agriculture, Biology,

Environmental Science and Policy, and Earth

and Climate Science will lose access to a world-

class archive of plant biodiversity that has

supported student research and training for

over a century. We encourage you to continue

the Duke legacy in biodiversity science by

supporting this critical resource.

background image

PSB 70 (1) 2024

81

We understand the financial constraints

that institutions often face. The long-term

funding of a Herbarium and its curators is

not insignificant. However, we believe that

the long-term benefits of maintaining the

Duke University Herbarium far outweigh

the cost. We urge you to explore alternative

solutions and potentially a combination of

solutions, such as increased funding (Duke’s

endowment consistently ranks as one of the

largest at US universities), partnerships, or

community and crowd-funded support,

to ensure the continued operation of this

important herbarium. Rather than scattering

these collections, we must invest in them and

maximize access to the wealth of knowledge

they hold about the past, present and future

of our planet.

Demonstrate that you value biodiversity,

research and the training of our next

generation of top-notch plant scientists and

preserve the world-class scientific collections

you have while keeping them in their home at

Duke. The Botanical Society of America stands

ready to support your efforts to maintain the

collection at Duke and looks forward to a

positive resolution to this matter. Thank you

for your attention to this urgent issue.

Sincerely,

Brenda Molano-Flores

President on behalf of the BSA Board of

Directors Botanical Society of America

background image

PSB 70 (1) 2024

82

82

By

Amelia Neely

BSA Membership &

Communications

Manager



E-mail: ANeely@

botany.org

 MEMBERSHIP NEWS

Brenda Molano-Flores, the  current BSA

President, would like to invite you to share

your

#PlantJoy

 to help create a community-

wide celebration of how plants and botany

bring us joy. As you may remember,

Finding the joy—tall tales of a plant

lover” was her Incoming Presidential

lecture at last year’s Botany conference

(a recording is available at https://www.

youtube.com/watch?v=sBt3Xn7AevM!).



#PlantJoy Campaign

How can you share the ways plants bring

you joy?

• Share stories and videos on social me-

dia with the hashtag:

#PlantJoy

• Email PlantJoy@botany.org with items

you would like to share on the #Plant-

Joy landing page:  https://botany.org/

plantjoy.html

• You can also add to the word cloud on

the #PlantJoy landing page at https://

www.menti.com/alkfotz2c5gk!

To get started, take a look at Brenda’s #PlantJoy

introduction video (https://youtu.be/S3

H5dH0fKlA?si=2a9YaGHneuQBRRDG)

and hopefully you will be inspired to share

how you find joy in your botanical research,

interaction with plants, nature, and more!

Thank you, in advance, for sharing how you

find joy in your relationship with plants. If

you have any questions, email  plantjoy@

botany.org.

BOTANY360 UPDATES

Botany360 (home/

resources/botany360.html) is a series of

programming that connects our botanical

community during the 360 days outside of

Botany conferences. The Botany360 event

calendar is a tool to highlight those events.

The goal of this program is to connect the

background image

PSB 70 (1) 2024

83

plant science community throughout the year

with professional development, discussion

sessions, and networking and social

opportunities. To see the calendar, visit www.

botany.org/calendar. If you want to coordinate

a Botany360 event, email aneely@botany.org.



Upcoming Botany360 Virtual Events

 Fulbright US Scholar Program: In-

sights from an Alumni Ambassador

https://botany.org/calendar/display/

date/20240429/viewtype/event/eid/44

April 29, 2024, 2–3 pm EST

 Longwood Gardens   Fellows Program

Informational Webinar [sponsored

event]https://botany.org/calendar/

display/date/20240508/viewtype/

event/eid/45 May 8, 2024, 1–2 pm EST

Recent Botany360 Event Recordings

 Applying to Graduate School Q&A

Panel (September 26, 2023)

https://www.youtube.com/

watch?v=ETdaLo7Hwd8

 Reviewing Papers for Scientific Jour-

nals (December 13, 2023)

https://www.youtube.com/

watch?v=8mwBWvY0gR8

 Getting Involved in Service

to BSA and Beyond (January

8, 2024) https://youtu.be/kh-

btx0L9c4?si=dSARRUiG2Jj8S01l

Other Recordings of Interest Related to the

Upcoming Botany Conference

 Ace It! - Write a Better Title (March

2, 2022)  https://www.youtube.com/

watch?v=e2_CkFtBcI4

 Ace It! - Write a Better Abstract

(March 23, 2022)

https://www.youtube.com/

watch?v=dbPGAr9_GyE

 Making the most out of Botany

2023 - A Student Conference

Guide (May 26, 2023)

https://www.youtube.com/

watch?v=1CiRBSs45kw

background image

PSB 70 (1) 2024

84

BSA SPOTLIGHT SERIES

The BSA Spotlight Series highlights  early-

career and professional scientists in the BSA

community  and shares both scientific goals

and achievements, as well as personal interests

of the botanical scientists, so you can get to

know your BSA community better.

The latest member spotlights:

Find the following profiles at https://botany.org/home/careers-jobs/careers-in-botany/bsa-

spotlight-series.html.

• Shweta Basnett, Postdoctoral Fellow, University of Maryland, College Park
• Blaire M. Kleiman, Graduate Student, Florida International University
• Francis J. Nge, Systematic Botanist, Royal Botanic Gardens and Domain Trust, Sydney,

Australia

• Trinity Tobin, Undergraduate Student, SUNY Cortland
• Jaqueline Alves Vieira, Graduate Student, São Paulo State University

(IBILCE/Unesp - Brazil)



Would you like to nominate yourself or another BSA member to be in the Spotlight

Series? Fill out this form:

https://forms.gle/vivajCaCaqQrDL648

.

background image

PSB 70 (1) 2024

85

BSA PROFESSIONAL

HIGHLIGHT SERIES

In 2023, we included a BSA Professional

Member Highlights section each month in

the Membership Matters newsletter. Starting in

2024, both Professional and Early-Career BSA

members will be highlighted in the Spotlight

Series. If you want to be part of this year’s

spotlight series, emai

aneely@botany.org

Dr. Jennifer Ackerfield

Head Curator of

Natural History

Collections and

Associate Director of

Biodiversity Research

Website: https://

jenniferackerfield.

weebly.com/

Jennifer coordinates the growth and

improvement of the natural history collections,

supports biodiversity research efforts, and

manages herbarium staff and volunteers

working with the collections. Throughout

her career, Jennifer has traveled extensively

throughout Colorado documenting its rich

floristic diversity. This extensive knowledge

led her to write the Flora of Colorado, with

the goal of helping anyone identify the plants

of Colorado with ease. Jennifer also leads a

research program focused on documentation

of biodiversity through targeted floristic

inventories, systematics and taxonomy of

western North American groups such as

native thistles (Cirsium), and unraveling the

origins of plant diversity in the Southern

Rocky Mountains through biogeographic

studies. Jennifer regularly collaborates with

organizations and agencies across the state,

leads field trips and workshops, and initiates

community participatory science campaigns.

She also loves teaching and sharing her

passion for botany to students of all ages.

Dr. Hong Ma

Professor of Biology

at the

Pennsylvania State

University

Dr. Hong Ma is a

professor of biology

and   holder of the

Huck Chair for Plant

Reproductive Development and Evolution,

at the Pennsylvania State University. He has

worked with students, post-doctoral scientists,

and collaborators to understand the molecular

mechanisms regulating plant reproduction

and to reconstruct angiosperm phylogenies

using nuclear genes, with an aim to learn

about factors that shape plant evolution and

diversity. Among the angiosperm groups

he and his colleagues have studied are large

families, including Asteraceae, Orchidaceae,

Fabaceae, Poaceae, Brassicaceae, Rosaceae,

Solanaceae, and Cucurbitaceae. He is actively

involved in the education and training of

students at different levels, particularly

undergraduate and graduate students, to help

them prepare for their careers in a variety of

fields. He is especially happy to meet with

young conference attendees and share some

thoughts and experiences related to career

development.

background image

PSB 70 (1) 2024

86

Dr. Ingrid Jordon-

Thaden

Director of Botany

Garden & Greenhouses

in the Department

of Botany at the

University of Wisconsin

Madison

(formally Twitter):

@IThaden



Websites:

https://jordonthadenbotany.weebly.

com/

 and

https://jordonthaden.botany.wisc.edu/

Ingrid is directing a team that cares for a

living collection of plants for teaching in

the Department of Botany at the University

of Wisconsin Madison. As Director of the

Botany Garden and Greenhouse she helps

provide the live plants for many courses,

gives tours, and ensures it continues to be a

prominent botanical education facility on

campus and in southern Wisconsin. She is

currently teaching botany for non-majors at

the University of Wisconsin Madison and is

a Research Associate of the Florida Museum

of Natural History. Her research aims to

explore questions regarding speciation

processes and adaptations in plant species at

the nexus between population genomics and

phylogenetics. In particular, she is fascinated

with the myriad of modifications during

gametophytogenesis in plants and how

that affects the survival and adaptation of a

species. Ingrid is also currently serving as the

Secretary of ASPT.

BSA LEGACY SOCIETY

Thank you to all of our Legacy Society

members for supporting BSA by including

the Society in your planned giving. We

look forward to hosting you at this year’s

Legacy Society Reception at Botany 2024

in Grand Rapids, Michigan. If you are

interested in joining the Legacy Society, you

are welcome to come to the event and sign

up in person or by filling out this form at

any time:

https://crm.botany.org/civicrm/profile/

create?gid=46&reset=1

.

We would like to welcome the following new

2023-24 Legacy Society members:

Erika Jeannine Edwards

Steven and Joan Handel

Lena Struwe

Qiuyun (Jenny) Xiang

1 Anonymous Member

The intent of the  Botanical Society of

America’s Legacy Society  is to ensure a

vibrant society for tomorrow's botanists,

and to assist all members in providing wisely

planned giving options. All that is asked is

that you remember the BSA as a component

background image

PSB 70 (1) 2024

87

in your legacy gifts. It’s that simple—no

minimum amount, just a simple promise to

remember the Society. We hope this allows all

BSA members to play a meaningful part in the

Society's future. To learn more about the BSA

Legacy Society, and how to join, please visit:

https://botany.org/home/membership/the-bsa-

legacy-society.html

2023 GIFT MEMBERSHIP

DRIVE DRAWING WINNER

Thank you to everyone who purchased

gift memberships during the 2023 Gift

Membership Drive (October through

December 2023), and congratulations to the

Botany 2024 registration drawing winner,

Stephen Mills, a student at Purdue University.!

You can purchase one- or three-year gift

memberships at any time for both students

and developing nations’ colleagues. Want

to donate a gift membership to students or

developing nations’ colleagues instead? Simply

put an X in the name and email recipient

fields. Visit

crm.botany.org

 to get started.

NEW BSA SPONSORSHIP

OPPORTUNITIES

Do you know a business or organization that

would benefit from being in front of over 3000

botanical scientists from over 70 countries,

and over 60,000 followers on social media? The

BSA Business Office has many opportunities

for sponsorship, including:

• Sponsored Membership Matters news-

letter articles and footer ads

• BSA website banner ads
• Hosting Botany360 events
• Botany360 event logo advertisement

during event, a slide before/after

event, or time to discuss product at

beginning or end of event

• Sponsored social media ads
• Advertisement space in the Plant

Science Bulletin

Because we value our community, the above

opportunities are limited with the hope of

being informative without being intrusive.

Sponsorships will allow BSA to fulfill our

strategic plan goal of being financially

responsible during this time of economic

shifts.

To find out more about sponsorship

opportunities, email

bsa-manager@botany.org

.

background image

PSB 70 (1) 2024

88

FROM THE

PSB

 ARCHIVES

60 years ago

The Plant Science Bulletin was nearly shelved 10 years after its first issue. This note from the

editor goes on to explain the results of the study to reevaluate the economics of PSB. There is

only one issue of PSB from 1964 in the BSA archives, possibly due to this ongoing study.

“Sometime last year, while I was 9,000 miles away from home in the Philippines, I received

a most unnerving bit of communication from a colleague back home: Plant Science Bulletin

was on the verge of being scotched, or at best it would be emasculated. Pressure was being

put on the powers that be in the Society to introduce drastic economies which might

decrease its stature, reduce it to the category of a hand-out, or even eliminate it entirely!

[. . . ] your editor saw bloody red and immediately dashed off a scathing letter saying in

effect: Don’t touch P. S. B.; I knew it when it was a fledgling; it should not be cheaply printed;

its founders were friends and mentors of mine; I knew why it was begun; it has served a

great and noble purpose; it is not a chit-chat sheet; etc. Letters came back saying cool off

old boy; the situation is in hand; we will wait until you return; no one is going to junk

P. S. B. summarily and without a chance for a hearing. In short, President Alexopoulous

wisely appointed a committee to examine P. S. B. and “to study the whole matter . . . and to

make ... recommendations . . . to the Council at its Boulder meeting in 1964,” and to give

special attention to how “the cost of production ... [might] be reduced” and to “a general

re-evaluation of the Bulletin.”

-

Stern, William L. 1964. A note from the EditorPSB 10(1): 4-5

50 years ago

“The first biographical sketch that appeared [in PSB] was the one of Charles Edwin Bessey

published in volume four, issue five, which was also the first issue edited by Harriet B.

Creighton who succeeded Professor Fuller. The first obituaries, those of Harley Harris

Bartlett and Ezra Jacob Kraus, were published in volume six. Since then biographical

notes have appeared in every volume, except volumes ten and fifteen. The peak volume

was number seven, with eleven biographical notes. In order that information in these

biographical notes may be more readily accessible to the Botanical Society of America
members, scholars, and historians, the accompanying index has been prepared.”

-Stuckey, Ronald L., and W. Louis Phillips. 1974. Biographical Sketches and Obituaries in

Publications of the Botanical Society of America — An IndexPSB 20(1): 5-6

40 years ago

“The 2nd International Wetlands Conference will be held in Trebon, Czechoslovakia June

13-23, 1984. The meeting is sponsored by the INTECO Wetlands Working Group, SCOPE,

UNESCO/MAB, and the Institute of Botany, Czechoslovak Academy of Sciences

-Meetings and Courses 1984. PSB 30(1): 5

background image

PSB 70 (1) 2024

89

89

  SCIENCE EDUCATION



By Dr. Catrina Adams,

Education Director

Jennifer Hartley,

Education Programs

Supervisor

The BSA Education Committee is seeking

to update the state-by-state resource lists

available on the botany.org website. We’re

looking for information about up-to-date

floras and field guides, academic programs

(where in your state can people pursue a

botany-related degree?),  organizations, and

quality, durable web resources focused on

the botany of the state or region. To start, we

are focusing on U.S. states and territories, but

we may expand this project to cover other

regions where BSA members live and work

if this project is successful and members find

the information useful.

The Committee’s starting goal is to have

the most comprehensive undergraduate

student-appropriate state flora/field guides

listed for each state. This resource will be

Seeking Flora/Field Guide

Recommendations to Update

BSA’s State-by-State

Botanical Resource Pages

useful for faculty who want to refer students

to their local flora, or for botanists moving

from one region to another. We appreciate any

help you can provide in creating this useful

resource that doesn’t appear to be easily found

elsewhere.

It should take less than 5 minutes to submit

your resource(s), which will be vetted by the

Education Committee and then added to the

botany.org website. To submit a resource,

please use this link: https://forms.gle/

VjpHPYM9pVKJ4dmh9.

“USA-based BSA members:

Which  flora  or  field  guide

would you recommend un-

dergraduates  use  to  iden-

tify plants in your state or

region?”

background image

PSB 70 (1) 2024

90

ROOT & SHOOT RCN

DEVELOPING A NEW

CULTURALLY RESPONSIVE

MENTORING

CERTIFICATION PROGRAM

TO PILOT IN FALL 2024

A new working group has been established by

the ROOT & SHOOT RCN to create a culturally

responsive mentor certification program for

plant scientists. The working group holds a

large group meeting once a month, and weekly

smaller meetings with various subgroups. All

working group members receive stipends.

The plan is to create/compile a pilot cohort-

based mentor certification program to be

ready to be evaluated in Fall 2024. There

will likely be opportunities to participate in

piloting the new program announced in late

summer on the ROOT & SHOOT website

(https://rootandshoot.org) and advertised

in future BSA newsletters and via social

media. More information on the charge and

structure of this working group is available

on the ROOT&SHOOT website:  https://

rootandshoot.org/working-group-on-

culturally-responsive-mentoring/

The working group includes a diverse group

of 23 members in total with a wide range of

experiences related to culturally responsive

mentoring. The working group members were

recruited from the seven ROOT & SHOOT

participating societies. Thanks to the 13 BSA-

affiliated members representing our society in

the working group!

Jordan Argrett

Summer Blanco

Cael Dant

Caitlyn Elliot

Amy Faivre

Ian Gilman

Laura Gough

Juliana Harden

Janet Mansaray

Renee Petipas

Cierra Sullivan

Jess Szetela

Mariana Vazquez

ROOT & SHOOT RCN

SPONSORED BYSTANDER

INTERVENTION

WORKSHOPS OFFERED IN

MAY FOR BOTANY 2024

ATTENDEES

Many BSA members took advantage of free

Bystander Intervention Training workshops

last spring in advance of the Botany 2023

conference in Boise. The ROOT & SHOOT

RCN is offering these workshops again

in 2024 for members of the RCN who are

background image

PSB 70 (1) 2024

91

planning to attend Botany 2024 in Grand

Rapids, MI. The workshops are again provided

by the ADVANCEGeo partnership (https://

serc.carleton.edu/advancegeo/workshops/

topics.html). This year’s spring workshop is

scheduled for May 22 from 11 a.m. to 2 p.m.

EDT.

The RCN is also offering an “advanced” 1-hour

practice-heavy “refresher” version of the

training for those who attended the workshop

last year, or who are looking for more practice.

This refresher workshop will be held on May

28 from 3 to 4 p.m. EDT.

Learn more about these workshops and sign

up to participate at:  https://rootandshoot.

org/2024-bystander-intervention-workshops/

PLANTINGSCIENCE

SPRING 2024

SESSION UPDATE

The Spring 2024 session of PlantingScience is

in full swing right now. We were so pleased

with the enrollment this session—we had

20 teachers apply to participate!  This was

especially positive because about half of

these teachers were past participants and

the other half were new to us. In total, the

session has engaged 540 students across

147 inquiry projects, comprising a nice mix

of middle- and high-school students, and

even one undergraduate class in India!  The

topics studied in this session include seed

germination, tissue structure and behavior,

photosynthesis, C-fern development, and

genetics. Many thanks to our wonderful

cohort of liaisons this session, and the 102

mentors who have stepped up to work with

our student teams!

PlantingScience also received a pleasant

surprise when we learned we had been

featured in an article with our service provider

and website host, HubZero. Leading up to the

Digging Deeper F2 research initiative during

our Fall 2023 session, the PlantingScience

team and HubZero worked together to update

and improve our platform. Read more about

these updates at http://bit.ly/pshzfeature.

We are now looking ahead to the continuation

of the Digging Deeper F2 research with the

Fall 2024 cohort. Applications for the Fellows

opportunity for early career scientists have

closed and we are making selections, which

will be announced soon!  We’re pleased to

report that our mentor pool has increased by

over 100 mentors since August of 2023, but

we anticipate another big session this coming

fall.  If you or anyone you know is interested,

please join us! Visit https://plantingscience.

org/getinvolved/mentor to learn more.

background image

PSB 70 (1) 2024

92

Curious about the Conference Logo?

A lot of thought goes into the Botany Conference logo each year. The logo for Botany 2024 – Resil-

ience in a Changing World was informed by our desire to select plants that are native to Michigan and

exemplify resilience in various ways.

Arnica cordifolia Hook. -  Heartleaf Arnica:

The showcased plant is Arnica cordifolia Hook., the heartleaf arnica. A member of the Asteraceae, this

perennial species is endangered in Michigan but thrives across western and northern North America.

Known for its adaptability to both shade and sun, moderate fire resistance, and a potential need for

disturbance in order to be successful, the heartleaf arnica has a long history of medicinal use.

Zizia aptera (A.Gray) Fernald - Prairie Golden Alexanders:

The plant with yellow-flowers in flat-topped umbels is Zizia aptera (A.Gray) Fernald, also known as

Prairie golden alexanders, Heartleaf golden alexanders, or Meadow zizia. While this species in the

Apiaceae is threatened at the state level, it maintains globally security as a short-lived perennial, rely-

ing on re-seeding for its persistence.

Cypripedium parviflorum Salisb. - Yellow Lady’s Slipper:

The yellow lady’s slipper, Cypripedium parviflorum Salisb., is a familiar orchid that is widespread

across North America with several varieties commonly recognized. The yellow lady’s slipper is glob-

ally secure with a conservation status of least-concern.

Woodwardia areolata (L.) T. Moore - Netted Chain Fern:

In the background of the logo is the beautiful Woodwardia areolata (L.) T. Moore (= Lorinseria areo-

lata (L.) C.Presl), the netted chain fern. Native to the southeastern United States, this globally secure

member of the Blechnaceae ranges northward along the eastern coast and has a historical presence

in Michigan, last seen in Van Buren county (southwest of Grand Rapids) in 1880. Although it hasn’t

been seen in Michigan for over a century, it is presumed to be present, so keep a keen eye while enjoy-

ing any conference field trips—and document any sightings with photos—as the rediscovery of this

species during our conference botanizing would be a remarkable event.

Conference logo designed by Melanie Link-Perez and Johanne Stogran

background image

PSB 70 (1) 2024

93

93

STUDENT SECTION

By Eli Hartung and Josh Felton

BSA Student Representatives

We were excited to lead a Botany360 webinar

earlier this year on “How to be a Successful

BSA Student Representative.” If you missed it

and would like to access the slides from the

presentation, go to https://bit.ly/40IrhdB,

and be sure to email us at feltonjosh@icloud.

com anelishartung@gmail.com if you have

any questions. (For more information on the

Botany360 series, see the Membership article

in this issue.)

Botany360 Webinar:

How to Be a Successful BSA

Student Representative

ROUNDUP OF STUDENT

OPPORTUNITIES

It’s that time of the semester where you start to

compile every opportunity you want to apply

to into one list. To make this easier for you,

we have compiled a list of all the opportunities

we know about. Even if the deadline of

this application cycle is passed for this

academic year, make sure to check by the

end of this year for the next application

cycle and expect that the deadline for the

next year will be around that date. We

have divided these into categories for easy

browsing that include the following: BSA

Grants and Awards, Fellowship, Research

Awards, Broader Impacts, Short Courses and

Workshops, Job Hunting, and ways that may

help you to travel to Botany 2024. The list is

long! So we’ve provided a link that you can

use to access funding opportunities: http://

tinyurl.com/2024bsaopportunities.

Of  course, all the grants and awards

information will also be announced and

reminded via the BSA social media, so make

sure to follow us on Facebook (Botanical

Society of America), X (@Botanical_),

BlueSky (@botsocamerica.bsky.social) and

Instagram (@botanicalsocietyofamerica) and

stay updated! Also feel free to reach out to your

background image

PSB 70 (1) 2024

94

BSA student representatives Josh (feltonjosh@

icloud.com) and Eli (elishartung@gmail.

com) if you have questions about the listed

opportunities, or any questions or comments

about BSA.

PAPERS TO READ FOR

FUTURE LEADERS

As we continue in our careers, we hope to

see the academic culture shift to be healthier

and more inclusive. Below are a few papers

we think you should read if you hope to lead.

We hope to continue to recommend “Papers

to Read for Future Leaders” to BSA student

members, so if you have papers you would like

us to include, please share it with us via this

Google form: https://tinyurl.com/y5dp8r4m!

Previously shared papers include:

• Allen, K., J. Reardon, Y. Lu, et al.

2022. Towards improving peer review:

Crowd-sourced insights from Twit-

ter.  Journal of University Teaching &

Learning Practice 19.

• Ålund, M., N. Emery, B. J. Jarrett, et

al. 2020. Academic ecosystems must

evolve to support a sustainable post-

doc workforce. Nature Ecology & Evo-

lution 13: 1-5.

• Asai, D. 2020. Race Matters. Cell 181:

754-757.

• Baker, K., M. P. Eichhorn, and M. Grif-

fiths. 2019. Decolonizing field ecology.

Biotropica 51: 288–292.

• Brown, N., and J. Leigh. 2020. Able-

ism in Academia: Theorising expe-

riences of disabilities and chronic

illnesses in higher education. Lon-

don: UCL Press. DOI: https://doi.

org/10.14324/111.9781787354975.

• Caviglia-Harris, J., K. E. Hodges, B.

Helmuth, et al. 2021. The six dimen-

sions of collective leadership that ad-

vance sustainability objectives: rethin-

king what it means to be an academic

leader. Ecology and Society 26: 9.

• Chaudhury, A., and S. Colla. 2021.

Next steps on dismantling discrimina-

tion: Lessons from ecology and con-

servation science. Conservation Let-

ters 14: e12774.

• Chaudhary, V. B., and A. A. Berhe.

2020. Ten simple rules for building

an antiracist lab. PLoS Computational

Biology 16: e1008210.

• Claire Demery, A. J., and M. A. Pip-

kin. 2021. Safe fieldwork strategies for

at-risk individuals, their supervisors

and institutions. Nature Ecology &

Evolution 5: 5-9.

• Cooper, K. M., A. J. J. Auerbach, J. D.

Bader, et al. 2020. Fourteen recom-

mendations to create a more inclusive

environment for LGBTQ+ individuals

in academic biology. CBE - Life Sci-

ence Education 19:es6: 1-18.

• Cronin, M. R., S. H. Alonzo, S. K.

Adamczak, et al. 2021. Anti-racist

interventions to transform ecology,

evolution and conservation biology

departments. Nature Ecology & Evolu-

tion 5: 1213–1223.

background image

PSB 70 (1) 2024

95

• Dewa, C. S., K. Nieuwenhuijsen, K. J.

Holmes‐Sullivan, et al. 2020. Introduc-

ing plant biology graduate students to

a culture of mental well‐being. Plant

Direct 4: e00211.

• Ellis, E. C., N. Gauthier, K. K. Gol-

dewijk, et al. 2021. People have shaped

most of terrestrial nature for at least

12,000 years. PNAS 118: e2023483118.

• Emery, N. C., E. K. Bledsoe, A. O. Hal-

sey, et al. 2020. Cultivating inclusive

instructional and research environ-

ments in ecology and evolutionary

science.  Ecology and Evolution 11:

1480-1491.

• Gewin, V. 2021. How to include Indi-

genous researchers and their know-

ledge. Nature 589: 315-317.

• Gin, L. E., N. J. Wiesenthal, I. Ferreira,

and K. M. Cooper. 2021. PhDepressi-

on: Examining how graduate research

and teaching affect depression in life

sciences PhD students. CBE—Life

Sciences Education 20.

• Hamilton, P. R., J. A. Hulme, and E. D.

Harrison. 2020. Experiences of higher

education for students with chronic il-

lnesses. Disability & Society 38: 21-46.

• Herz, N., O. Dan, N. Censor, et al.

2020. Opinion: Authors overestimate

their contribution to scientific work,

demonstrating a strong bias. PNAS

USA 117: 6282–6285.

• Huyck, J. J., K. L. Anbuhl, B. N. Bu-

ran, et al. 2021. Supporting Equity

and Inclusion of Deaf and Hard-of-

Hearing Individuals in Professional

Organizations.  Frontiers in Educati-

on  DOI: https://doi.org/10.3389/fe-

duc.2021.755457.

• MacKenzie, C. M., S. Kuebbing, R.

S. Barak, et al. 2019. We do not want

to “cure plant blindness” we want to

grow plant love. Plants, People, Planet

1: 139-141.

• Maestre, F. T. 2019. Ten simple rules

towards healthier research labs. PLoS

Computational Biology 15: e1006914.

• McDaniel, S. F. 2021. Bryophytes are

not early diverging land plants. New

Phytologist 230: 1300-1304.

• McGill, B. M., M. J. Foster, A. N. Pru-

itt, et al. 2021. You are welcome here:

A practical guide to diversity, equi-

ty, and inclusion for undergraduates

embarking on an ecological research

experience. Ecology and Evolution 11:

3636-3645.

• Nocco, M. A., B. M. McGill, C. M.

MacKenzie, et al. 2021. Mentorship,

equity, and research productivity: les-

sons from a pandemic. Biological Con-

servation 255: 108966.

• Parsley, K. M. 2020. Plant awareness

disparity: A case for renaming plant

blindness.  Plants, People, Planet 2:

598-601.

• Poodry, C. A., and D. Asai. 2018.

Questioning Assumptions. CBE - Life

Sciences Education 17: es7, 1-4.

background image

PSB 70 (1) 2024

96

• Ramírez-Castañeda, V., E. P. Westeen,

J. Frederick, et al. 2022. A set of prin-

ciples and practical suggestions for

equitable fieldwork in biology. Pro-

ceedings of the National Academy of

Sciences 119: e2122667119.

• Schell, C. J., C. Guy, D. S. Shelton, et al.

2020. Recreating Wakanda by promo-

ting Black excellence in ecology and

evolution. Nature Ecology & Evolution

4: 1285-1287.

• Simoneschi, D. 2021. We need to im-

prove the welfare of life science traine-

es. PNAS 118: e2024143118.

• Tilghman, S., B. Alberts, D. Colón-

Ramos et al. 2021. Concrete steps

to diversify the scientific workforce.

Science 372: 133–135.

• Tseng, M., R. W. El-Sabaawi, M. B.

Kantar, et al. Strategies and support

for Black, Indigenous, and people of

colour in ecology and evolutionary

biology. Nature Ecology & Evolution 4:

1288–1290.

• Woolston, C. 2022. PhD students face

cash crisis with wages that don’t cover

living costs. Nature 605: 775-777.

background image

PSB 70 (1) 2024

97

97

ANNOUNCEMENTS

IN MEMORIAM

NELS RONALD LERSTEN

(1932–2023)

To lose a friend and colleague like Nels is never

easy. However, good memories have a way of

lessening the loss. That is how I remember

Nels. He joined the Iowa State University

Botany & Plant Pathology Department as an

assistant professor in the early 1960s after

obtaining his PhD at UC-Berkeley under the

mentorship of Professor Adriance S. Foster, a

renowned, published plant anatomist, and a

past president (1954) of BSA. Nels was hired

to eventually replace Professor John E. Sass,

famed author of Botanical Microtechnique

I met Nels when I joined the Department

as a two-year postdoctoral fellow, and then

became a faculty member in 1966.  We

quickly became friends and launched into

joint research projects related to sporogenesis,

bacterial leaf nodules, crystals, and other

topics as well. We jointly published our first of

17 papers (1966–2011) together on Riccardia

pinguis in AJB in 1966.

Nels was a fountain of information, exacting

in his research work and teaching, and an

excellent writer that made him a perfect fit to

be Editor-in-Chief of AJB (1990–1994). Our

offices and labs were next to each other, and

our graduate students took our classes and

socialized together. He and I went camping

and on field trips, and we played many games

of hand- and racquet-ball. He was usually the

better player! We and our graduate students

attended many BSA meetings, and we even

roomed together at a few of them. Above all,

Nels was a kind, compassionate, supportive,

and a “forever” friend. In retirement we had

lunch together periodically, reminiscing about

our earlier lives, joking about funny instances

we shared, and yes, talking about our past

research endeavors. Now he is at peace with

his wife, and he will stay in my thoughts (and

those of many others) until I see him again.

A friend and colleague, Harry T. (Jack) Horner,

University Professor Emeritus

background image

PSB 70 (1) 2024

98

Below is an excerpt from Dr. Lersten’s official

obituary:

Dr. Nels Ronald Lersten passed away on

Thursday, December 28, 2023, at the age of

91. He took his last breath at MorningStar

Assisted Living and Memory Care in West

Des Moines, IA. He had family bedside upon

his death.

Nels was born in the southside of Chicago, Ill

on August 6, 1932. He was the first born of

Swedish immigrants Anders Einar and Elvira

Maria (Bloom) Lersten. He grew up in and

around the Swedish community of Chicago.

He graduated from Harper High School in

Chicago in 1949 at the age of 16. Nels attended

the local “trolley-car” junior college until he

turned 18 years old and joined the United

States Coast Guard. He spent 3 years on active

duty, first being stationed in Japan patrolling

United States interests in the Pacific Ocean. He

was then selected to become a sonar specialist

and receive additional training in San Diego,

CA. After this training he was transferred to

the Aleutian Islands in Alaska, where he was

involved in chasing down Russian submarines.

Upon fulfilling his Coast Guard commitment,

he returned to Chicago and enrolled at the

University of Chicago where he earned his

undergraduate degree (BS) in Biology and his

master’s degree in Botany. Nels continued his

education by earning his PhD in Botany at the

University of California – Berkeley in 1963.

His first job offer was at Iowa State University,

Ames, Iowa, where he accepted an assistant

teaching position in the Botany Department.

Nels told everyone he was only staying for a

couple of years, but as it turned out, he became

a full professor at ISU and taught for 35 years

until retiring in 1998.

Nels met Patricia Brady in 1955 while out

dancing in Chicago and they married on June

14, 1958. They were married for 61 years until

Pat’s death in 2019. The couple was blessed

with 3 children (Sam, Andrew and Julie)

during the marriage. Pat was a devoted spouse

and supported Nels throughout his career and

they made a strong and loving team together.

Nels enjoyed a wonderful education career,

which included becoming one of the first users

of the electron microscope for research at ISU,

taking the family to London, England for his

one- year sabbatical at the Royal Kew Gardens

and speaking at many Botany Conferences

around North America and Europe. He

became the editor of the Proceedings of the

Iowa Academy of Science and was the editor-in-

chief of the American Journal of Botany (1983-

87) [Ed note: 1990–1994]. He also held various

leadership roles within the Botanical Society

of America and earned their prestigious Merit

Award. Nels published over 120 articles and

authored several books. In 2008, he published

“Flowering Plant Embryology,” which was his

most read book and continues to be used today

by Colleges and Universities for their Botany

curriculum around the country. His children

were always more impressed that he also wrote

the section entitled “LEAF” in the World Book

Encyclopedia. Upon his retirement in 1998,

Nels earned the title of Professor Emeritus

from Iowa State University. He was considered

one of the world’s pre-eminent plant anatomy

experts at the time.

Nels loved the outdoors. He was always at

his happiest when exploring nature. Travel

was important to Nels as he would take the

family on camping trips in their VW Camper

Van for the last 6 weeks of every summer as

the kids were growing up. He would always

plan the trips around one of his speaking

background image

PSB 70 (1) 2024

99

engagements, alternating throughout the

Western and Eastern USA and Canada. Many

great memories were created from these trips.

Nels was known to stop in remote areas, grab

his collection bag and trek into the forest for

hours at a time. He would eventually return

and emerge with a big smile, sharing tales of

his new plant findings with the family, who

were still either reading or sleeping by the side

of the road in their VW camper van.

He was a kind and gentle soul who

volunteered for many years at Beloit of Ames.

He helped support multiple programs there

that impacted troubled youth. Iowa Governor

Terry Branstad honored him for his extensive

volunteering efforts. Nels was a passionate

game player and loved to play card games,

poker, Scrabble and Cribbage. He once won

the title of best Cribbage player in Iowa at the

Iowa State Fair. He also loved to play pool and

won the Windsor Oaks championship several

times. Nels loved to use big words in his

conversations or unique words that his family

didn’t know the meaning of—he would say

to look it up, and of course, it was the perfect

word to use. Nels loved to spend time walking

in nature, he would walk twice a day at local

parks in Ames even when he was in his 90s.

background image

PSB 70 (1) 2024

100

100

BOOK REVIEWS

Botany of the Kitchen Garden: The Science and Horticulture of Our Favourite Crops

Chinese Cymbidium Orchid, A Gentleman of Noble Virtue

Flora of Oregon Vol 2

The Ghost Forest

House Plants

Hydrogen Sulfide in Plant Biology

In the Herbarium

The Man Who Organized Nature

Parasitic Weeds of Jordan

Solomon Described Plants

Botany of the Kitchen

Garden: The Science and

Horticulture of Our Favou-

rite Crops

Hélèna Dove

2023. ISBN: 978-1-84246-783-1

US$30 (Hardcover); 160 pp.

Kew Publishing Royal Botanical

Gardens, Kew, Richmond, UK

Hélèna Dove’s Botany of the Kitchen: The

Science and Horticulture of Our Favourite

Crops  will delight readers with its botanical

and horticultural descriptions of some of our

most commonly grown and consumed fruits

and vegetables. For those who are not in the

know, she reminds us that the plants we eat

and grow in our gardens “have wild ancestors,

some of which can still be found today and

some, sadly, which can’t” (p. 10). Through

cultivation and breeding, many of these wild

plants have developed into the cultivars we

now know so well, bred for traits such as

sweetness or seedlessness. In many cases,

Dove notes, some plants’ natural defenses

have been bred out of them. Dove hopes it

might be possible to breed this lost resilience

back into the plants we grow if we learn about

how their wild relatives thrive in their natural

environments. This knowledge can lend itself

to establishing healthier ecosystems with

growers depending less on chemicals to grow

hardy and healthy crops (p. 10).
There are 52 plant entries in Botany, each

offering a brief summary of the plants’

botanical and cultivation history, physiology,

growing habits, and their varieties. In each

entry, Dove drives home the importance

of learning the horticulture and science of

the vegetables and fruits we love to grow

and consume. She encourages readers to

understand how a plant’s botanical history

bears on its botanical present, and how this

knowledge can be used to ensure its future.

Knowing the science behind why plants

behave and adapt as they do can encourage the

use of horticultural techniques that will grow

the sweetest fruit, graft the best tomatoes, or

produce the richest compost.

background image

PSB 70 (1) 2024

101

Botany encourages gardeners to use botanical

and horticultural language to talk about

the crops we grow: “In most vegetable and

gardening texts, vegetables are referred to by

their common names—carrots, apples and

tomatoes, for example” (p. 16). Scientific

names can often paint a fuller picture of the

vegetables we grow. The carrot, for instance,

is also called an “umbellifer,” denoting that it

belongs to the Umbelliferae family. The flowers

of the plants in this family (parsley, parsnips,

and carrots) share the same umbrella shape—

an umbel. It is a biennial tap root with origins

in Central Asia and the Middle East, and it

was not always orange. This eastern carrot

was once white, and “a sudden mutation in

Afghanistan,” it was thought, “led to purple

carrots, starting with a white inner core and

purple skin,” which was “then bred into a fully

purple carrot” (p. 82). The orange carrot we

know now, the western carrot, results from

breeding the wild white carrot into a carrot

with yellow flesh. Over time, breeding created

the sweet orange carrot, now an important

economic crop.
Each entry also comes replete with distinct

illustrations that aid the reader in identifying

various plant parts. The tiny white lines we see

on carrots, for instance, are their lateral root

scars. The husk that protects the tomatillo is

its dried calyx. We eat the petioles of the celery

and the hypocotyl of the radish. We scoop out

the mesocarp of the squash to puree it for soup.

The tiny hair-like strands sometimes spied on

the raspberry are the remains of the pistil, the

female organs of its flower. The drawings show

how a plant’s flower becomes its fruit and how

to recognize what remains of a plant’s stalk,

stem, and flower. Botany also includes some

color photographs, which add color to the

green and black ink that dons the pages of the

book. Together, both are tools that encourage

gardeners, from novice to expert, to become

more comfortable with using the language of

botany to describe the plants they grow and

the environs they inhabit.
Interspersed throughout Botany are ten short,

two-page primers on various horticultural

techniques. Each title begins with “The

botany of…” and focuses on how, for example,

to sow and save seeds, how to propagate and

graft plants, or how to force crops or thin

fruit trees. In “The botany of composting,” for

example, gardeners learn the science behind

how their compost piles work. As saprophytic

consumers, woodlice and brandling worms

are the first to show up in the heap. They feed

solely on dead plant material, decomposing

leaves and branches to make food for the

secondary consumers. These smaller micro-

organisms (bacteria, fungi and the nonmotile

actinomycetes) make a meal from the waste of

the woodlice and worms, breaking this down

into even smaller bits in a process that releases

inorganic salts, such as potassium sulphate

and ammonium nitrate, to name a few.
Botany  reminds of us of the importance of

knowing intimately the origins, physiology,

structure, genetics, and ecology of the

vegetables and fruits we grow in our gardens.

For those of you who have a strong natural

sense of the science of plants, Dove’s Botany

will not only shore up your intuitive sense

of botany and horticulture but also teach

you how to grow vigorous crops, prune and

train your plants, and produce cultivars that

are resilient enough to stave off pests. At 6.5

by 8.75 inches, Botany will fit snugly among

the gardener’s cookbooks and is a welcome

addition to the kitchen.

--Rachel Burgess, Independent Scholar, Roch-

ester, NY 14606; rachel.burgess.ph.d@gmail.

com

background image

PSB 70 (1) 2024

102

Chinese Cymbidium

Orchid, A Gentleman of

Noble Virtue

Hew Choy Sin and Wong Yik

Suan.

2024; ISBN 979811263378

(ebook), 979811263385 (ebook

other), 979811263361 (hard-

cover) $78; 159 pp.

World Scientific Publishing Co. Pte., Singapore

Over the years, I saw Chinese cymbidiums,

including an award-winning plant at a show

in Chongqing, China that was so valuable that

it was under 24-hour armed guard. I also saw

their paintings (both recent and old, original

and copies) in the United States, Singapore,

Taiwan, and China. I always wanted to learn

more about them. Now I can do that by

reading this book.
Lan (Chinese cymbidiums) had an appeal

and meaning symbolizing integrity, modesty,

elegance, purity, and nobility in ancient China.

Confucius referred to lan as “Gentleman of

Noble Virtue.” An early description of Chinese

orchids or cymbidiums was in 900 AD in Yong

Lan (p. 8). Another mention of lan in China

was as early as the spring of 770-476 BC (p. 3).

Two other Chinese classic texts that mention

lan are:

• Shi-Jing (The Classics of Poetry or The

Book of Songs), the earliest collection

of Chinese poetry, which dates to 11

th-

7th century BC.

• Li-Ji (The book of Rites), which was

published in 206 BC–25 AD. It refers

to ni, which is actually Spiranthes si-

nensis, as well as chien and lan, both

of which were loose references to fra-

grant plants.

The use of ni, chien, and lan in Li-Ji created

confusion regarding the dates in which

Cymbidiums cultivation started in China.

This book refers to the confusion and explains

the reasons for it. There is much more to

learn about the history of lan and Cymbidium

orchids in China from the well-written and

extensively referenced first chapter (also see

Chen and Tang, 1982).

Appreciation and

cultivation of orchids in China (Hew, 2001)

have a long history. Their appreciation was

influenced  by  Confucianism,  Buddhism  and

Taoism. They became part of the culture

and subjects for writers, poets, painters,

and calligraphers as far back as 1200–1700.

Interesting details and information about

the cultural history of Cymbidium in China

open the second chapter, which includes

translations of ancient poems.

A good part of the second chapter is devoted

to details about ancient Chinese paintings of

cymbidiums, some of which date to about

1100 AD. A number of reproductions are

included in the book. Most are printed

well, but two to three are a bit dark. Lists of

painters, biographies, and even photographs

of sculptures that depict artists are included.

Reading this part of the book is both enjoyable

and instructive, but somewhat slow due to the

inclusion of dates (which is both desirable

and necessary), Chinese characters (which I

skipped), and names (which are unfamiliar).
Calligraphy is often included in Chinese

Cymbidium paintings. Messages conveyed by

the calligraphy are intended to complement

the painting. They can be poems, excerpts

from literature, words of praise, or even

political statements. Paintings of lan on

fans, bottles, embroidery, and even doors

contain calligraphy. Postage stamps issued

in 1988 depict four cymbidiums and include

calligraphy. Examples of paintings that contain

calligraphy are presented and discussed

on pages 44-49 of the second chapter. The

background image

PSB 70 (1) 2024

103

chapter concludes with examples of lan in

Chinese culture, symbolism, and the naming

of girls (mei lan, beautiful lan, is an example).

Altogether, the second chapter provides an

excellent discussion of lan in Chinese culture,

mostly ancient, but also current.
Cymbidium goeringi, C. sinense, C. ensifolium,

C. faberi, and C. kanran are described in the

context of modern taxonomy in the third

chapter. Four of these species were described

and named in accordance with current

taxonomic rules by western taxonomists who

did not assign to three them specific epithets

that celebrate or even bear any relationship

to their ancient Chinese heritage. Only one

name of the four refers to China. Because of

the insensitive naming of these species by

Western taxonomists, the combination in this

book of their Chinese history with modern

taxonomy is good to have.
The type specimen of C. goeringii, the noble

orchid and one of the earliest known Chinese

cymbidiums, was collected in Japan. It is

named for the German-Dutch botanist,

chemist, and plant collector, Phillip Friedrich

Wilhelm Goering (1809–1876) because it was

described by Gustav Reichenbach filius (1823–

1889) in 1852 in Germany. Robert Allen Rolfe

(1885–1921), founder of the Orchid Review in

the UK, the oldest existing orchid magazine,

named C. faberi for the German plant collector

Ernst Faber (1839–1899). This species was

documented as far back as 1796. It bears nine

flowers per inflorescence. Therefore, its old

Chinese name is Nine Children LANS.
Cymbidium sinense (G. Jackson ex H. C.

Andrews) Wildenow and C. ensifolium (L)

Swartz, two species that were popular in

ancient China, are more aptly named despite

being described in the West. The Cold Lan

(because it flowers in a cold season), C.

kanran was named by the “Linnaeus of Japan,”

Tomitaro Makino (1862–1957), in 1902. He

combined  kan (cold in Japanese) and ran

(orchid in Japanese) in its specific epithet.

Another Japanese name of C. kanran is Syun

ran because it also flowers when it is warm

in the spring. It was brought into cultivation

2500 years ago.
Each of these species has several forms and

varieties. Descriptions and illustrations

of these Chinese cymbidiums (pp. 53–86)

complete this chapter and make it a well-

rounded and informative modern taxonomic

and historical treatment.
Chapter 4 deals with the biology of Chinese

cymbidiums and opens by stating that

“...appreciation of Chinese cymbidiums

can be summarized in four words ‘Scent,

Colour, Form, and Charm’” because Chinese

cymbidiums excel in leaf and flower structure,

color, form, beauty, and scent. These

characteristics distinguish them from other

plants, as poetically noted by Wang Gui Xue

in his book, Wang Shi Lan Pu published in
